Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

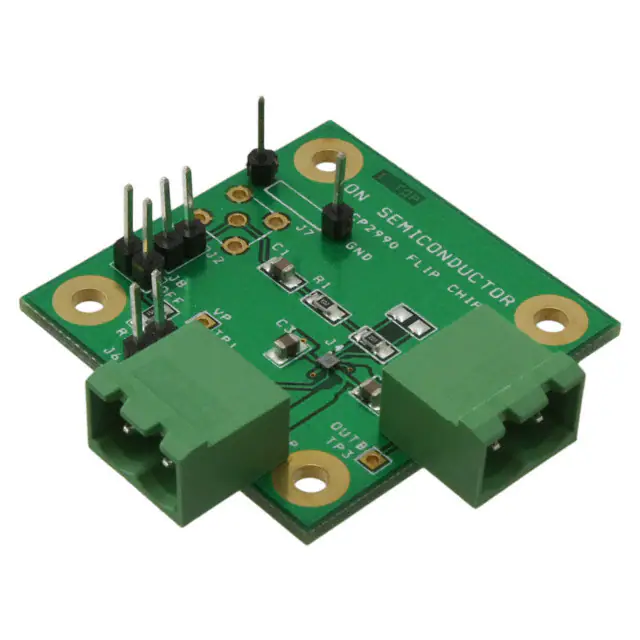

NCP2990FCT2GEVBEVAL BOARD FOR NCP2990 |
2,571 |
|
Datasheet | - | Bulk | Active | Class AB | 1-Channel (Mono) | 1.35W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2990 | Board(s) |
|
ONA10IVGEVBEVAL BOARD FOR ONA10IV |
3,433 |
|
- |
- | Box | Active | Class D | 1-Channel (Mono) | 16W x 1 @ 4Ohm | 5.5V ~ 14V | ONA10IV | Board(s) |
|

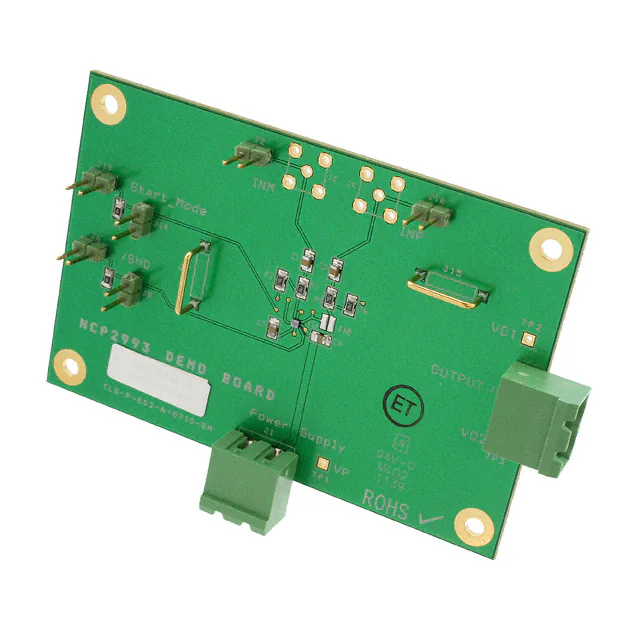

NCP2993FCT2GEVBEVAL BOARD FOR NCP2993 |
4,580 |
|
Datasheet | - | Box | Active | Class AB | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.5V ~ 5.5V | NCP2993 | Board(s) |
|

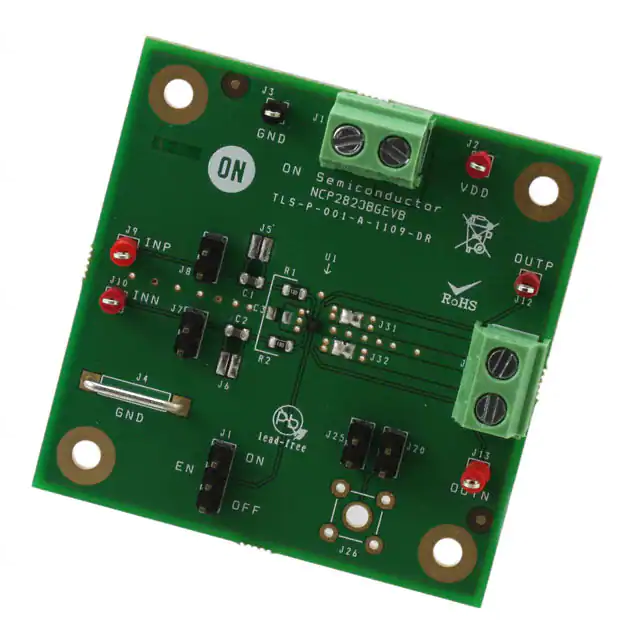

NCP2823BGEVBEVAL BOARD FOR NCP2823B |
1,616 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 3W x 1 @ 4Ohm | 2.5V ~ 5.5V | NCP2823B | Board(s) |
|

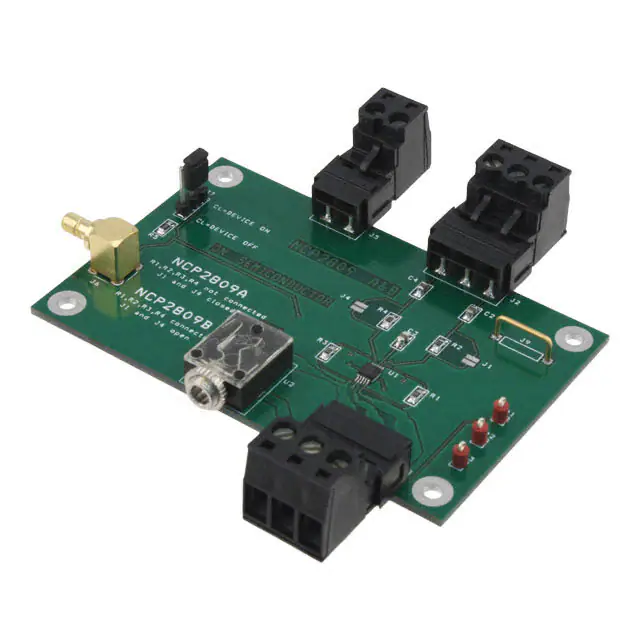

NCP2809BGEVBEVAL BOARD FOR NCP2809 |
1,537 |
|
Datasheet | NOCAP™ | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 135mW x 2 @ 16Ohm | 2.2V ~ 5.5V | NCP2809 | Board(s) |
|

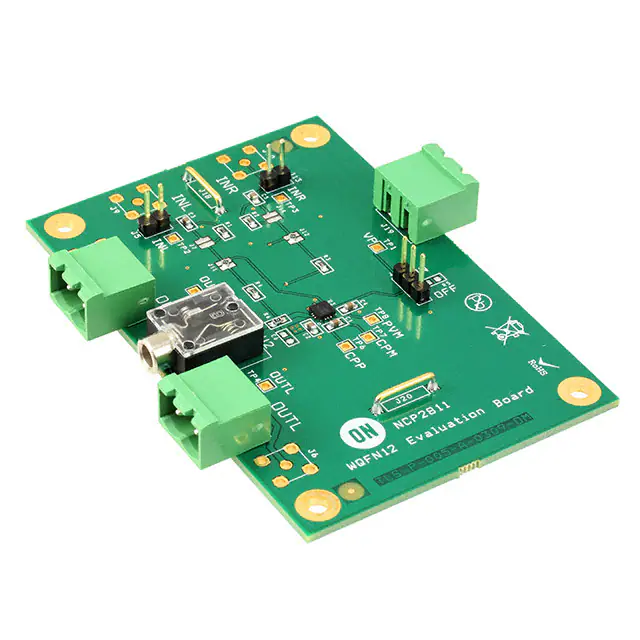

NCP2811AMTTXGEVBEVAL BOARD FOR NCP2811A |
2,318 |
|
Datasheet | NOCAP™ | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 110mW x 2 @ 16Ohm | 2.7V ~ 5V | NCP2811A | Board(s) |
|

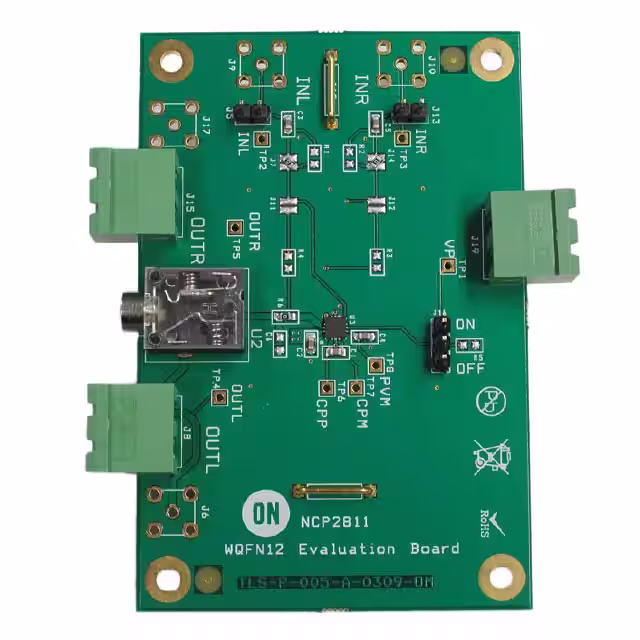

NCP2811BMTTXGEVBEVAL BOARD FOR NCP2811B |
3,351 |
|
Datasheet | NOCAP™ | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 110mW x 2 @ 16Ohm | 2.7V ~ 5V | NCP2811B | Board(s) |
|
NCP2892BEVBEVAL BOARD FOR NCP2892 |
4,804 |
|
- |
- | Bulk | Active | Class AB | 1-Channel (Mono) | 1.3W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2892 | Board(s) |
|
NCP2823AGEVBEVAL BOARD FOR NCP2823A |
1,413 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 1.8W x 1 @ 8Ohm | 2.5V ~ 5.5V | NCP2823A | Board(s) |
|
NCP2890GEVBEVAL BOARD FOR NCP2890 |
3,172 |
|
Datasheet | - | Box | Active | Class AB | 1-Channel (Mono) | 1.08W x 1 @ 8Ohm | 2.2V ~ 5.5V | NCP2890 | Board(s) |
