Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX98365DEVSYS#EVAL BOARD FOR MAX98365D |
4,529 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 17.8W x 1 @ 6Ohm | 3V ~ 14V | MAX98365D | Board(s) |
|
MAX13331EVKIT+EVAL BOARD FOR MAX13331 |
1,309 |
|
Datasheet | DirectDrive® | Box | Active | Class AB | Headphones, 2-Channel (Stereo) | 125mW x 2 @ 32Ohm | 4V ~ 5.5V | MAX13331 | Board(s) |
|
MAX9788EVKIT+EVAL BOARD FOR MAX9788 |
3,085 |
|
Datasheet | - | Box | Active | Class G | 1-Channel (Mono) | 2.4W x 1 @ 8Ohm | 2.7V ~ 5.5V | MAX9788 | Board(s) |
|
MAX9730EVKIT+EVAL BOARD FOR MAX9730 |
2,420 |
|
Datasheet | - | Box | Active | Class G | 1-Channel (Mono) | 2.4W x 1 @ 8Ohm | 2.7V ~ 5.5V | MAX9730 | Board(s) |
|

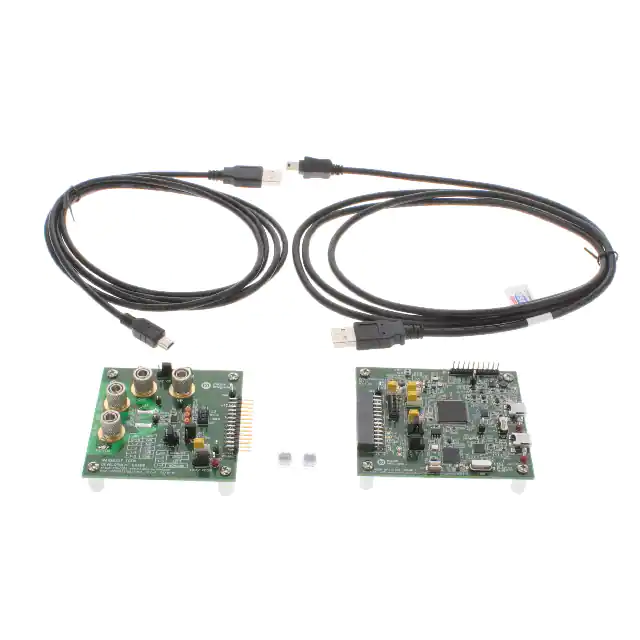

MAX98357EVSYS#TQFNEVAL BOARD FOR MAX98357 |
1,843 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.2W x 1 @ 4Ohm | 2.5V ~ 5.5V | MAX98357 | Board(s) |
|

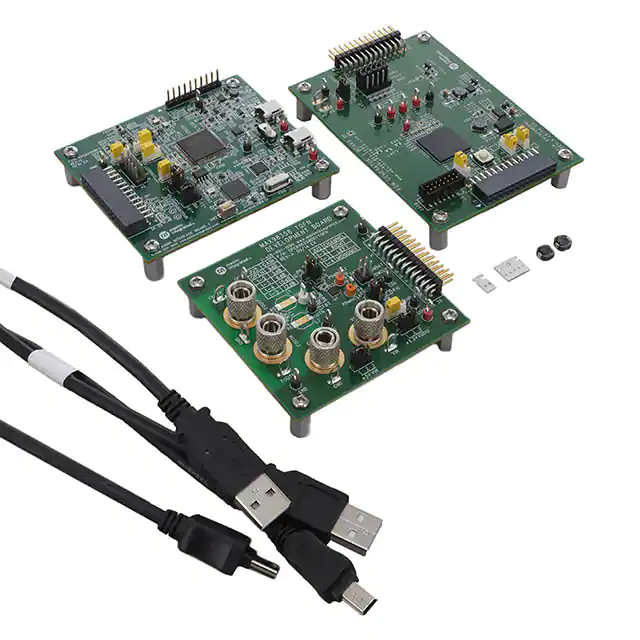

MAX98358EVSYS#TQFNEVAL BOARD FOR MAX98358 |
4,956 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 3.2W x 2 @ 4Ohm | 2.5V ~ 5.5V | MAX98358 | Board(s) |
|
MAX9768EVKIT+EVAL BOARD FOR MAX9768 |
2,253 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 10W x 1 @ 8Ohm | 4.5V ~ 14V | MAX9768 | Board(s) |
|

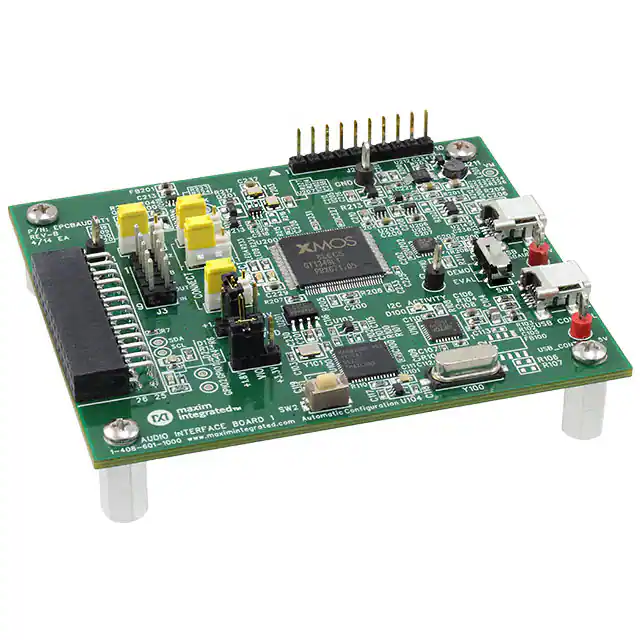

MAX98357EVSYS#WLPEVAL BOARD FOR MAX98357 |
3,398 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.2W x 1 @ 4Ohm | 2.5V ~ 5.5V | MAX98357 | Board(s) |
|
MAX98304EVKIT+EVAL BOARD FOR MAX98304 |
1,231 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 3.2W x 1 @ 4Ohm | 2.5V ~ 5.5V | MAX98304 | Board(s) |
|
MAX98400AEVKIT+EVAL BOARD FOR MAX98400A |
2,959 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 20W x 2 @ 8Ohm | 8V ~ 28V | MAX98400A | Board(s) |
