Analog to Digital Converters (ADCs) Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Data Interface | Input Range | Power (Typ) @ Conditions | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

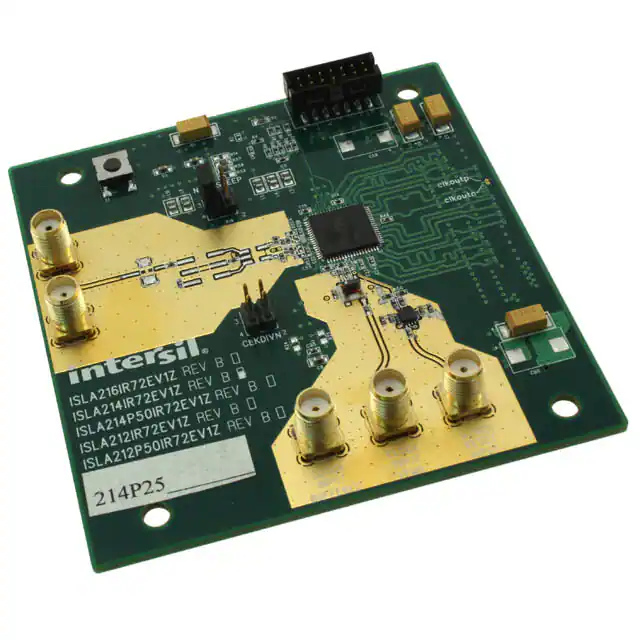

ISLA214IR72EV1ZEVAL BOARD FOR ISLA214IR72 |
3,210 |
|
Datasheet | FemtoCharge™ | Bulk | Active | 1 | 14 | 250M | SPI | - | - | ISLA214IR72 | Board(s) |
|

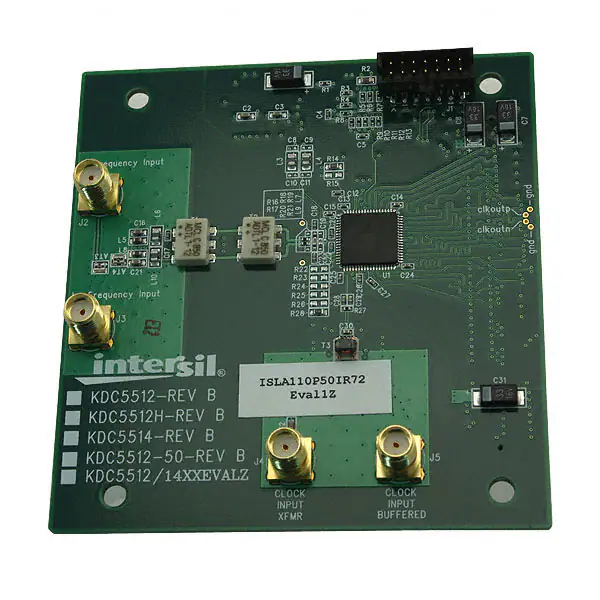

ISLA110P50IR72EV1ZEVAL BOARD FOR ISLA110P50IR72 |
1,884 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 10 | 500M | SPI | 1.45Vpp | 535mW @ 500MSPS | ISLA110P50 | Board(s) |
|

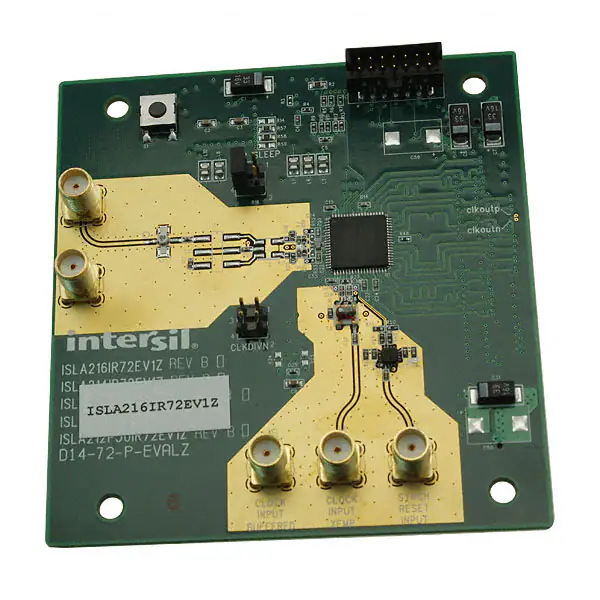

ISLA216IR72EV1ZEVAL BOARD FOR ISLA216IR72 |
1,025 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 16 | 250M | SPI | 2Vpp | 771mW @ 250MSPS | ISLA216P25 | Board(s) |
|
KDC5514EVALZDAUGHTER CARD FOR KAD5514 |
2,475 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 14 | 250M | Parallel | 1.47Vpp | 429mW @ 250MSPS | KAD5514P-25, KMB001 Motherboard | Board(s) |
|

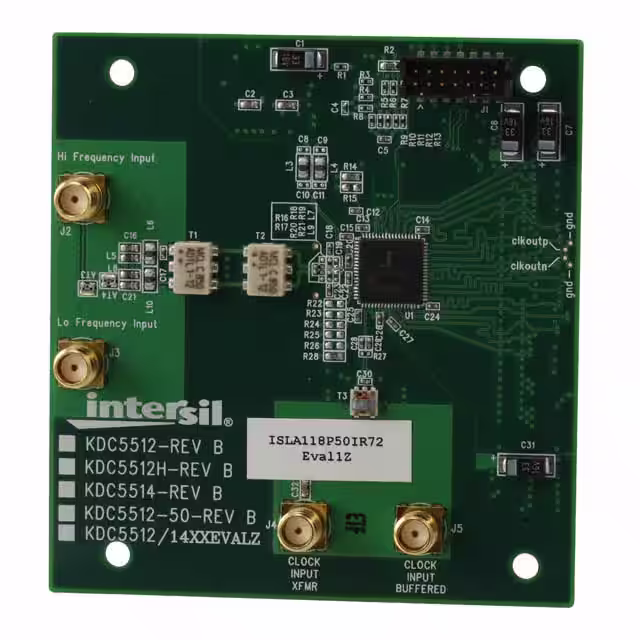

ISLA118P50IR72EV1ZEVAL BOARD FOR ISLA118P50IR74 |
4,952 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 8 | 500M | SPI | 1.45Vpp | 522mW @ 500MSPS | ISLA118P50 | Board(s) |
|

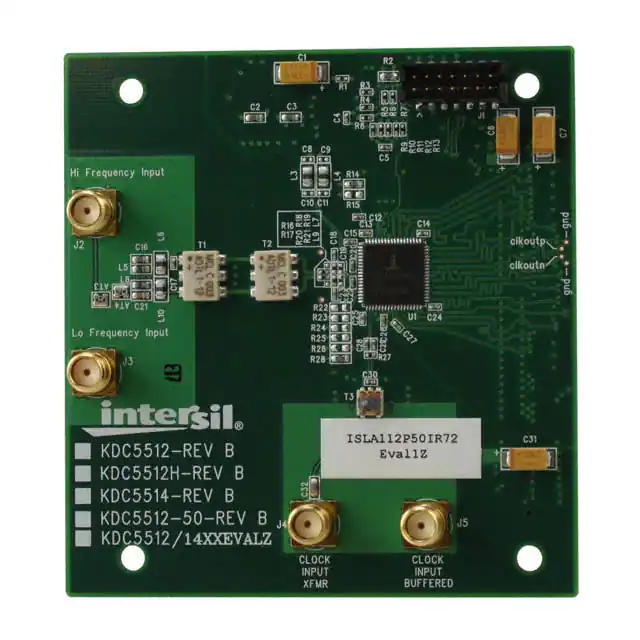

ISLA112P50IR72EV1ZEVAL BOARD FOR ISLA112P50IR73 |
4,169 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 12 | 500M | SPI | 1.45Vpp | 535mW @ 500MSPS | ISLA112P50 | Board(s) |
|

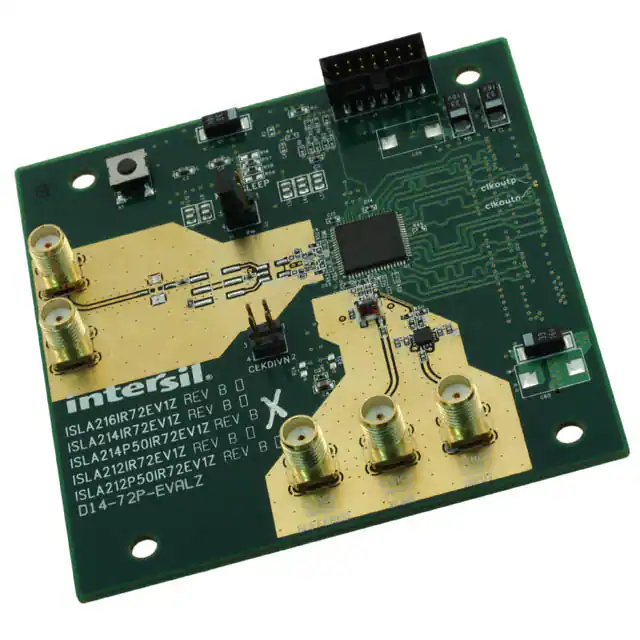

ISLA214P50IR72EV1ZEVAL BOARD FOR ISLA214P50IR72 |
2,181 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 14 | 500M | SPI | 2Vpp | 900mW @ 500MSPS | ISLA214P50 | Board(s) |
|
ISLA112P50/55210EV1ZEVAL DATA ACQUISITION PLATFORM |
4,057 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 12 | 500M | SPI | 200mVpp | - | ISL55210, ISLA112P50 | Board(s) |
|

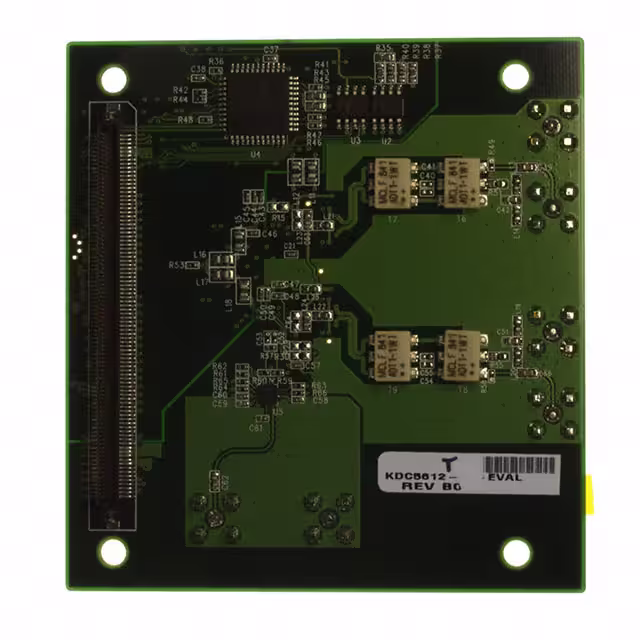

KDC5612EVALDAUGHTER CARD FOR KAD5612 |
1,317 |
|
Datasheet | FemtoCharge™ | Box | Active | 2 | 12 | 250M | Parallel | 1.47Vpp | 429mW @ 250MSPS | KAD5612P-25, KMB001 Motherboard | Board(s) |
|

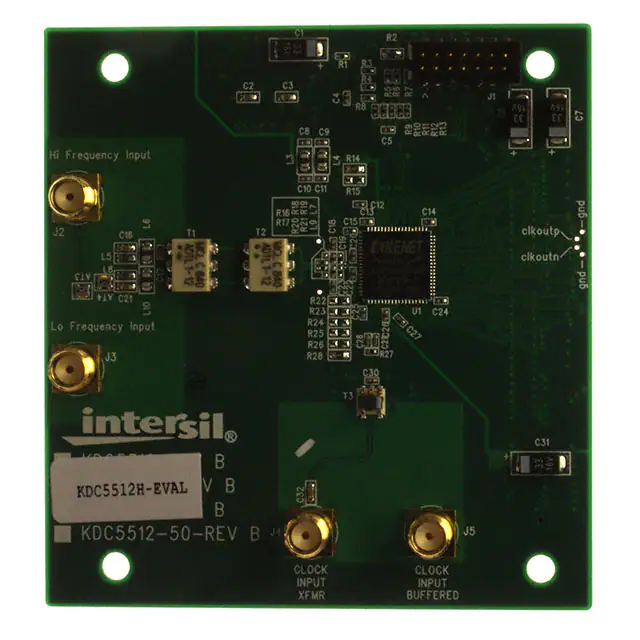

KDC5512HEVALDAUGHTER CARD FOR KAD5512 |
3,140 |
|
Datasheet | FemtoCharge™ | Box | Active | 1 | 12 | 250M | Parallel | 1.47Vpp | 429mW @ 250MSPS | KAD5512HP-25, KMB001 Motherboard | Board(s) |
