Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-9740#150ROTARY ENCODR OPTICAL 360 LPI |
4,442 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 360 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9740#250ROTARY ENCODR OPTICAL 300 LPI |
2,201 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 300 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HEDS-9741#250ROTARY ENCODR OPTICAL 300 LPI |
4,677 |
|
Datasheet | HEDS | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 300 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDT-9001#A00ROTARY ENCODER OPTICAL 500PPR |
3,782 |
|
Datasheet | HEDT | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
HEDT-9100#A00ROTARY ENCODER OPTICAL 500PPR |
3,880 |
|
Datasheet | HEDT | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins | - | - | - |
|
|
HRPG-ASCA#19RROTARY ENCODER OPTICAL 120PPR |
3,054 |
|
Datasheet | HRPG | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-ASCA#51RROTARY ENCODER OPTICAL 120PPR |
2,630 |
|
Datasheet | HRPG | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
AEAT-7000-1GSD0IC ENCODER ABS 13BIT SERIAL |
1,267 |
|
Datasheet | AEAT-7000 | Bulk | Obsolete | Not Verified | Optical | Gray Code (Absolute) | 1024 | 5V | 8mm Open Center | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|

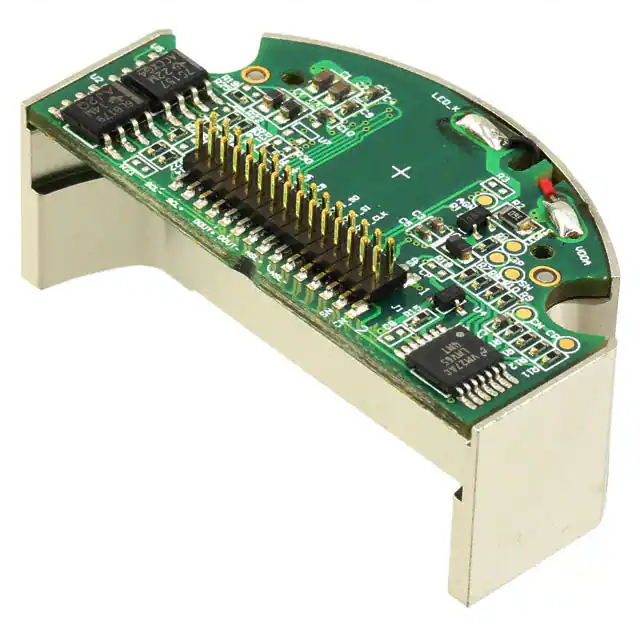

AEAT-9000-1GSH0ROTARY ENCODER OPTICAL 2048PPR |
4,434 |
|
Datasheet | - | Bulk | Obsolete | Not Verified | Optical | Binary (Absolute) | 2048 | 5V | - | No | No | Chassis Mount | - | Pin Strip | - | - | - |
|
|
HEDR-55L1-BY07ROTARY ENCODER OPTICAL 3600PPR |
4,825 |
|
Datasheet | HEDR | Bulk | Obsolete | Not Verified | Optical | Quadrature with Index (Incremental) | 3600 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | - | Terminal Pins | - | - | - |
