Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDT-9340-U00ROTARY ENCODER OPTICAL 2048PPR |
1,102 |
|
Datasheet | AEDT-9340 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
|
AEDT-9340-W00ROTARY ENCODER OPTICAL 2500PPR |
2,958 |
|
Datasheet | AEDT-9340 | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins | - | - | - |
.jpg)
|
AEDR-9930-102AEDR-9930, 397 LPI REF ENC, TR 1 |
4,546 |
|
- |
* | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

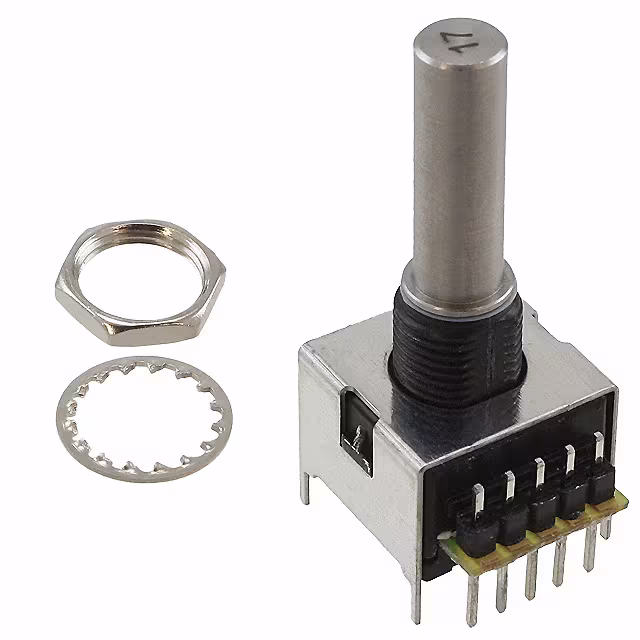

HRPG-ASCA#17RROTARY ENCODER OPTICAL 120PPR |
1,956 |
|
Datasheet | HRPG | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS16#17FROTARY ENCODER OPTICAL 16PPR |
4,349 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS16#54FROTARY ENCODER OPTICAL 16PPR |
2,877 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS32#13FROTARY ENCODER OPTICAL 32PPR |
4,340 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS32#14RROTARY ENCODER OPTICAL 32PPR |
4,069 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS32#53RROTARY ENCODER OPTICAL 32PPR |
2,324 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
HRPG-AS32#56FROTARY ENCODER OPTICAL 32PPR |
2,416 |
|
Datasheet | HRPG | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
