Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E30S4-200-3-T-24ENCODER 30MM 200PPR 12-24VDC |
4,763 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | Totem Pole | 200 | 12V ~ 24V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E30S4-200-3-V-5ENCODER 30MM 200PPR 5VDC |
4,714 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | Voltage | 200 | 5V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

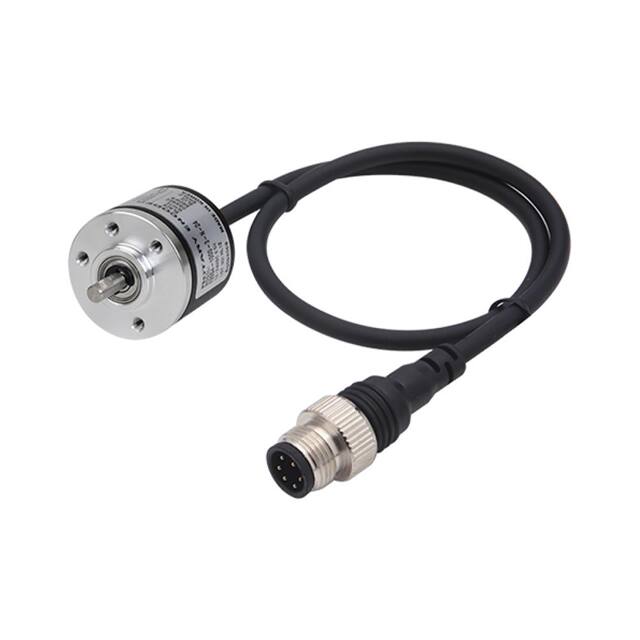

E30S4-360-3-N-24-CENCODER 30MM 360PPR 12-24VDC |
2,086 |
|
Datasheet | E30S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 360 | 12V ~ 24V | 4mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable with Connector | - | - | - |
|
E18S2.5-200-1-N-5-SENCODER 18MM 200PPR 5VDC |
2,982 |
|
Datasheet | E18S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 200 | 5V | 2.5mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40S6-250-3-T-24ENCODER 40MM 250PPR 12-24VDC |
2,677 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | Totem Pole | 250 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E50S8-100-3-N-24ENCODER 50MM 100PPR 12-24VDC |
3,204 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 100 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-400-3-T-24ENCODER 50MM 400PPR 12-24VDC |
1,084 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 400 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-1-2-T-24ENCODER 50MM 1PPR 12-24VDC |
3,765 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 1 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E50S8-250-3-T-5ENCODER 50MM 250PPR 5VDC |
4,883 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 250 | 5V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40S6-1200-3-N-24ENCODER 40MM 1200PPR 12-24VDC |
4,441 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1200 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
