Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

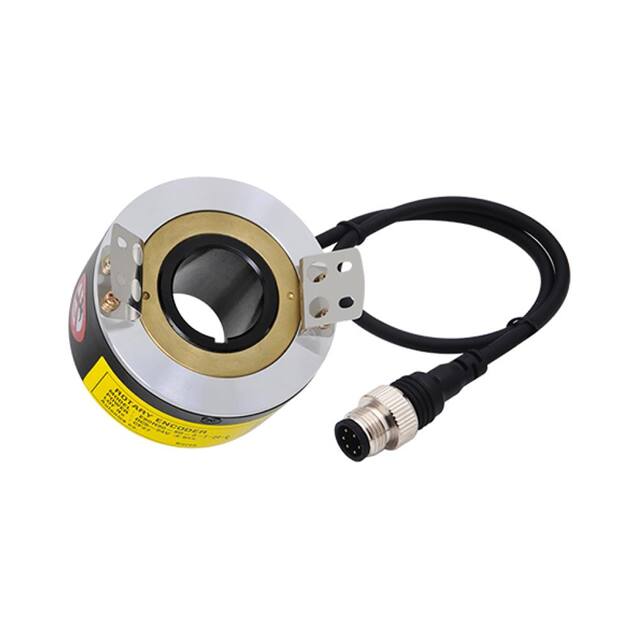

E80H30-60-3-V-24-CENCODER 80MM 60PPR 12-24VDC |
3,086 |
|
Datasheet | E80H | Box | Active | Not Verified | Incremental | Voltage | 60 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable with Connector | - | - | - |
|
ENHP-100-2-L-5Portable Handle Rotary Encoder |
3,112 |
|
Datasheet | ENHP | Retail Package | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 100 | 5V | Thumbwheel | No | No | Chassis Mount | User Selectable | Terminal Block | - | - | - |
|

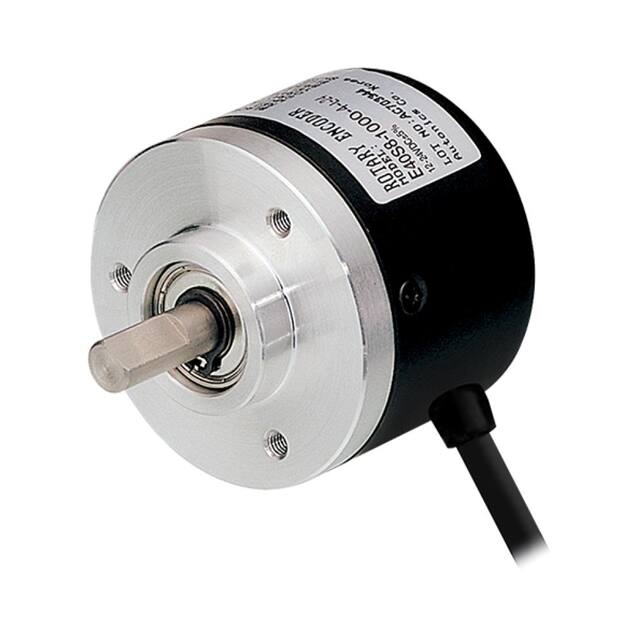

E40S6-2000-3-N-24ENCODER 40MM 2000PPR 12-24VDC |
4,156 |
|
Datasheet | E40 | Box | Active | Not Verified | Incremental | NPN - Open Collector | 2000 | 12V ~ 24V | 6mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40H8-500-3-N-24ENCODER 40MM 500PPR 12-24VDC |
3,229 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 500 | 12V ~ 24V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H6-1024-3-N-5ENCODER 40MM 1024PPR 5VDC |
2,680 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | NPN - Open Collector | 1024 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|

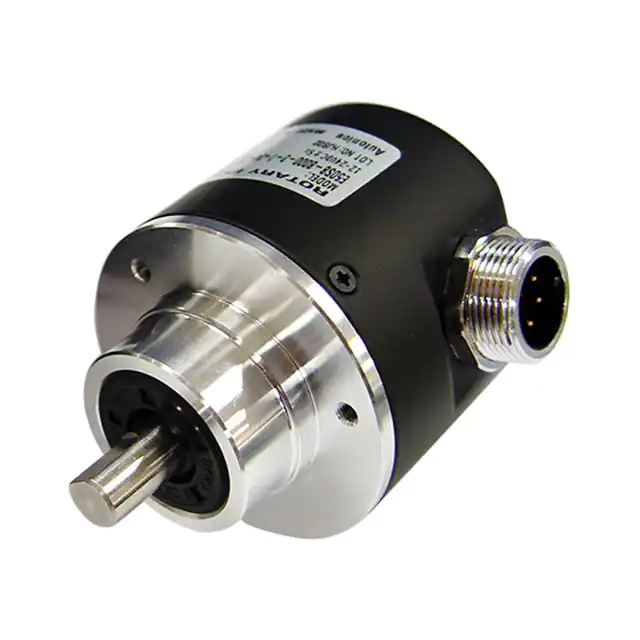

E50S8-1000-3-T-24-CSENCODER 50MM 1000PPR 12-24VDC |
2,711 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | Totem Pole | 1000 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
E50S8-5000-3-N-24ENCODER 50MM 5000PPR 12-24VDC |
4,516 |
|
Datasheet | E50S | Box | Active | Not Verified | Incremental | NPN - Open Collector | 5000 | 12V ~ 24V | 8mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
|
E40H12-1000-6-L-5ENCODER 40MM 1000PPR 5VDC |
1,448 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 1000 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
ENP-111R-012-PENCODER ABSOLUTE 60MM 12-24VDC |
3,539 |
|
Datasheet | ENP | Box | Active | Not Verified | Absolute | BCD (Absolute), PNP - Open Collector | 12 | 12V ~ 24V | 10mm Dia Flatted End | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
|
E40HB8-2048-6-L-5ENCODER 40MM 2048PPR 5VDC |
3,530 |
|
Datasheet | E40H | Box | Active | Not Verified | Incremental | Quadrature Line Driver with Index (Incremental) | 2048 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | - | - | - |
