Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
291V1022FX24ABBROTARY ENCODER OPTICAL 24PPR |
4,804 |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 1M | - | - |
|
291P1022FX24ABBROTARY ENCODER OPTICAL 24PPR |
2,406 |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 24 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 3M | - | - |
|
291P1022FY00ABBROTARY ENCODER OPTICAL 32PPR |
4,191 |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
291P1024SZ00AABROTARY ENCODER OPTICAL 64PPR |
1,905 |
|
Datasheet | 291 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

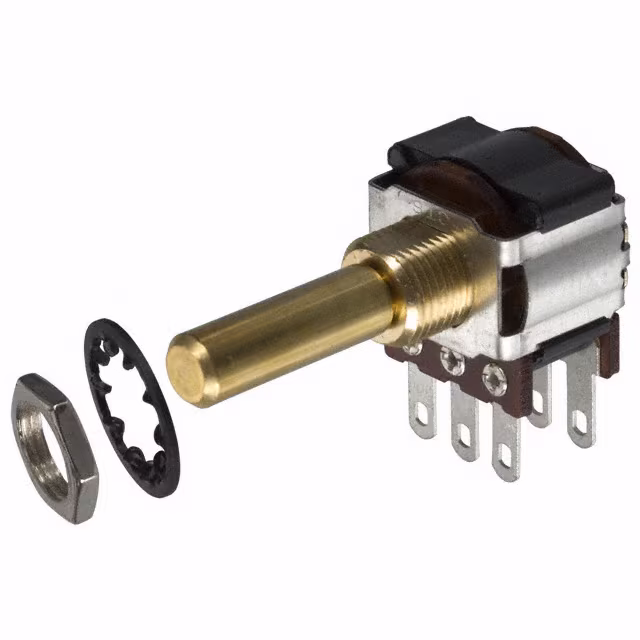

288T232R162A1ROTARY ENCODER MECHANICAL 16PPR |
4,666 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 1/4" Dia Round End | No | No | Panel Mount | Right Angle | Solder Lug | 50K | - | - |
|
|
288XAA5K162A2ROTARY ENCODER MECHANICAL 16PPR |
3,049 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Gray Code (Absolute) | 16 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 50K | - | - |
|
|
288V222R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,430 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
