Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENCOS16D2S65CROTARY ENCODER OPTICAL 16PPR |
429 |
|
Datasheet | ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 16 | 5V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|
ENCOS24D2S65RROTARY ENCODER OPTICAL 24PPR |
1,486 |
|
Datasheet | ENC | Tray | Active | - | Optical | Quadrature, 2-Bit | 24 | 4.75V ~ 5.25V | 5.92mm Dia Knurled End | Yes | Yes | Panel Mount | User Selectable | Connector | 300K | - | - |
|
NSE10DH129ROTARY ENCODER MECHANICAL 12PPR |
2,545 |
|
Datasheet | NSE10 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | - | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 100K | - | - |
|

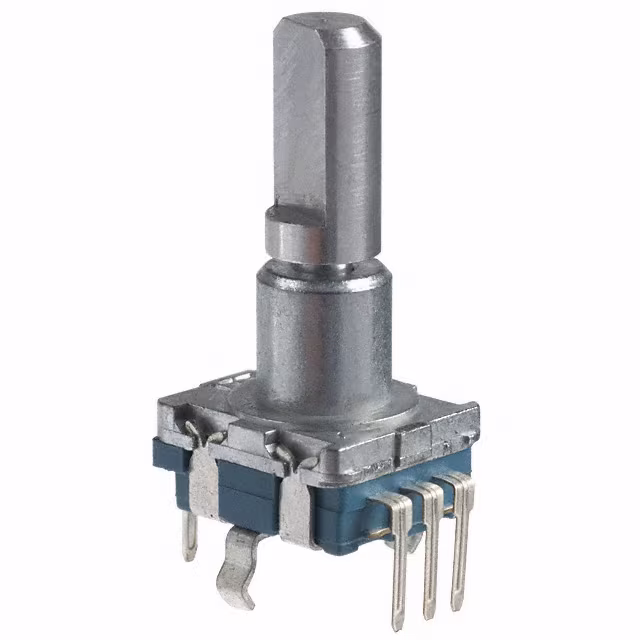

NSE11DV57NCF215AROTARY ENCODER MECHANICAL 15PPR |
1,367 |
|
Datasheet | NSE11 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
NSE11DV57NCF220AROTARY ENCODER MECHANICAL 20PPR |
2,201 |
|
Datasheet | NSE11 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|

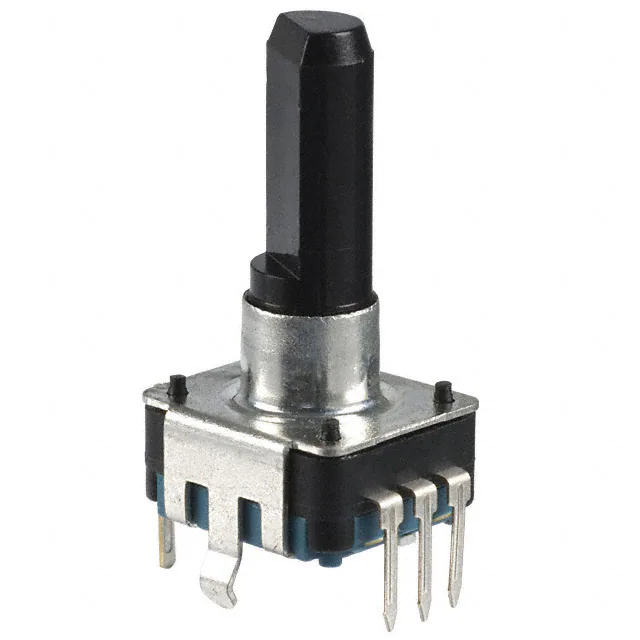

NSE12DSV1225ROTARY ENCODER MECHANICAL 12PPR |
1,905 |
|
Datasheet | NSE12 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

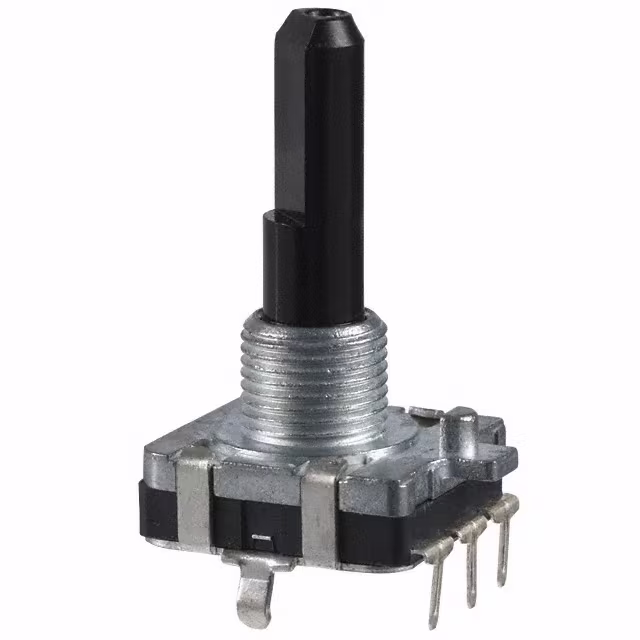

NSE16DV2431ROTARY ENCODER MECHANICAL 24PPR |
1,919 |
|
Datasheet | NSE16 | - | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
