Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ11BR1E-20FA1-20CROTARY ENCODER INCREMENT 20PPR |
898 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

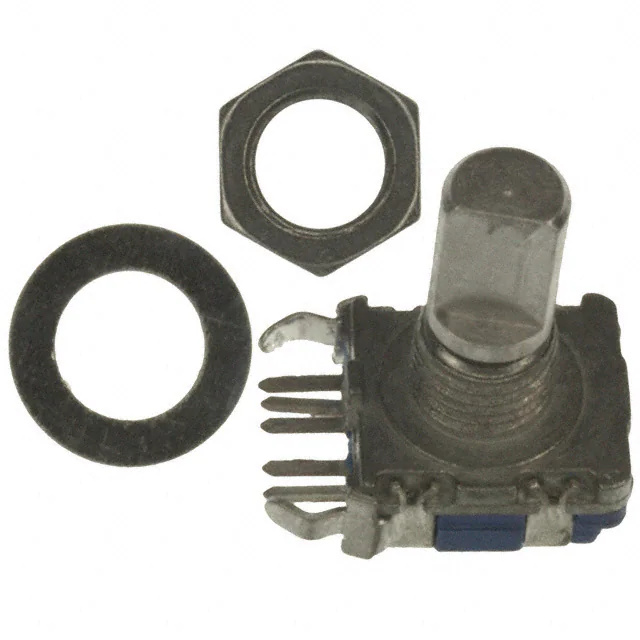

ACZ11BR1E-15FA1-12CROTARY ENCODER INCREMENT 12PPR |
1,611 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|

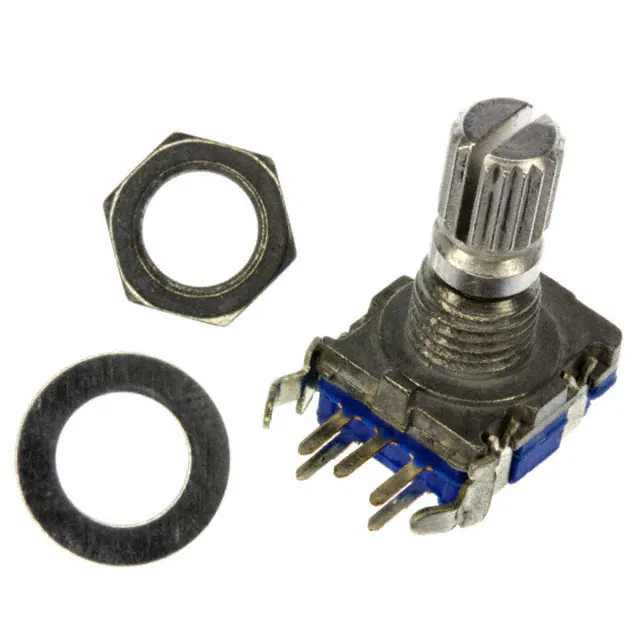

ACZ11BR1E-15KQA1-12CROTARY ENCODER INCREMENT 12PPR |
471 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ACZ11BR1E-15KQD1-20CROTARY ENCODER INCREMENT 20PPR |
341 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|

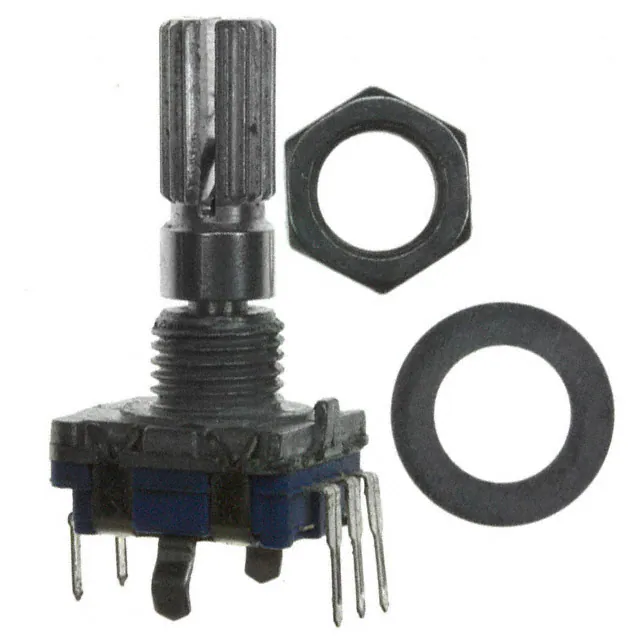

ACZ11BR1E-20KQD1-20CROTARY ENCODER INCREMENT 20PPR |
873 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
C14D32P-A2P15 MM, 32 PPR, 6.00 MM PLASTIC M |
173 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 6mm Dia Round End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

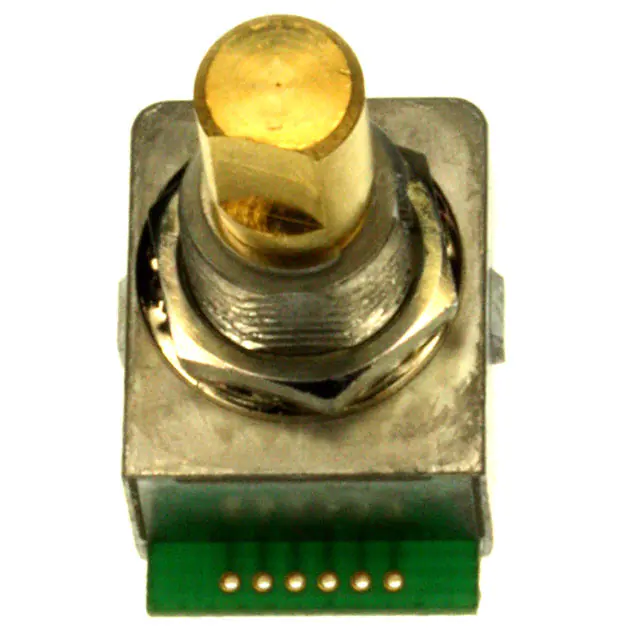

C14N32N-A3ROTARY ENCODER OPTICAL 32PPR |
204 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
AMT11A2S-VKIT, AMT11A2S, INCREMENTAL ENCOD |
194 |
|
Datasheet | AMT11A | Box | Active | Not Verified | Capacitive, Incremental | Voltage | - | 4.5V ~ 5.5V | - | No | No | Chassis Mount | Right Angle | Connector | - | - | - |
|
AMT133S-VKIT, AMT133S, INCREMENTAL ENCODE |
113 |
|
Datasheet | AMT13 | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - | - | - |
|
AMT13A2S-VKIT, AMT13A2S-V INCREMENTAL ENCO |
221 |
|
Datasheet | AMT13A | Box | Active | - | Incremental | Voltage | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - | - | - |
