Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C14N16P-C3PA15 MM, 16 PPR, 6.35 MM PLASTIC S |
1,400 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32N-F3ENCODER OPT PANEL 32PPR 5VDC |
4,617 |
|
Datasheet | C14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16N-A2ROTARY ENCODER OPTICAL 16PPR |
1,182 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | No | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
C14D16P-C2ROTARY ENCODER OPTICAL 16PPR |
4,373 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

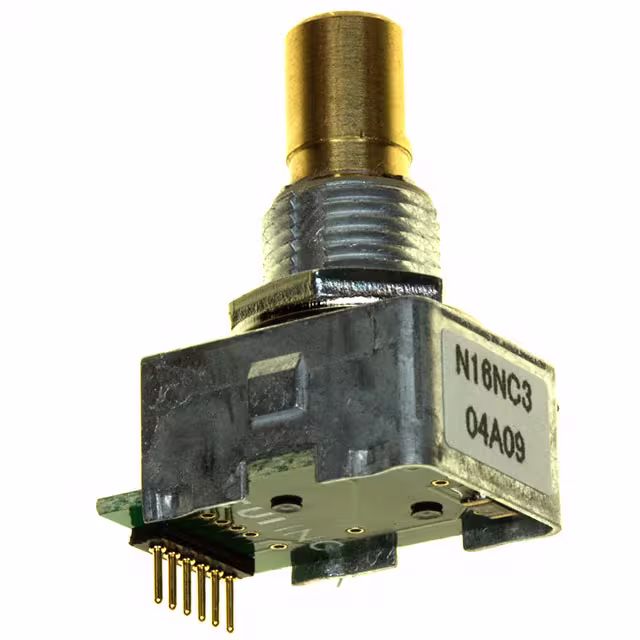

C14N16N-C3ROTARY ENCODER OPTICAL 16PPR |
3,702 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14N32N-C3ROTARY ENCODER OPTICAL 32PPR |
4,394 |
|
Datasheet | C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-A3PA15 MM, 32 PPR, 6.35 MM METAL SHA |
1,862 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|
|
C14D16N-C3PA15 MM, 16 PPR, 6.35 MM PLASTIC S |
3,128 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
C14D32N-C3PA15 MM, 32 PPR, 6.35 MM PLASTIC S |
1,055 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D32P-F3P15 MM, 32 PPR, 6.35 MM PLASTIC S |
2,893 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
