DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78C04SRATSWITCH SLIDE DIP SPST 0.025A 24V |
3,919 |
|
Datasheet | 78C | Bulk | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

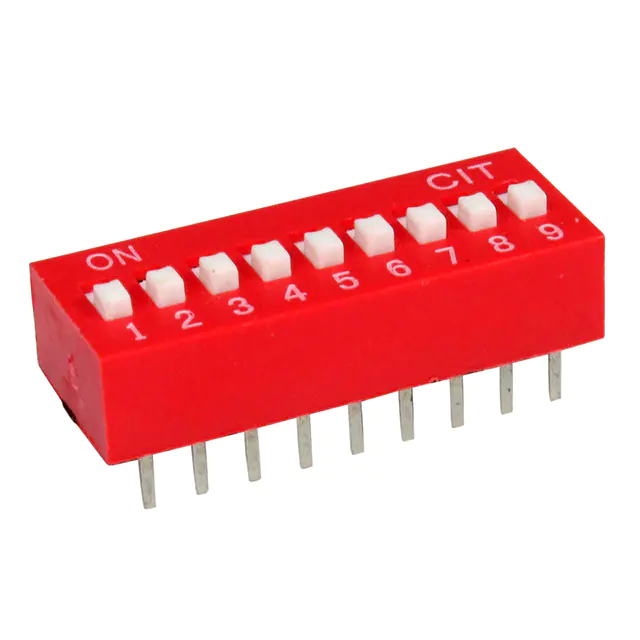

KG09ETSWITCH SLIDE DIP SPST 0.025A 24V |
198 |
|
Datasheet | KG | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
4-1571999-5SWITCH PIANO DIP SPST |
1,778 |
|
Datasheet | ADPA | Tube | Active | SPST | 4 | - | - | Piano | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
NDIR06HSWITCH SLIDE DIP SPST 0.025A 24V |
4,132 |
|
Datasheet | NDI | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
7829S-1-023LFSWITCH ROTARY DIP SPDT 0.1A 16V |
2,328 |
|
Datasheet | 7829 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Raised | - | - | 0.330" (8.38mm) | Through Hole, Right Angle | PC Pin | - | Yes | - | -55°C ~ 125°C |
|
208-10SSWITCH SLIDE DIP SPST 0.05A 24V |
281 |
|
Datasheet | 208 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
ADF04SATR09400SWITCH SLIDE DIP SPST 0.025A 5V |
2,246 |
|
Datasheet | ADF | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825057-8SWITCH STANDARD DIP SPST 0.1A |
3,246 |
|
Datasheet | ADE | Tape & Reel (TR) | Active | SPST | 9 | 100mA | - | Standard | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
DMR09TSWITCH SLIDE DIP SPST 0.025A 24V |
4,493 |
|
Datasheet | DM | Bulk | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KR04ETSWITCH SLIDE DIP SPST 0.025A 24V |
319 |
|
Datasheet | KR | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
4-1571999-1SWITCH PIANO DIP SPST |
3,725 |
|
Datasheet | ADPA | Tube | Active | SPST | 2 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
KR07RSWITCH SLIDE DIP SPST 0.025A 24V |
399 |
|
Datasheet | KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
GDH02S04Slide Dip Switch, 2 Switches, SP |
24,488 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KP04ETSWITCH PIANO DIP SPST 0.025A 24V |
706 |
|
Datasheet | KP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
4,149 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
EDS06SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
4,570 |
|
Datasheet | EDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
KR07ETSWITCH SLIDE DIP SPST 0.025A 24V |
407 |
|
Datasheet | KR | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR06ETSWITCH SLIDE DIP SPST 0.025A 24V |
448 |
|
Datasheet | KR | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KAS1103ETSWITCH SLIDE DIP SPST 0.025A 24V |
738 |
|
Datasheet | KAS | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
3-435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
1,402 |
|
Datasheet | 7100 | Bulk | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
