DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS1112RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,928 |
|
Datasheet | KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

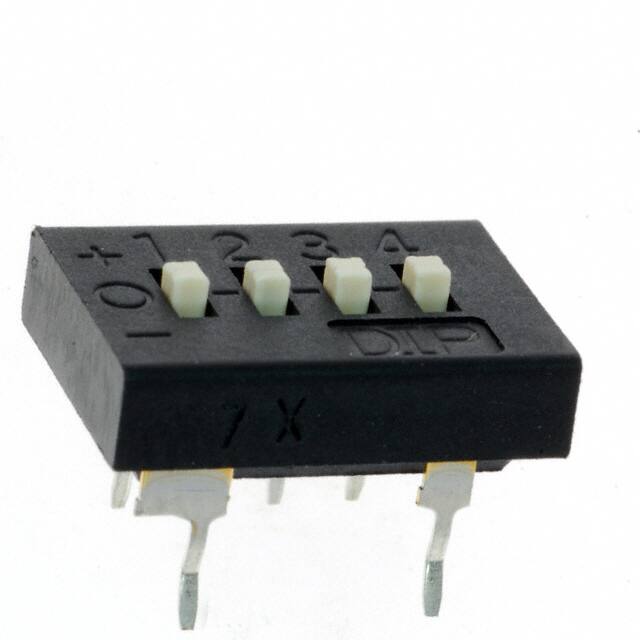

KAT1104ESWITCH SLIDE DIP SPDT 0.025A 24V |
4,094 |
|
Datasheet | KAT | Tube | Obsolete | SPDT | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
KAT1109ESWITCH SLIDE DIP SPDT 0.025A 24V |
4,687 |
|
Datasheet | KAT | Tube | Obsolete | SPDT | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
KC1901NSWITCH ROTARY DIP SP9T 0.1A 16V |
4,433 |
|
Datasheet | KC1901 | Bulk | Obsolete | SP9T | 9 | 100mA | 16VDC | Rotary with Shaft | Raised | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
SRK-10SWITCH ROTARY DIP BCD 0.1A 5V |
4,799 |
|
Datasheet | SRK | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Glass Fabric Epoxy Resin | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -10°C ~ 60°C |
|
|
DR3A-10R-BSWITCH ROTARY DIP BCD 0.025A 24V |
4,424 |
|
Datasheet | DR | Tube | Obsolete | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
DR3M-16R-BSWITCH ROTARY DIP HEX 0.025A 24V |
2,548 |
|
Datasheet | DR | Tube | Obsolete | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
DR4-10R-BSWITCH ROTARY DIP BCD 0.025A 24V |
2,470 |
|
Datasheet | DR | Tube | Obsolete | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
DR4A-16R-BSWITCH ROTARY DIP HEX 0.025A 24V |
3,706 |
|
Datasheet | DR | Tube | Obsolete | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
|
DR4AH-16R-BSWITCH ROTARY DIP HEX 0.025A 24V |
2,120 |
|
Datasheet | DR | Tube | Obsolete | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | Copper | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
