DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDTKR04S2TSWITCH ROTARY DIP BCD 0.15A 42V |
2,456 |
|
Datasheet | RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Knob | Raised | - | Gold | 0.256" (6.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RDTBC04R1TSW ROTARY DIP BCD COMP 0.15A 42V |
3,708 |
|
Datasheet | RDT | Tube | Active | BCD Complement | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR06R1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,892 |
|
Datasheet | RDT | Tube | Active | BCD | 6 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RDTBR04R1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,337 |
|
Datasheet | RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.394" (10.01mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KAC10LGGTSWITCH PIANO DIP SPST 0.025A 24V |
4,009 |
|
Datasheet | KAC | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RDMAC10R2TSW ROTARY DIP BCD COMP 0.1A 42V |
3,915 |
|
Datasheet | RDM | Tube | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

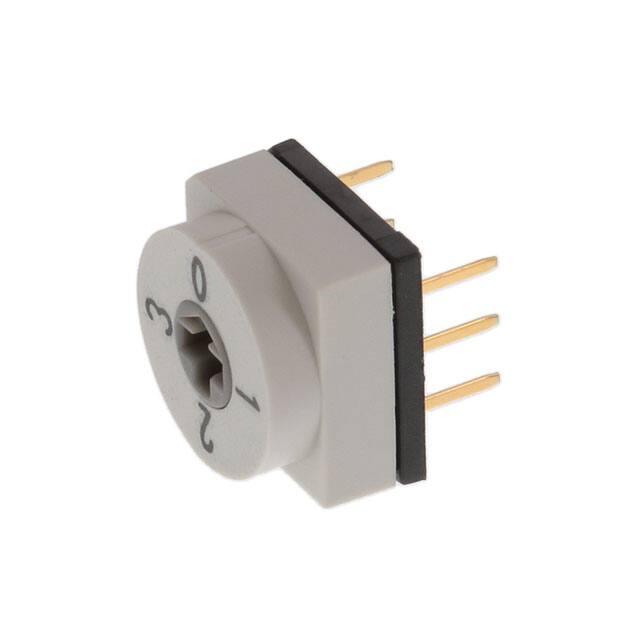

RDTCR04P1TSWITCH ROTARY DIP BCD 0.15A 42V |
3,574 |
|
Datasheet | RDT | Tube | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
RDMER10R2TSWITCH ROTARY DIP BCD 0.1A 42V |
4,172 |
|
Datasheet | RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RDMAR16R2TSWITCH ROTARY DIP HEX 0.1A 42V |
1,085 |
|
Datasheet | RDM | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
|
RDMAR16R1TSWITCH ROTARY DIP HEX 0.1A 42V |
2,262 |
|
Datasheet | RDM | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
