DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8ESJSWITCH SLIDE DIP SPST 0.1A 20V |
4,985 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8ESJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,171 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.224" (5.70mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8LPSJSWITCH SLIDE DIP SPST 0.1A 20V |
2,899 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8LPSJFSWITCH SLIDE DIP SPST 0.1A 20V |
2,982 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8MSJSWITCH SLIDE DIP SPST 0.1A 20V |
1,216 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-8MSJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,132 |
|
Datasheet | 219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-4LPSSWITCH SLIDE DIP SPST 0.025A 24V |
4,359 |
|
Datasheet | 218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

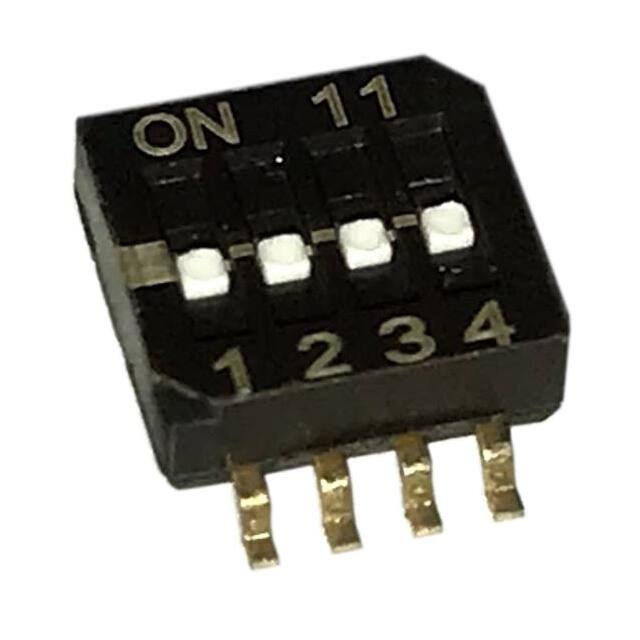

218-4LPSFSWITCH SLIDE DIP SPST 0.025A 24V |
4,752 |
|
Datasheet | 218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-4LPSTRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,684 |
|
Datasheet | 218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-7ESWITCH SLIDE DIP SPST 0.05A 24V |
3,774 |
|
Datasheet | 206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
