DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-2MSFSWITCH SLIDE DIP SPST 0.1A 20V |
1,369 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESFSWITCH SLIDE DIP SPST 0.1A 20V |
3,071 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2LPSDSWITCH SLIDE DIP SPST 0.1A 20V |
2,252 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2MSDSWITCH SLIDE DIP SPST 0.1A 20V |
1,045 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESDSWITCH SLIDE DIP SPST 0.1A 20V |
1,471 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2LPSFDSWITCH SLIDE DIP SPST 0.1A 20V |
3,221 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2MSFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,690 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-2ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
2,788 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

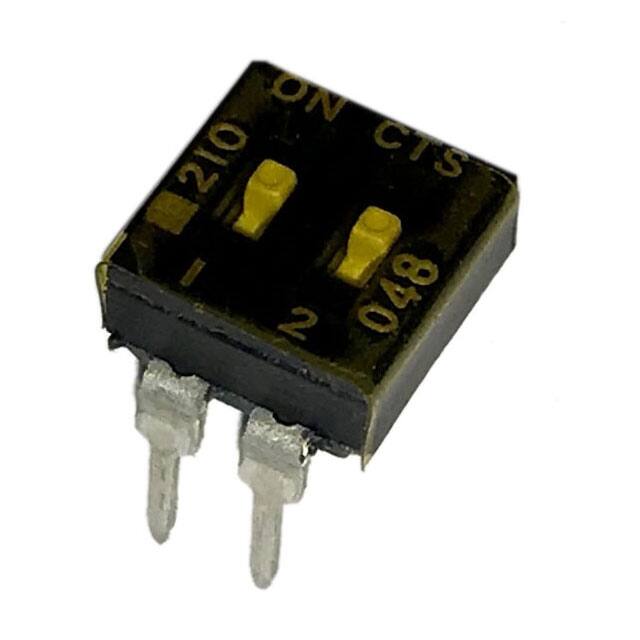

210-2LPSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,787 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
210-2MSTSWITCH SLIDE DIP SPST 0.1A 20V |
2,877 |
|
Datasheet | 210 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
