DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA05SWITCH SLIDE DIP SPST 0.05A 24V |
1,652 |
|
Datasheet | DA | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

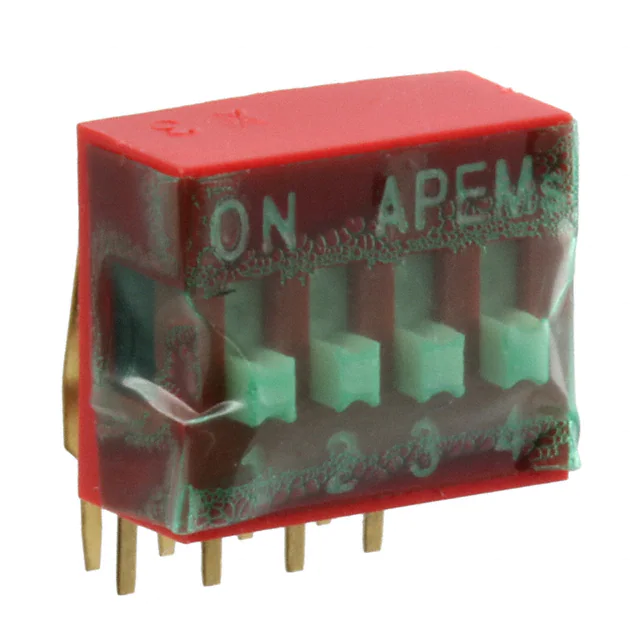

DA04TSWITCH SLIDE DIP SPST 0.05A 24V |
4,472 |
|
- |
DA | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA04SWITCH SLIDE DIP SPST 0.05A 24V |
4,406 |
|
Datasheet | DA | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA06SWITCH SLIDE DIP SPST 0.05A 24V |
3,612 |
|
Datasheet | DA | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA05TSWITCH SLIDE DIP SPST 0.05A 24V |
3,842 |
|
Datasheet | DA | Tube | Obsolete | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA06TSWITCH SLIDE DIP SPST 0.05A 24V |
3,376 |
|
Datasheet | DA | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA12TSWITCH SLIDE DIP SPST 0.05A 24V |
4,352 |
|
Datasheet | DA | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA10TNSWITCH SLIDE DIP SPST 0.05A 24V |
2,636 |
|
Datasheet | DA | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DA12SWITCH SLIDE DIP SPST 0.05A 24V |
3,123 |
|
Datasheet | DA | Tube | Obsolete | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DA07TSWITCH SLIDE DIP SPST 0.05A 24V |
2,707 |
|
Datasheet | DA | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
