DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P36801L254DIP ROTARY SWITCH P25 7MM LOW |
4,517 |
|
Datasheet | P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36302L254DIP ROTARY SWITCH P25 7MM LOW |
3,234 |
|
Datasheet | P36 | Bulk | Active | BCD Complement | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36301L254DIP ROTARY SWITCH P25 7MM LOW |
1,616 |
|
Datasheet | P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
P36103L254SWITCH ROTARY DIP HEX 0.1A 24V |
1,380 |
|
Datasheet | P36 | Tube | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
|
P36101L254SWITCH ROTARY DIP BCD 0.1A 24V |
1,051 |
|
Datasheet | P36 | Tube | Active | BCD | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|
|
P60AS706DIP ROTARY SWITCH P60 10MM |
4,425 |
|
Datasheet | P60AS | Bulk | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.244" (6.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
P36S301DIP ROTARY SWITCH P25 7MM LOW |
4,780 |
|
Datasheet | P36 | Bulk | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.151" (3.84mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|

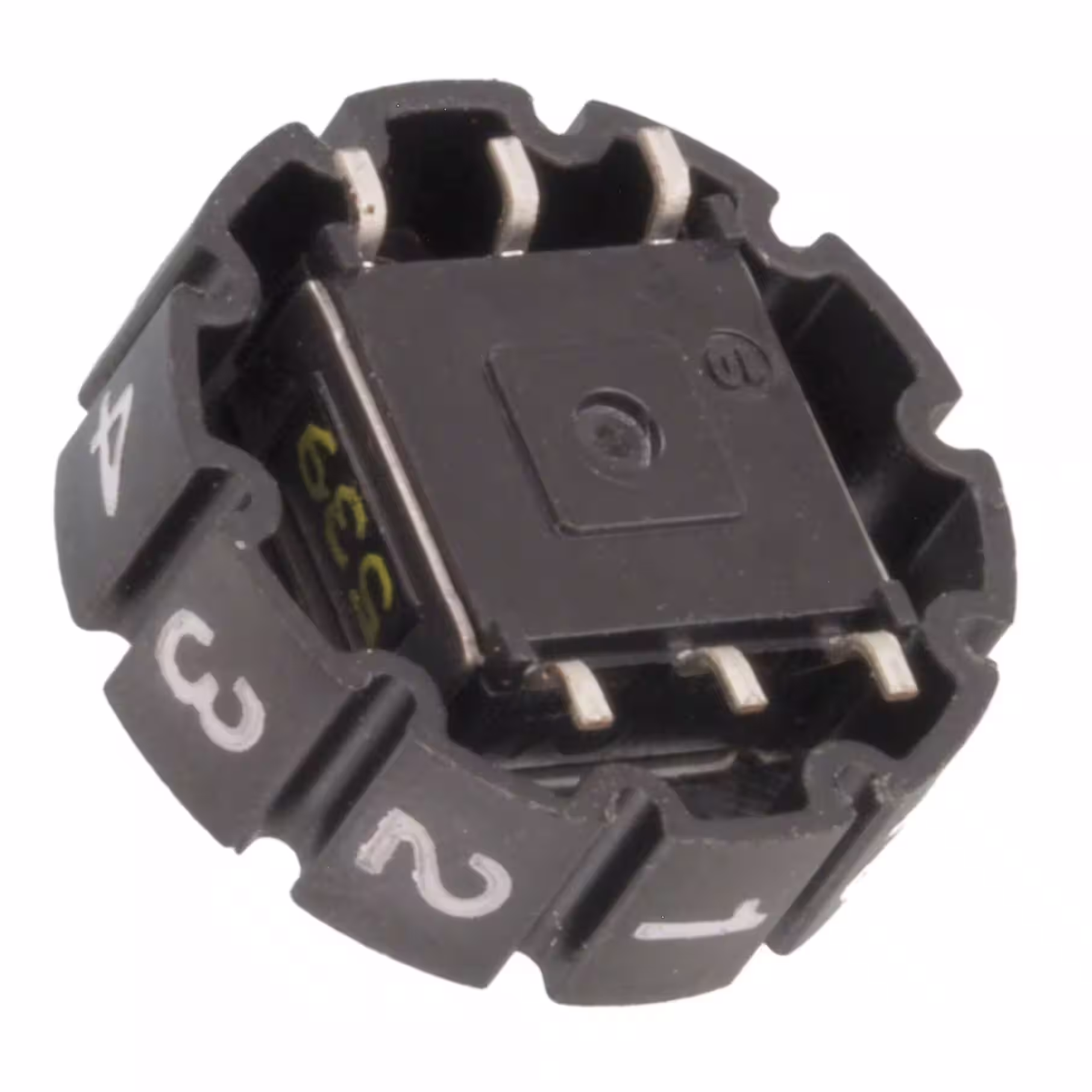

DH101ALSMT002SWITCH ROTARY DIP BCD 0.1A 42V |
1,623 |
|
Datasheet | DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|

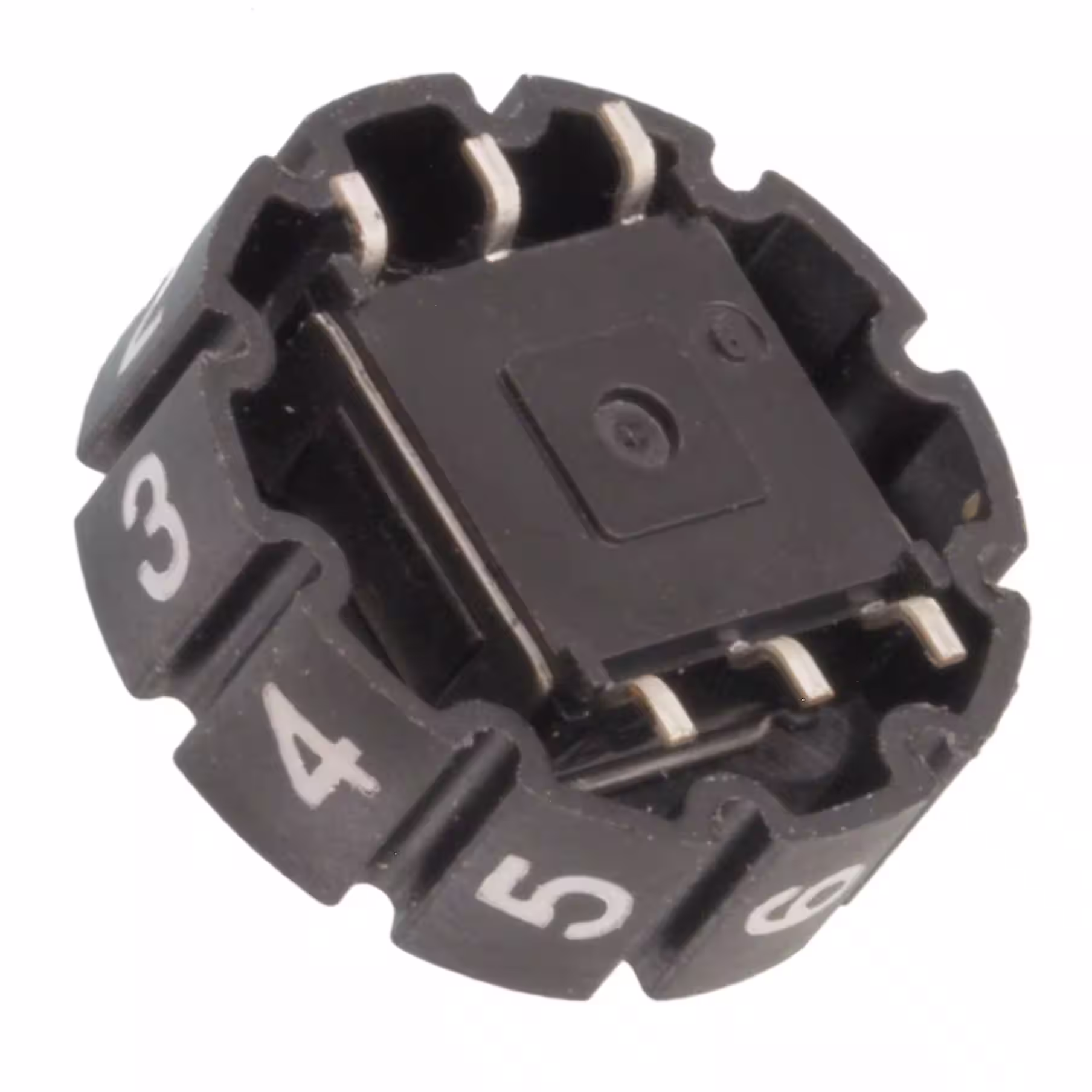

DH101ARSMT002SWITCH ROTARY DIP BCD 0.1A 42V |
4,778 |
|
Datasheet | DH | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 42VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
PT65505DIP ROTARY SWITCH P60 10MM |
2,021 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
