DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDP08TVDIP SWITCH DP PIANO STYLE |
3,966 |
|
Datasheet | NDPL | Bulk | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
DHNF08FDIP SWITCH IKH HALF PITCH |
4,334 |
|
- |
DHN | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
IKH1003000SWITCH SLIDE DIP SPST 0.025A 24V |
4,448 |
|
Datasheet | IKH | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|
|
NDSR10VDIP SWITCH ND STANDARD |
3,103 |
|
Datasheet | NDS | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHS6ADIPTRONICS HALF PITCH DIP |
1,279 |
|
Datasheet | DHS | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
D16ASP081E1BTRDIP ROTARY DH THUMB WHEEL |
2,868 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NDS10TVDIP SWITCH ND STANDARD |
4,224 |
|
Datasheet | NDS | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
PT65SG173DIP ROTARY SWITCH P60 10MM |
1,447 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDG201S02TRANSFER DIP SWITCH MDG |
1,966 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

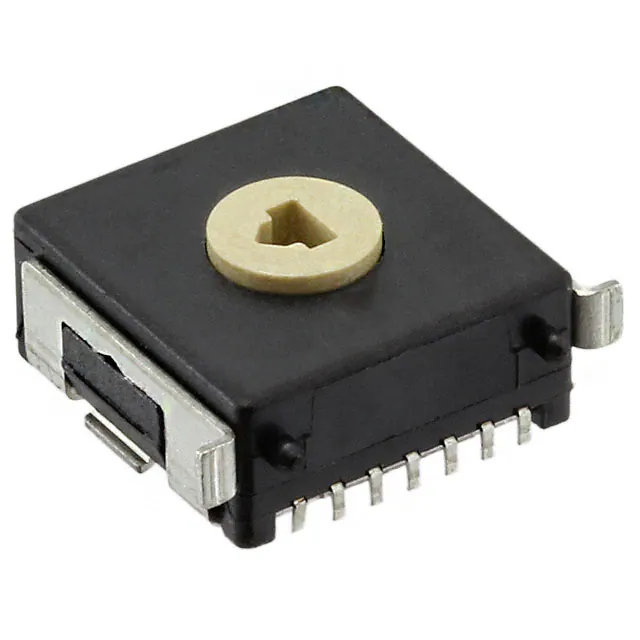

P56SMT964LTRSW ROTARY DIP GRAY CODE 0.1A 24V |
4,337 |
|
- |
P56 | Tape & Reel (TR) | Obsolete | Gray Code | 64 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.480" (12.19mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 95°C |
