DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

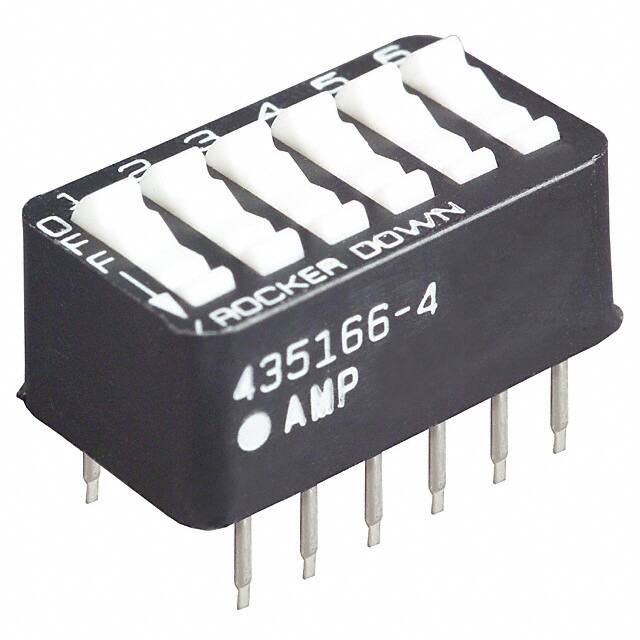

435166-4SWITCH ROCKER DIP SPST |
3,113 |
|
Datasheet | 7000 | Tube | Active | SPST | 6 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
DRD10CESW ROTARY DIP BCD COMP 0.4VA 20V |
3,752 |
|
Datasheet | DRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
DRD10SWITCH ROTARY DIP BCD 0.4VA 20V |
2,701 |
|
Datasheet | DRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
435166-1SW ROCKER DIP SPST 0.025A 24V |
4,999 |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
2-5435802-1SWITCH PIANO DIP SPST |
2,983 |
|
Datasheet | 7000 | Tube | Active | SPST | 11 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
DRD10ESWITCH ROTARY DIP BCD 0.4VA 20V |
2,230 |
|
Datasheet | DRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
DRD16SWITCH ROTARY DIP HEX 0.4VA 20V |
4,836 |
|
Datasheet | DRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
DRD16CESW ROTARY DIP HEX COMP 0.4VA 20V |
1,172 |
|
Datasheet | DRD | Tube | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-5435802-2SWITCH PIANO DIP SPST |
1,498 |
|
Datasheet | 7000 | Bulk | Active | SPST | 12 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
SLV04SWITCH SLIDE DIP SPST 0.4VA 20V |
4,663 |
|
Datasheet | SLV | Tube | Obsolete | SPST | 4 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
