DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1825006-2SWITCH STANDARD DIP SPST |
2,880 |
|
Datasheet | GDS | Bulk | Active | SPST | 6 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
GDH02SSWITCH SLIDE DIP SPST 0.025A 24V |
1,553 |
|
- |
GDH | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
2-2319764-9E STACK PIANO 8P G SHORT SEAL T& |
4,263 |
|
- |
EDSP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

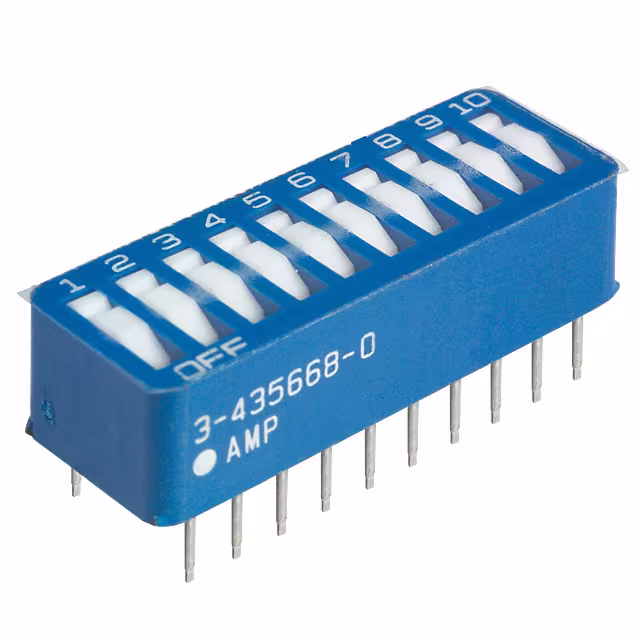

3-5435668-0SWITCH ROCKER DIP SPST 0.06A 5V |
1,307 |
|
Datasheet | 7100 | Tube | Active | SPST | 10 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
GDH06STRSWITCH SLIDE DIP SPST 0.025A 24V |
2,379 |
|
Datasheet | GDH | Tape & Reel (TR) | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
EDS02SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,315 |
|
Datasheet | EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

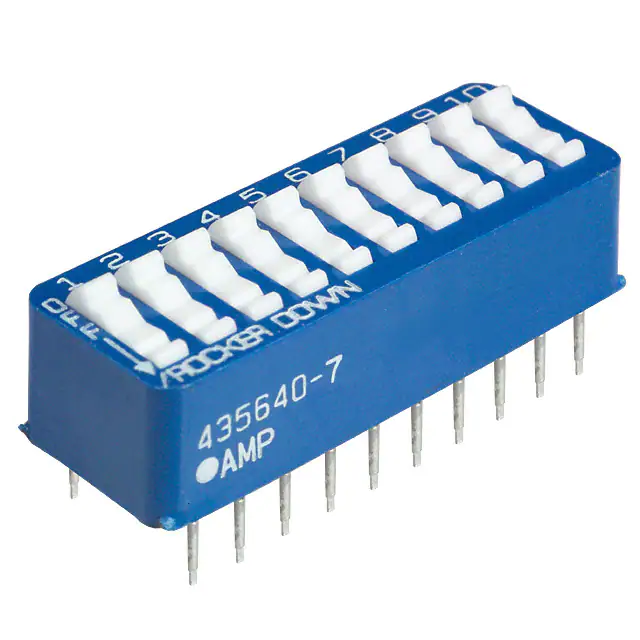

435640-7SWITCH ROCKER DIP SPST |
4,437 |
|
Datasheet | 7100 | Tube | Active | SPST | 10 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
|
1977208-2SWITCH SLIDE DIP SPST 0.025A 5V |
2,097 |
|
Datasheet | ADF | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.199" (5.05mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

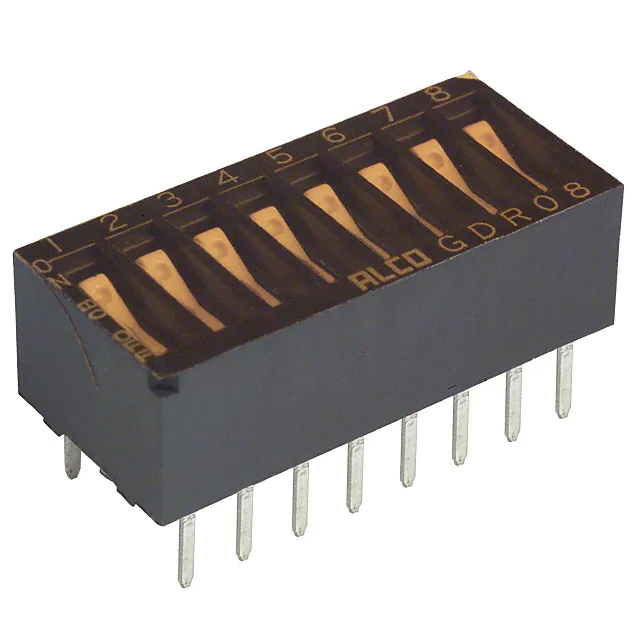

1825286-7SW ROCKER DIP SPST 0.025A 24V |
3,676 |
|
- |
GDR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
3-5435802-8SWITCH PIANO DIP SPST |
4,440 |
|
Datasheet | 7000 | Tube | Active | SPST | 8 | - | - | Piano | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
