DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

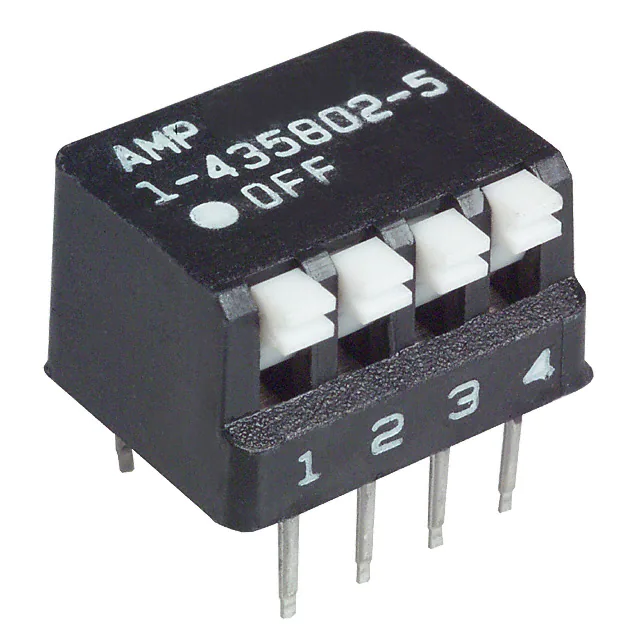

1-435802-5SWITCH PIANO DIP SPST 0.025A 24V |
1,986 |
|
Datasheet | 7000 | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
5-5435166-2SWITCH ROCKER DIP SPST |
3,229 |
|
Datasheet | 7000 | Tube | Active | SPST | 7 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
3-1571999-6SWITCH PIANO DIP SPST |
2,496 |
|
Datasheet | ADP | Tube | Active | SPST | 10 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
GDS08SSWITCH SLIDE DIP SPST 0.025A 24V |
1,517 |
|
- |
GDS | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDH02STRSWITCH SLIDE DIP SPST 0.025A 24V |
4,984 |
|
Datasheet | GDH | Tape & Reel (TR) | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADP05SSWITCH PIANO DIP SPST 0.025A 24V |
2,355 |
|
Datasheet | ADP | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA05SSWITCH PIANO DIP SPST 0.025A 24V |
1,531 |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA06SWITCH PIANO DIP SPST 0.025A 24V |
3,591 |
|
Datasheet | ADPA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
GDP04SSWITCH PIANO DIP SPST 0.025A 24V |
4,958 |
|
Datasheet | GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADP05SWITCH PIANO DIP SPST 0.025A 24V |
2,820 |
|
Datasheet | ADP | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
