DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825007-1SW ROTARY DIP BCD COMP 0.4VA 20V |
3,710 |
|
Datasheet | DRD | Bulk | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1825008-6SWITCH ROTARY DIP BCD 0.4VA 20V |
4,632 |
|
Datasheet | DR | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
1-1825008-4SWITCH ROTARY DIP BCD 0.4VA 20V |
3,378 |
|
Datasheet | DR | Bulk | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
5435802-2SWITCH PIANO DIP SPST 0.025A 24V |
6,088 |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5-435470-5SW ROCKER DIP DPDT 0.025A 24V |
3,103 |
|
Datasheet | 7000 | Tube | Obsolete | DPDT | 1 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.360" (9.14mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
1-5161390-4SWITCH SLIDE DIP SPST 0.025A 50V |
3,344 |
|
Datasheet | DIP | Bulk | Active | SPST | 14 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|

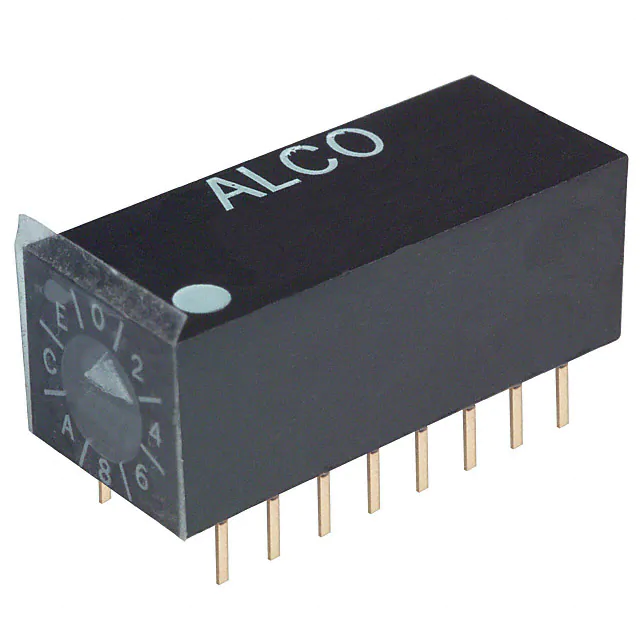

54792-1SW ROTARY DIP HEX COMP 0.1A 28V |
1,154 |
|
Datasheet | - | Tube | Obsolete | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | - |
|
|
1825428-4SWITCH SLIDE DIP SPST 0.1A 24V |
1,129 |
|
Datasheet | ARF | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1825008-2SWITCH ROTARY DIP HEX |
2,612 |
|
Datasheet | DR | Bulk | Obsolete | Hexadecimal | 16 | - | - | Rotary with Shaft | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
EDS04SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,882 |
|
Datasheet | EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
