DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-2110ASWITCH ROTARY DIP BCD 0.1A 5V |
2,195 |
|
Datasheet | S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
S-1130ASW ROTARY DIP HEX COMP 0.1A 5V |
1,398 |
|
Datasheet | S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
S-2130ASW ROTARY DIP BCD COMP 0.1A 5V |
3,405 |
|
Datasheet | S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

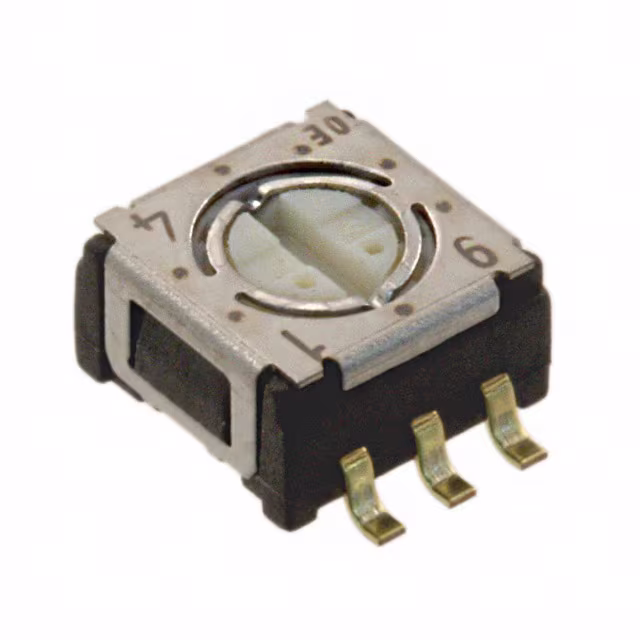

S-4010TBSWITCH ROTARY DIP BCD 0.1A 2.4V |
3,218 |
|
Datasheet | S-4000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 2.4VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.102" (2.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
SS-10-16NPEWSWITCH ROTARY DIP SP6T 0.1A 5V |
1,669 |
|
- |
SS-10 | Tray | Active | SP6T | 6 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
SS-10-15SPEWSWITCH ROTARY DIP SP5T 0.1A 5V |
1,553 |
|
- |
SS-10 | Tray | Active | SP5T | 5 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | - | - | 0.276" (7.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
SS-10-16SP-AEWSWITCH ROTARY DIP SP6T 0.1A 5V |
1,758 |
|
- |
SS-10 | Tray | Active | SP6T | 6 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-1111AWSWITCH ROTARY DIP 16-POS SIDE |
4,549 |
|
- |
S-1000 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S-1111ASWITCH ROTARY DIP HEX 0.1A 5V |
1,576 |
|
Datasheet | S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-1131ASW ROTARY DIP HEX COMP 0.1A 5V |
1,234 |
|
Datasheet | S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
