RF Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Type | Voltage - Peak Reverse (Max) | Current - Max | Capacitance @ Vr, F | Resistance @ If, F | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPINU5208-HFRF DIODE PIN 35V 300MW 0603 |
9,335 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | PIN - Single | 35V | - | 0.9pF @ 20V, 100MHz | 700mOhm @ 10mA, 100MHz | 300 mW | 150°C (TJ) | - | - | 0603/SOD-523F |
.jpg)
|

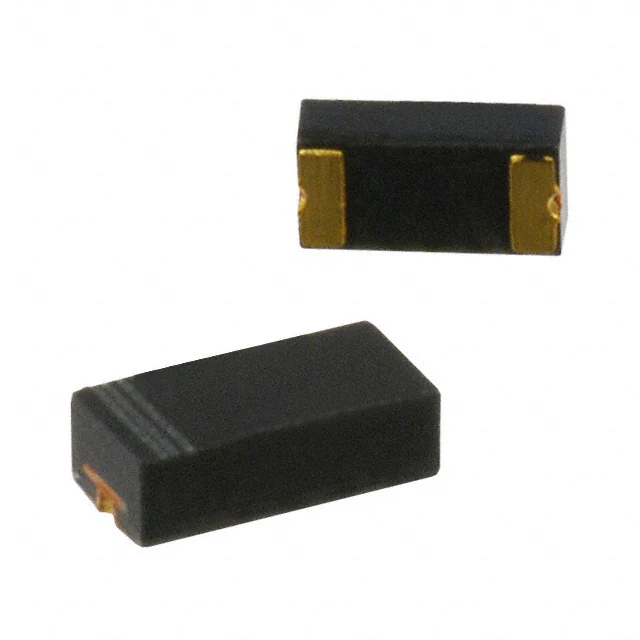

CPINF5204-HFRF DIODE PIN 180V 500MW 1005 |
8,008 |
|
Datasheet | - | 1005 (2512 Metric) | Tape & Reel (TR) | Obsolete | PIN - Single | 180V | - | 0.9pF @ 40V, 100MHz | 750mOhm @ 50mA, 100MHz | 500 mW | 150°C (TJ) | - | - | 1005/SOD-323F |
.jpg)
|
CPINUC5206-HFRF DIODE PIN 180V 300MW 0603C |
5,975 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | PIN - Single | 180V | - | 0.22pF @ 40V, 100MHz | 1.5Ohm @ 50mA, 100MHz | 300 mW | 150°C (TJ) | - | - | 0603C/SOD-523F |
