DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-D12H-TDC-DC ISOLATED, 30 W, 18~75 VDC |
4,044 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
|
PYBE30-Q48-D5H-TDC-DC ISOLATED, 30 W, 18~75 VDC |
4,576 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | CE, cURus, UKCA | 60950-1; 62368-1 |
|
VCD30-D12-S12-TDC/DC CONVERTER 12V 30W |
4,165 |
|
Datasheet | VCD30-T (30W) | Box | Obsolete | Enclosed | - | - | 1 | - | - | - | - | - | 30W | - | - | 82% | -25°C ~ 71°C | Chassis Mount | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - |
|

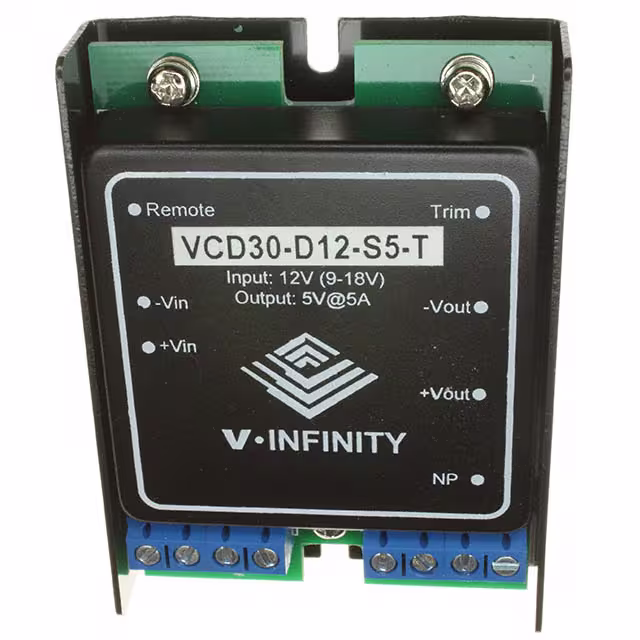

VCD30-D12-S5-TDC/DC CONVERTER 5V 30W |
4,295 |
|
Datasheet | VCD30-T (30W) | Box | Obsolete | Enclosed | - | - | 1 | - | - | - | - | - | 30W | - | - | 78% | -25°C ~ 71°C | Chassis Mount | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - |
|
PYB30-Q24-T515-UDC/DC CONVERTER 5V +/-15V 30W |
3,979 |
|
Datasheet | PYB30-U (30W) | Tray | Obsolete | Enclosed | 9V | 36V | 3 | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30W | - | - | 88% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|
PYB20-Q24-S15-UDC/DC CONVERTER 15V 20W |
2,010 |
|
Datasheet | PYB20-U (20W) | Tray | Obsolete | Enclosed | 9V | 36V | 1 | 15V | - | - | - | 1.333A | 20W | - | - | 90% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
|
PYB20-Q48-S24-UDC/DC CONVERTER 24V 20W |
1,113 |
|
Datasheet | PYB20-U (20W) | Tray | Obsolete | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 834mA | 20W | - | - | 90% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
|
PQAE50-D48-S12-UDC-DC ISOLATED, 50 W, 36~75 VDC |
2,538 |
|
Datasheet | PQAE50 (50W) | Tray | Not For New Designs | Isolated Module | 36V | 75V | 1 | 12V | - | - | - | 4.167A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE, UKCA | - |
|
|
PQAE50-D24-S15-UDC-DC ISOLATED, 50 W, 18~36 VDC |
4,349 |
|
Datasheet | PQAE50 (50W) | Tray | Not For New Designs | Isolated Module | 18V | 36V | 1 | 15V | - | - | - | 3.333A | 15W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE, UKCA | - |
|
|
PQAE50-D48-S24-UDC-DC ISOLATED, 50 W, 36~75 VDC |
1,133 |
|
Datasheet | PQAE50 (50W) | Tray | Not For New Designs | Isolated Module | 36V | 75V | 1 | 24V | - | - | - | 2.083A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) | CE, UKCA | - |
