DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-S3-TDC/DC CONVERTER 3.3V 20W |
4,600 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 6A | 20W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PYBE30-Q24-D12-TDC/DC CONVERTER +/-12V 30W |
1,334 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | CE, cURus | - |
|
|
PYBE30-Q48-D5-TDC/DC CONVERTER +/-5V 30W |
3,871 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | CE, cURus | - |
|
|
PYBE30-Q48-D15-TDC/DC CONVERTER +/-15V 30W |
2,355 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | CE, cURus | - |
|
|
PYBE30-Q24-D5-TDC/DC CONVERTER +/-5V 30W |
3,161 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | CE, cURus | - |
|
PYBE30-Q24-S24H-TDC-DC ISOLATED, 30 W, 9~36 VDC I |
3,739 |
|
Datasheet | PYBE30 (30W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 1.25A | 30W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 1.00" H (76.0mm x 31.5mm x 25.3mm) | cURus, UL | - |
|
PYBE20-Q24-S9-TDC/DC CONVERTER 9V 20W |
4,214 |
|
Datasheet | PYBE20 (20W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 1 | 9V | - | - | - | 2.222A | 20W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|
|
PYBE20-Q24-S12-TDC/DC CONVERTER 12V 20W |
4,854 |
|
Datasheet | PYBE20 (20W) | Tray | Not For New Designs | Enclosed | 9V | 36V | 1 | 12V | - | - | - | 1.667A | 20W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|
|
PYBE20-Q48-S24-TDC/DC CONVERTER 24V 20W |
2,628 |
|
Datasheet | PYBE20 (20W) | Tray | Not For New Designs | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 834mA | 20W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.83" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|

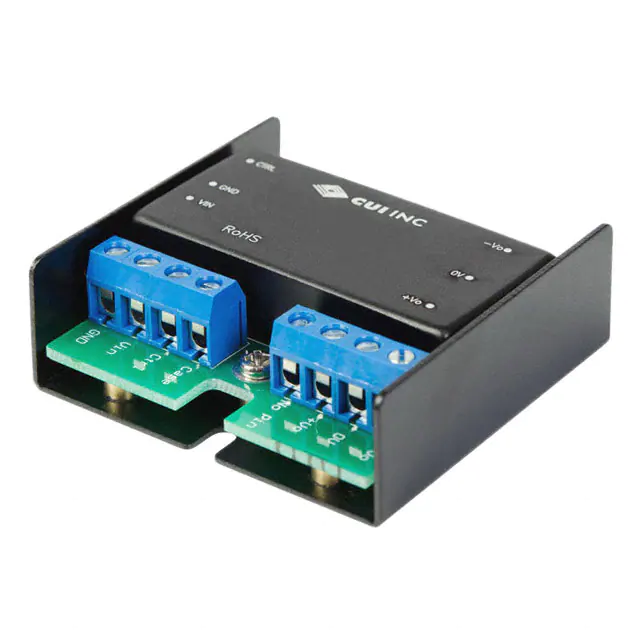

PYB15-Q24-S3-UDC/DC CONVERTER 3.3V 15W |
1,579 |
|
Datasheet | PYB15-U (15W) | Tray | Obsolete | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 4A | 15W | - | - | 87% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
