DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYB20-Q48-D15-UDC/DC CONVERTER +/-15V 20W |
1,994 |
|
Datasheet | PYB20-U (20W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 15V | -15V | - | - | 667mA, 667mA | 20W | - | - | 89% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
VHK50W-Q24-S3R3DC/DC CONVERTER 3.3V 50W |
4,951 |
|
Datasheet | VHK50W (50W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 10A | 50W | - | - | 75% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
PYB30-Q48-D5-UDC/DC CONVERTER +/-5V 30W |
1,775 |
|
Datasheet | PYB30-U (30W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 3A, 3A | 30W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|
|
PYB30-Q48-D12-UDC/DC CONVERTER +/-12V 30W |
1,022 |
|
Datasheet | PYB30-U (30W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | - | - | 87% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.16" W x 0.75" H (67.5mm x 55.0mm x 19.1mm) | EN, IEC | - |
|
PQA50-D24-S15-TDC/DC CONVERTER 15V 50W |
1,223 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 18V | 36V | 1 | 15V | - | - | - | 3.33A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D24-S24-TDC/DC CONVERTER 24V 50W |
2,687 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 18V | 36V | 1 | 24V | - | - | - | 2.08A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D24-S12-TDC/DC CONVERTER 12V 50W |
2,358 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 18V | 36V | 1 | 12V | - | - | - | 4.17A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
PYB20-Q48-S12-TDC/DC CONVERTER 12V 20W |
2,787 |
|
Datasheet | PYB20-T (20W) | Bulk | Obsolete | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 1.667A | 20W | - | - | 89% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | EN | 55024; 55032 Class A |
|

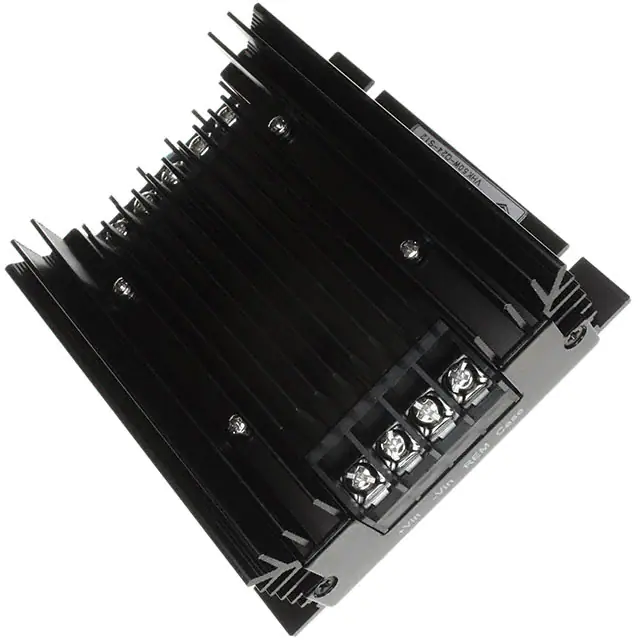

VHK100W-Q48-S5DC/DC CONVERTER 5V 100W |
1,866 |
|
Datasheet | VHK100W (100W) | Bulk | Active | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 20A | 100W | - | - | 84.5% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
|
PYB20-Q48-D5-UDC/DC CONVERTER +/-5V 20W |
1,264 |
|
Datasheet | PYB20-U (20W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
