DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DTJ1548D12DC/DC CONVERTER +/-12V 15W |
3,902 |
|
Datasheet | DTJ15 (15W) | Box | Active | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 630mA, 630mA | 15W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|

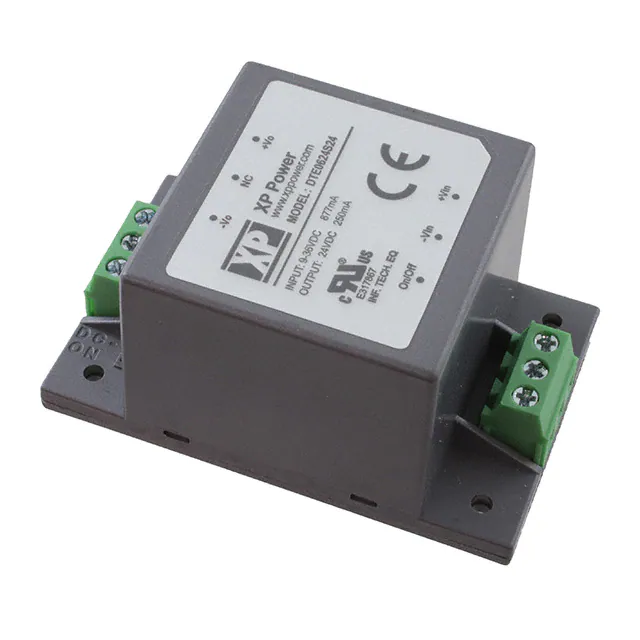

DTE0624S24DC/DC CONVERTER 24V 6W |
2,995 |
|
Datasheet | DTE06 (6W) | Box | Active | Enclosed | 9V | 36V | 1 | 24V | - | - | - | 250mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
DTJ2024S3V3DC/DC CONVERTER 3.3V 18W |
3,857 |
|
Datasheet | DTJ20 (20W) | Box | Active | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 5.5A | 18W | 3 kV | ITE (Commercial) | 68% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
|
DTJ2024D05DC/DC CONVERTER +/-5V 20W |
1,087 |
|
Datasheet | DTJ20 (20W) | Box | Active | Enclosed | 9V | 36V | 2 | 5V | -5V | - | - | 2A, 2A | 20W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|
DTE4024S48DC/DC CONVERTER 48V 40W |
3,384 |
|
Datasheet | DTE40 (40W) | Bulk | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 835mA | 40W | - | ITE (Commercial) | 89% | -40°C ~ 85°C | Chassis Mount | 4.41" L x 2.51" W x 1.01" H (112.0mm x 63.8mm x 25.6mm) | CB, CE, cURus | 62368-1 |
|
|
DTJ1548D05DC/DC CONVERTER +/-5V 15W |
1,100 |
|
Datasheet | DTJ15 (15W) | Box | Active | Enclosed | 18V | 75V | 2 | 5V | -5V | - | - | 1.5A, 1.5A | 15W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.00" L x 1.24" W x 0.77" H (76.2mm x 31.4mm x 19.4mm) | CB, UL | 62368-1 |
|

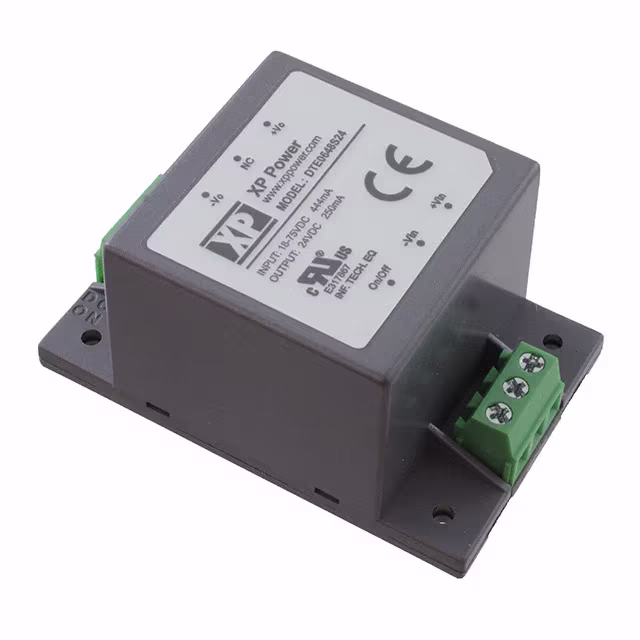

DTE0648S24DC/DC CONVERTER 24V 6W |
1,170 |
|
Datasheet | DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 250mA | 6W | 3 kV | ITE (Commercial) | 85% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|
DTE0648S12DC/DC CONVERTER 12V 6W |
3,775 |
|
Datasheet | DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 500mA | 6W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|

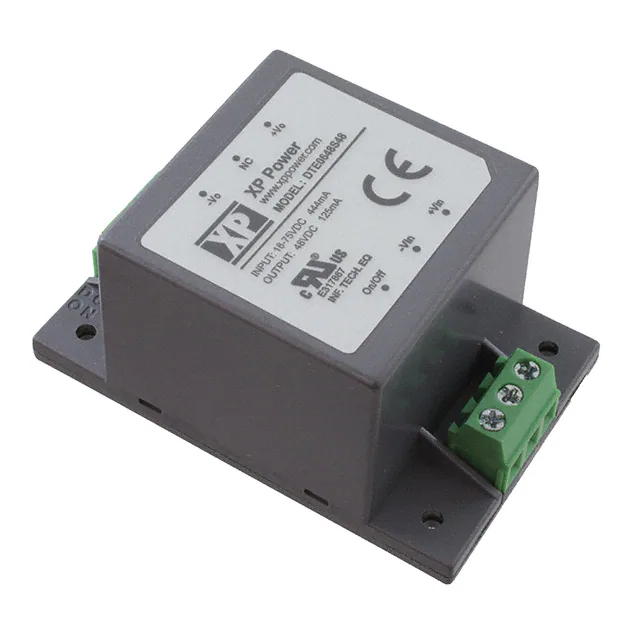

DTE0648S48DC/DC CONVERTER 48V 6W |
2,367 |
|
Datasheet | DTE06 (6W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
|

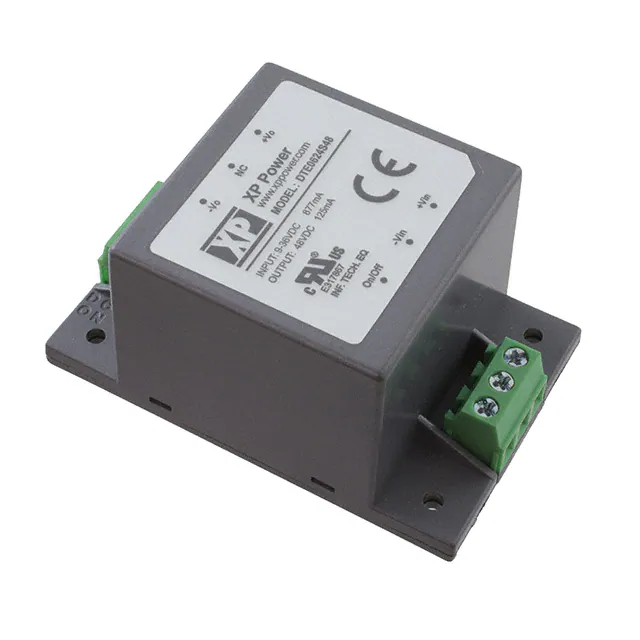

DTE0624S48DC/DC CONVERTER 48V 6W |
3,629 |
|
Datasheet | DTE06 (6W) | Box | Active | Enclosed | 9V | 36V | 1 | 48V | - | - | - | 125mA | 6W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 105°C (With Derating) | Chassis Mount | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) | CB, CE | 62368-1 |
