DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010813DC2-70-1005 |
183 |
|
Datasheet | DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 1 | 15V | - | - | - | 4.7A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010793DC4-70-1007 |
114 |
|
Datasheet | DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 1 | 28V | - | - | - | 2.5A | 70W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
1011528DC1-80-1007 |
4,478 |
|
Datasheet | DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 48V | - | - | - | 1.7A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011526DC1-80-1005 |
2,660 |
|
Datasheet | DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 28V | - | - | - | 2.9A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011525DC1-80-1004 |
2,864 |
|
Datasheet | DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 24V | - | - | - | 3.3A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010814DC2-70-1006 |
1,344 |
|
Datasheet | DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 1 | 24V | - | - | - | 2.9A | 69W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010787DC4-70-1001 |
1,127 |
|
Datasheet | DC4-70 (70W) | Box | Active | Open Frame | 36V | 72V | 1 | 2.5V | - | - | - | 14A | 35W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|

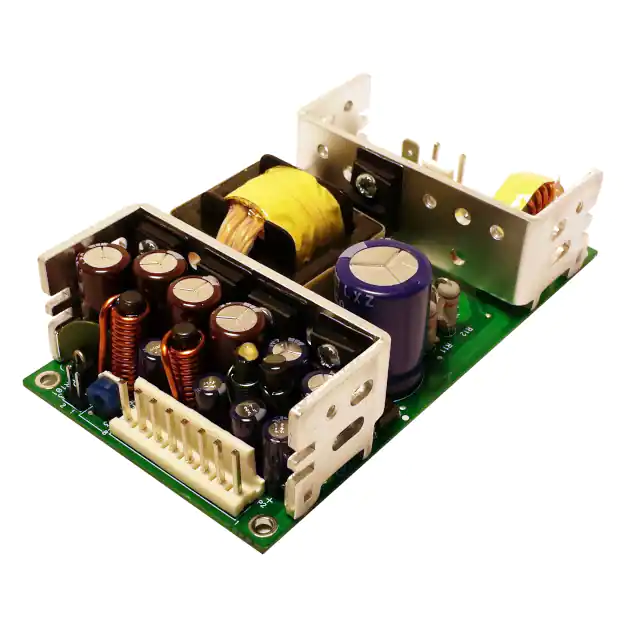

1010809DC2-70-1001 |
4,603 |
|
Datasheet | DC2-70 (70W) | Box | Active | Open Frame | 18V | 36V | 1 | 2.5V | - | - | - | 14A | 35W | - | ITE (Commercial), Medical | 78% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1011527DC1-80-1006 |
2,635 |
|
Datasheet | DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 36V | - | - | - | 2.2A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|

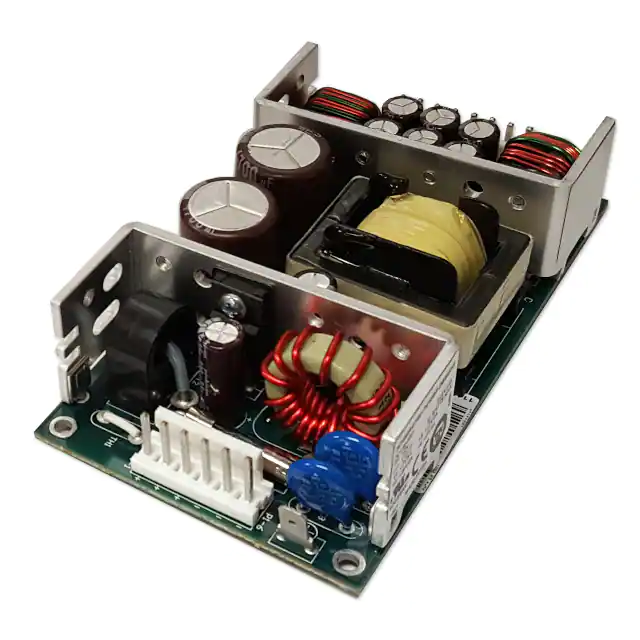

1011522DC1-80-1001 |
2,368 |
|
Datasheet | DC1-80 (80W) | Box | Active | Open Frame | 9V | 18V | 1 | 5V | - | - | - | 16A | 80W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
