Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCI-1758UDIO-BECARD DIGITAL I/O PCI |
2,310 |
|
- |
- | Bulk | Active | Digital I/O | Card | PCI | SCSI | 64 - Digital | ±25V | - | 64 - Digital | 5 ~ 40V | - | - | - | - |
|
IDAQ-763D-AEDAQ DEVICE ANALOG INPUT |
3,605 |
|
Datasheet | - | Box | Active | Analog Input | DAQ Device | - | Screw Terminal | - | - | - | 16 - Digital | 60V | - | - | - | 512 |
|
|
PCIE-1758DO-AECARD DIGITAL OUTPUT PCI |
2,060 |
|
- |
- | Bulk | Active | Digital Output | Card | PCI | SCSI | - | ±30V | - | 128 - Analog | ±40V | - | - | - | - |
|
|
PCIE-1758DI-AECARD DIGITAL INPUT PCI |
1,292 |
|
- |
- | Bulk | Obsolete | Digital Input | Card | PCI | SCSI | 128 - Digital | ±30V | - | - | ±40V | - | - | - | - |
|
|
PCI-1715U-BECARD ANALOG INPUT PCI |
2,786 |
|
- |
- | Bulk | Active | Analog Input | Card | PCI | - | 32 - Analog (Single-Ended, 16 Differential) | - | 12 Bits | - | - | - | - | - | 500k |
|

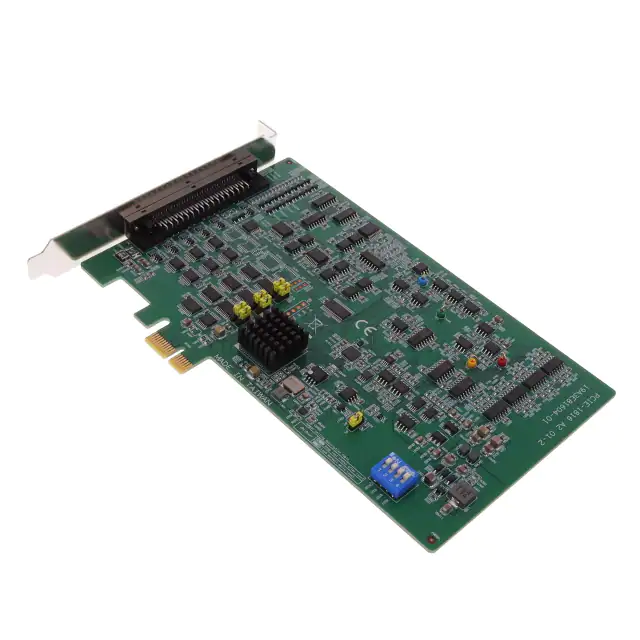

PCIE-1816-AECARD COUNTER/TIMER PCIE |
4,654 |
|
Datasheet | - | Box | Obsolete | Counter/Timer | Card | PCIe | SCSI | 16 - Analog (Single-Ended, 8 Differential), 24 - Digital | 0.8 ~ 2V | 16 Bits | 2 - Analog, 24 - Digital | 0.8 ~ 2V | 16 Bits | 24 | 2 | 1M |
|
|
PCI-1721-BECARD ANALOG OUTPUT PCI |
2,934 |
|
- |
- | Bulk | Active | Analog Output | Card | PCI | SCSI | 16 - Digital | 0.8V, 2V | 12 Bits | 4 - Analog, 16 - Digital | - | 12 Bits | - | 1 | - |
|
|
PCI-1727U-AECARD MULTIFUNCTION I/O PCI |
2,321 |
|
- |
PCI | Bulk | Active | Multifunction I/O | Card | PCI | SCSI | 16 - Digital | 0.8 ~ 2V | 14 Bits | 12 - Analog, 16 - Digital | ±10V | 14 Bits | 1 | - | - |
|

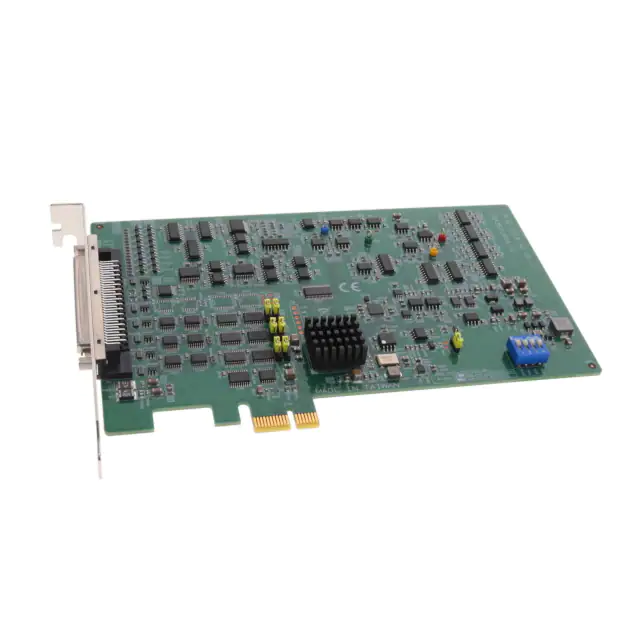

PCIE-1816H-AECARD COUNTER/TIMER PCIE |
2,757 |
|
Datasheet | - | Box | Obsolete | Counter/Timer | Card | PCIe | SCSI | 16 - Analog (Single-Ended, 8 Differential), 24 - Digital | 0.8 ~ 2V | 16 Bits | 2 - Analog, 24 - Digital | 0.8 ~ 2V | 16 Bits | 24 | 2 | 5M |
|
|
IDAQ-815-AEDAQ DEVICE ANALOG INP SCREW TERM |
3,279 |
|
- |
- | Bulk | Active | Analog Input | DAQ Device | Screw Terminal | Screw Terminal | 4 - Analog | - | 24 Bits | - | - | - | - | - | - |
