Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCIE-1802-AECARD ANALOG INPUT PCIE |
1,257 |
|
Datasheet | - | Box | Active | Analog Input | Card | PCIe | HDMI, Mini SCSI | 8 - Analog | ±10V | 24 Bits | 2 - Digital | - | - | - | - | 216k |
|
PCIE-1802L-AECARD ANALOG INPUT PCIE |
2,812 |
|
Datasheet | - | Box | Active | Analog Input | Card | PCIe | HDMI, Mini SCSI | 4 - Analog | ±10V | 24 Bits | 2 - Digital | - | - | - | - | 216k |
|

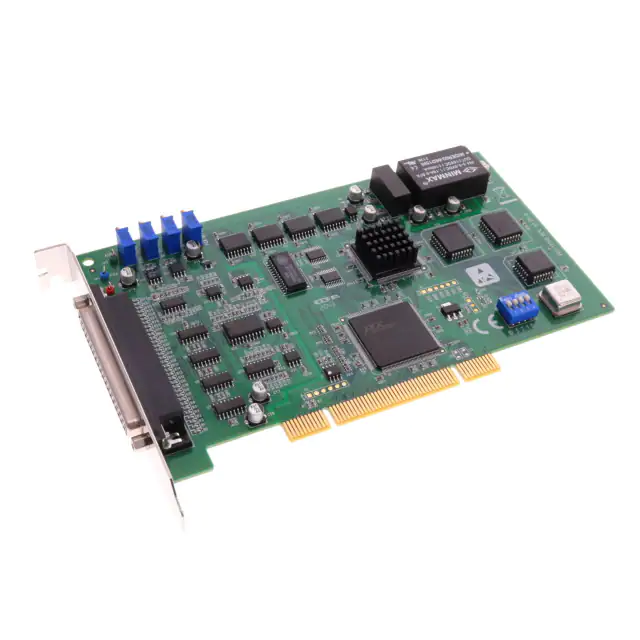

PCI-1715U-AECARD PCI 32CH ANALOG |
3,103 |
|
- |
- | Box | Obsolete | - | Card | PCI | D-Sub | 32 - Analog (Single-Ended, 16 Differential) | ±10V | 12 Bits | - | - | - | - | - | 500k |
|

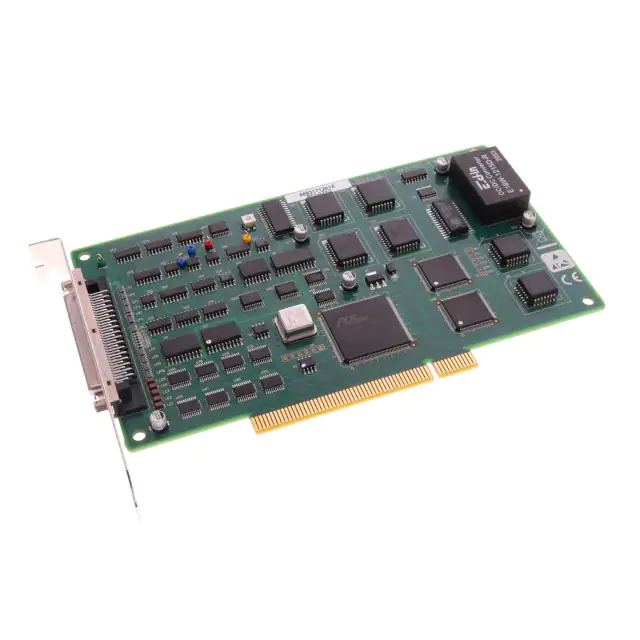

PCI-1712-AECARD COUNTER/TIMER PCI |
2,430 |
|
- |
- | Box | Obsolete | Counter/Timer | Card | PCI | SCSI | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | ±10V | 12 Bits | 18 - Analog (2), Digital (16) | 0.8 ~ 2V | 12 Bits | - | 3 | 1M |
|
|
PCI-1714UL-BECARD PCI 4CH |
1,663 |
|
Datasheet | - | Box | Obsolete | - | Card | PCI | BNC (4) | 4 - Analog (Single-Ended) | ±5V | 12 Bits | - | - | - | - | - | 10M |
|

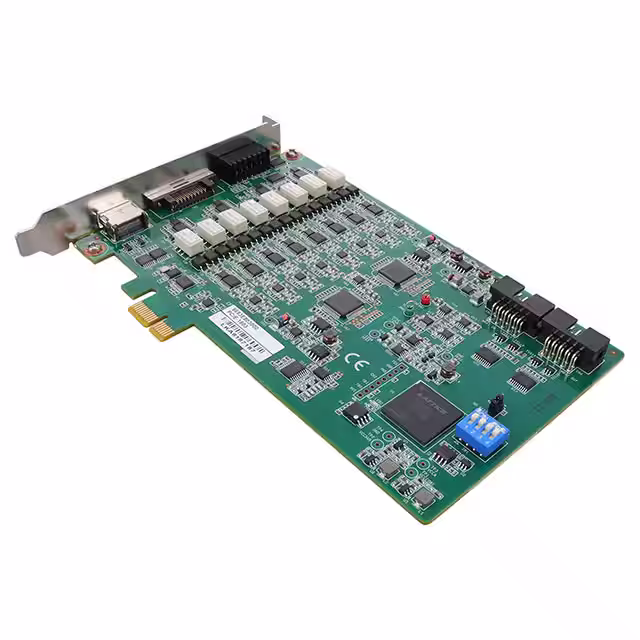

PCIE-1803-AECARD PCIE 8CH |
3,535 |
|
- |
- | Box | Obsolete | - | Card | PCIe | HDMI, Mini SCSI | 8 - Analog (Differential) | ±10V | 24 Bits | 2 - Digital | - | - | - | - | 128k |
|
MIC-1816R-AEDAQ DEVICE SCREW TERMINAL |
4,966 |
|
- |
- | Box | Obsolete | - | DAQ Device | Screw Terminal | HDMI, RJ45, USB (2) | 8 - Digital | ±10V | 16 Bits | 10 - Analog (2), Digital (8) | 5 ~ 40V | 16 Bits | - | 2 | 5M |
|
USB-5801-AEMODULE USB 3.0 4CH 24BIT |
1,473 |
|
Datasheet | - | Bulk | Active | - | Module | USB 3.0 | BNC, Screw Terminal | 8 - Analog (Differential), 4 - Digital | ±10V | 24 Bits | 6 - 2 - Analog, 4 - Digital | 5 ~ 40V | 24 Bits | - | - | 192k |
|

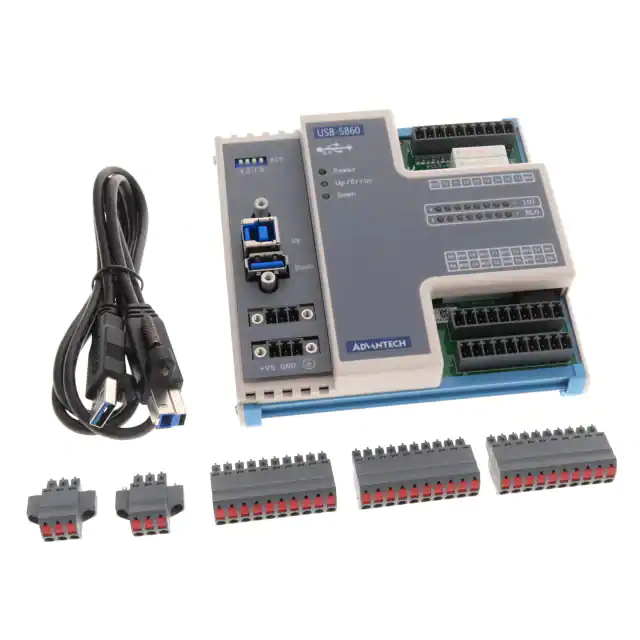

USB-5860-AEMODULE USB 3.0 |
2,886 |
|
Datasheet | - | Box | Active | - | Module | USB 3.0 | Screw Terminal | 8 - Digital | 3 ~ 30V | - | 8 - Relay | - | - | - | - | - |
|

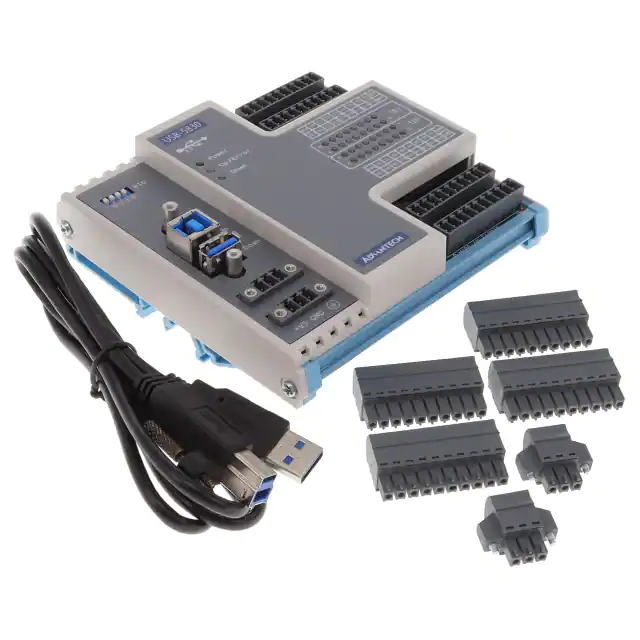

USB-5830-AEMODULE DIGITAL I/O USB 3.0 |
2,792 |
|
Datasheet | - | Box | Active | Digital I/O | Module | USB 3.0 | Screw Terminal | 16 - Digital | 3 ~ 30V | - | 16 - Digital | 5 ~ 40V | - | - | - | - |
