Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

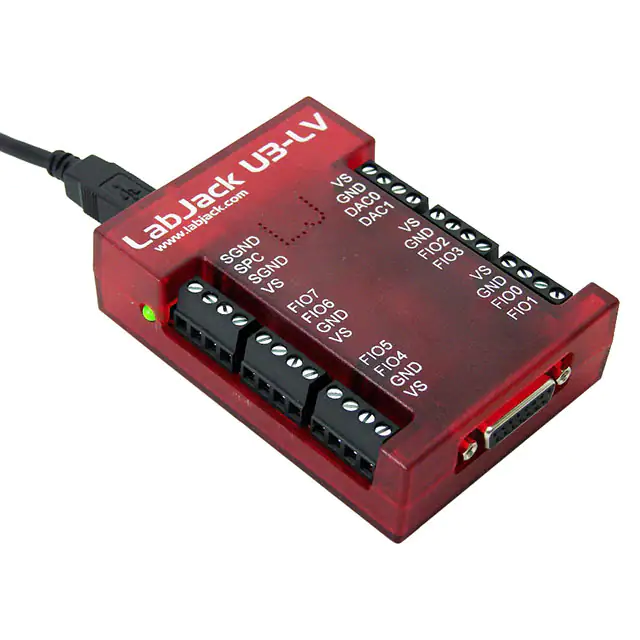

U3-LVDAQ DEVICE |
351 |
|
Datasheet | U3 | Bulk | Active | - | DAQ Device | - | - | 20 - Digital I/O (4), Analog/Digital I/O (16) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

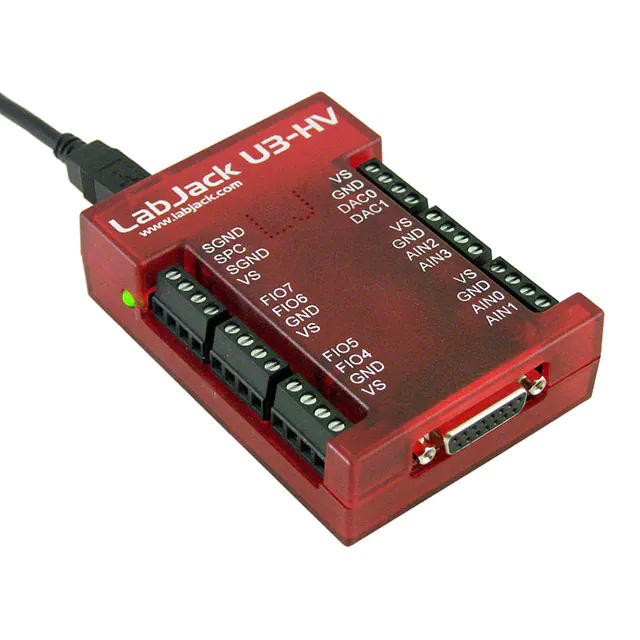

U3-HVDAQ DEVICE ANALOG IN |
407 |
|
Datasheet | U3 | Bulk | Active | - | DAQ Device | - | - | 20 - Digital I/O (4), Analog/Digital I/O (12), Analog (4) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

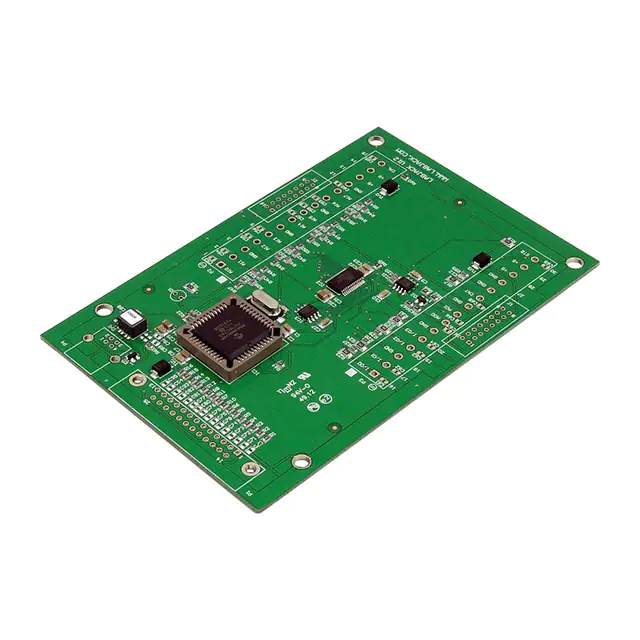

U12-NTHDAQ DEVICE MULTI |
2,750 |
|
Datasheet | U12 | Bulk | Active | - | DAQ Device | - | - | 28 - Digital I/O (20), Analog (8) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

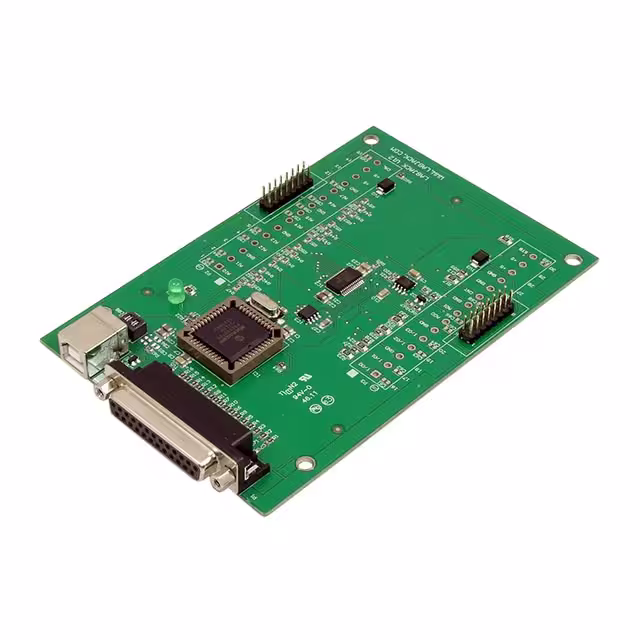

U12-PHDAQ DEVICE MULTI |
2,732 |
|
Datasheet | U12 | Bulk | Active | - | DAQ Device | - | - | 28 - Digital I/O (20), Analog (8) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

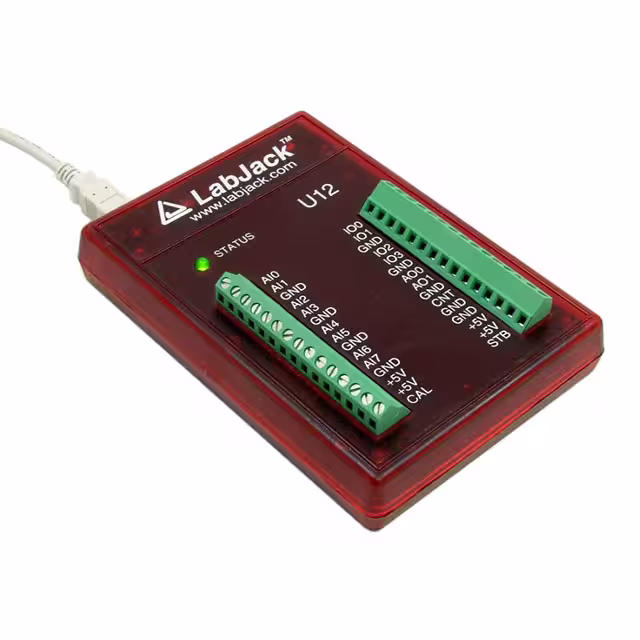

U12DAQ DEVICE MULTI |
2,626 |
|
Datasheet | U12 | Bulk | Active | - | DAQ Device | - | - | 28 - Digital I/O (20), Analog (8) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

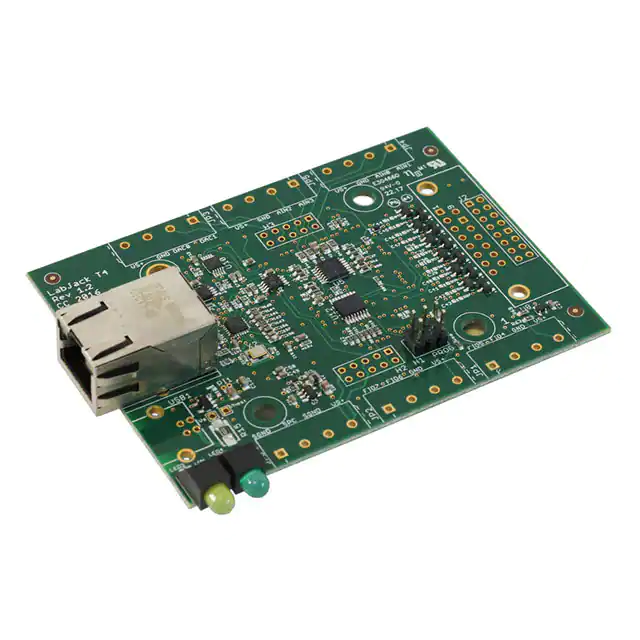

T4-OEMDAQ DEVICE ANALOG IN |
3,984 |
|
Datasheet | T | Bulk | Active | - | DAQ Device | - | - | 20 - Digital I/O (8), Analog/Digital I/O (8), Analog (4) | - | - | 18 - Analog (2), Solid State I/O (16) | - | - | - | - | - |
|

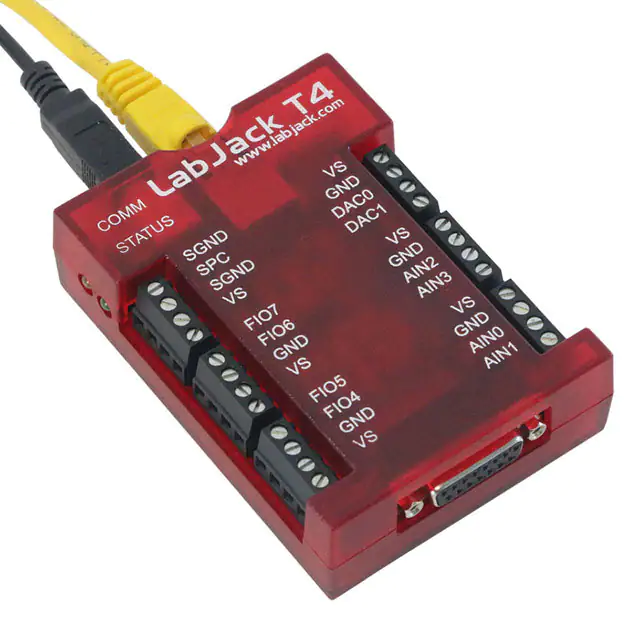

T4DAQ DEVICE MULTI |
3,199 |
|
Datasheet | T | Bulk | Active | - | DAQ Device | - | D-Sub | 20 - Digital I/O (8), Analog/Digital I/O (8), Analog (4) | - | - | 18 - Analog (2), Solid State I/O (16) | - | - | - | - | - |
|

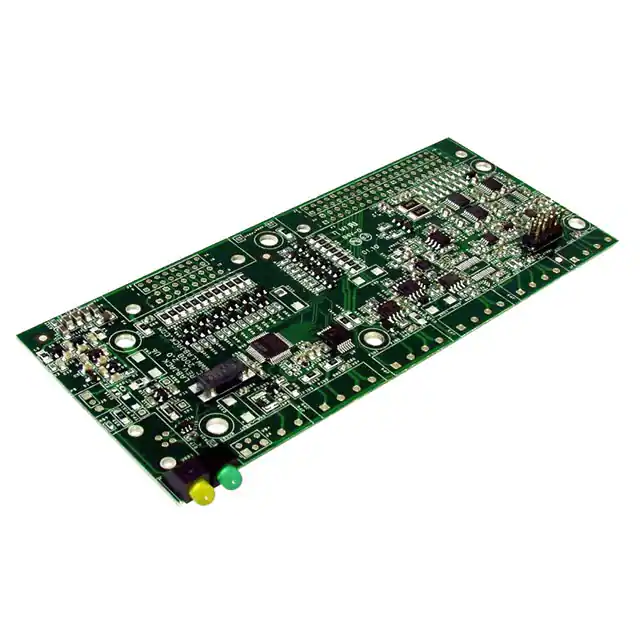

U6-OEMDAQ DEVICE ANALOG IN |
3,337 |
|
Datasheet | U6 | Bulk | Active | - | DAQ Device | - | - | 34 - Digital I/O (4), Analog/Digital I/O (16), Analog (14) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|
U6DAQ DEVICE ANALOG IN |
1,328 |
|
Datasheet | U6 | Bulk | Active | - | DAQ Device | - | - | 34 - Digital I/O (4), Analog/Digital I/O (16), Analog (14) | - | - | 22 - Analog (2), Solid State I/O (20) | - | - | - | - | - |
|

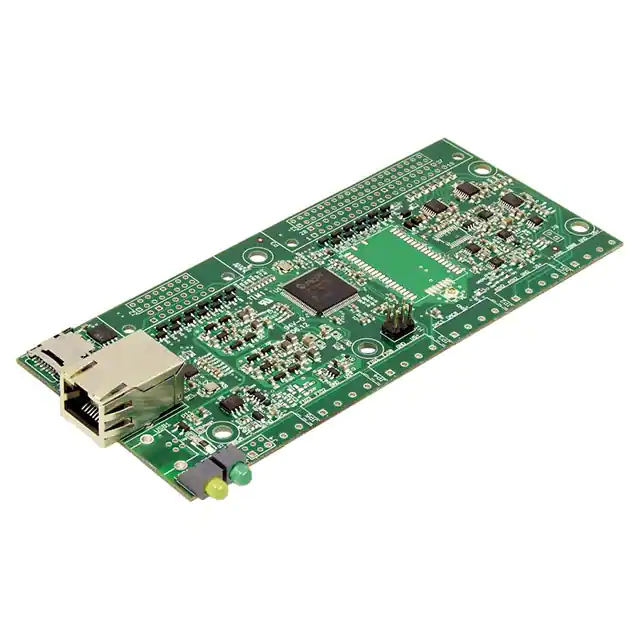

T7-OEMDAQ DEVICE ANALOG IN |
2,138 |
|
Datasheet | T | Bulk | Active | - | DAQ Device | - | - | 37 - Digital I/O (23), Analog (14) | - | - | 25 - Analog (2), Solid State I/O (23) | - | - | - | - | - |
