Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

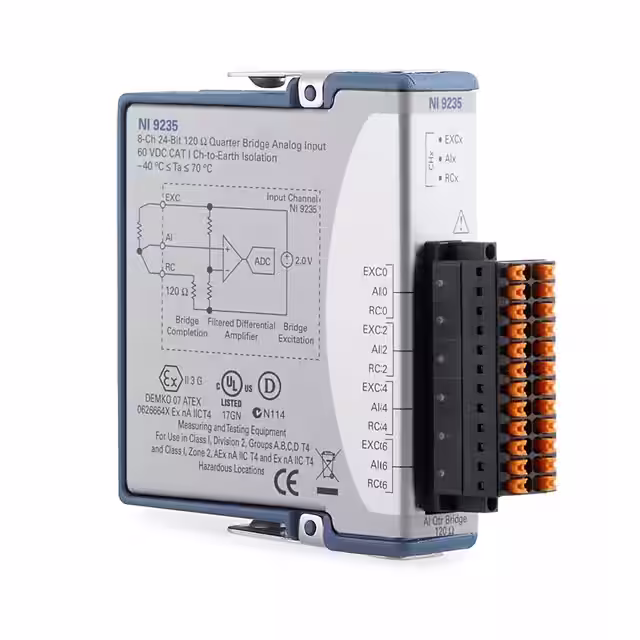

779993-01MODULE ANALOG INPUT |
3,372 |
|
Datasheet | C | Box | Obsolete | Analog Input | Module | - | Spring Terminal | 8 - Analog (Single-Ended) | - | 24 Bits | - | - | - | - | - | 10k - Simultaneous |
|
779656-01DAQ DEVICE ANALOG OUTPUT PCI |
1,114 |
|
- |
- | Box | Obsolete | Analog Output | DAQ Device | PCI | BNC | - | - | - | 1 - Analog | ±5V | 14 Bits | - | - | - |
|
|
777557-01DAQ DEVICE COUNTER/TIMER PCI |
2,139 |
|
- |
- | Box | Obsolete | Counter/Timer | DAQ Device | PCI | RTSI | 32 - Digital | 5V | - | 32 - Digital | - | - | 32 | 8 | - |
|
|
779701-03DAQ DEVICE REMOTE SWITCH PXI |
2,350 |
|
- |
- | Box | Obsolete | Remote Switch | DAQ Device | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
777795-01DAQ DEVICE ANALOG OUTPUT PXI |
4,336 |
|
- |
- | Box | Obsolete | Analog Output | DAQ Device | PXI | SCSI | 8 - Digital | ±10V | 12 Bits | 8 - Analog, 8 - Digital | ±10V | 12 Bits | 8 | 2 | 1M - Multiplexed |
|
|
778204-01DAQ DEVICE MULTIFUNCTION I/O PXI |
1,629 |
|
- |
- | Box | Obsolete | Multifunction I/O | DAQ Device | PXI | SCSI | 4 - Analog (Differential), 8 - Digital | ±42V | 12 Bits | 2 - Analog, 8 - Digital | ±10V | 12 Bits | 8 | 2 | 800k - Simultaneous |
|
|
781205-01DAQ DEVICE MULTIFUNCT I/O PXIE |
2,137 |
|
- |
- | Box | Obsolete | Multifunction I/O | Module | PXIe | - | 132 - Digital (Single-Ended, 66 - Differential) | - | - | 132 - Digital (Single-Ended, 66 - Differential) | - | - | 66 | - | 1.6G - Multiplexed |
|
|
781155-01DAQ DEVICE MULTIFUNCTION I/O PXI |
4,801 |
|
- |
- | Box | Obsolete | Multifunction I/O | Module | PXI | - | - | - | - | 2 - Analog | 6V, 8V | - | - | - | - |
|
|
778572-31DAQ DEVICE MULTIFUNCTION I/O PXI |
4,592 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | VHDCI | - | - | - | - | - | - | - | - | - |
|
|
779504-01CONTROL DEVICE MULTIFUNC I/O PXI |
3,557 |
|
- |
- | Box | Obsolete | Multifunction I/O | Control Device | PXI | - | - | - | - | - | - | - | - | - | - |
