Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
780108-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3,733 |
|
Datasheet | M | Box | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 32 - Digital | ±10V | 16 Bits | 2 - Analog, 32 - Digital | ±10V | 16 Bits | 32 | 2 | 400k - Multiplexed |
|
780106-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4,443 |
|
- |
- | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | - | 2 | 250k - Multiplexed |
|
|
779808-04DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,018 |
|
- |
M | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | - | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 250k - Multiplexed |
|
779619-01DAQ DEVICE MULTIFUNCTION I/O PCI |
2,859 |
|
Datasheet | M | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | D-Sub | 16 - Analog (Single-Ended, 8 - Differential), 6 - Digital | ±10V | 16 Bits | 2 - Analog, 4 - Digital | ±10V | 16 Bits | - | 2 | 250k - Multiplexed |
|

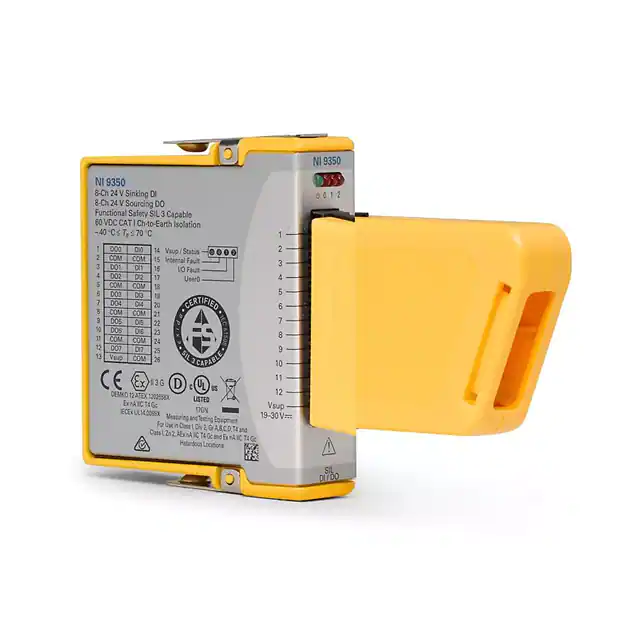

784445-01DAQ DEVICE DIGITAL I/O |
3,759 |
|
Datasheet | C | Box | Obsolete | Digital I/O | DAQ Device | - | - | - | 24V | - | - | - | - | - | - | - |
|
779295-01MODULE MULTIFUNCTION I/O PCI |
3,740 |
|
Datasheet | M | Box | Obsolete | Multifunction I/O | Module | PCI | VHDCI | 80 - Analog (Single-Ended, 40 - Differential), 24 - Digital | ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 250k - Multiplexed |
|
|
779630-01MODULE MULTIFUNCTION I/O PXI |
3,263 |
|
- |
M | Box | Obsolete | Multifunction I/O | Module | PXI | - | 32 - Analog (Single-Ended, 16 - Differential), 48 - Digital | ±10V | 16 Bits | 2 - Analog, 48 - Digital | ±10V | 16 Bits | 48 | 2 | 250k - Multiplexed |
|
|
779115-01DAQ DEVICE MULTIFUNCTION I/O PXI |
3,591 |
|
- |
- | Box | Obsolete | Multifunction I/O | DAQ Device | PXI | - | 32 - Analog (Single-Ended, 16 - Differential), 48 - Digital | ±10V | 16 Bits | 4 - Analog, 48 - Digital | ±10V | 16 Bits | 48 | 2 | 250k - Multiplexed |
|
|
778572-94DAQ DEVICE MULTIFUNCTION I/O PXI |
3,167 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
780874-01DAQ DEVICE DIGITAL INPUT |
1,808 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog (Differential) | ±60V | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
