Data Acquisition (DAQ)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Bus Connection | Front Connection | Number of Inputs and Type | Input Range | Input Resolution | Number of Outputs and Type | Output Range | Output Resolution | Bidirectional Channels | Counter/Timers | Sampling Rate (Per Second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784400-02DAQ DEVICE ANALOG INPUT |
1,849 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | 24 Bits | - | - | - | - | - | - |
|

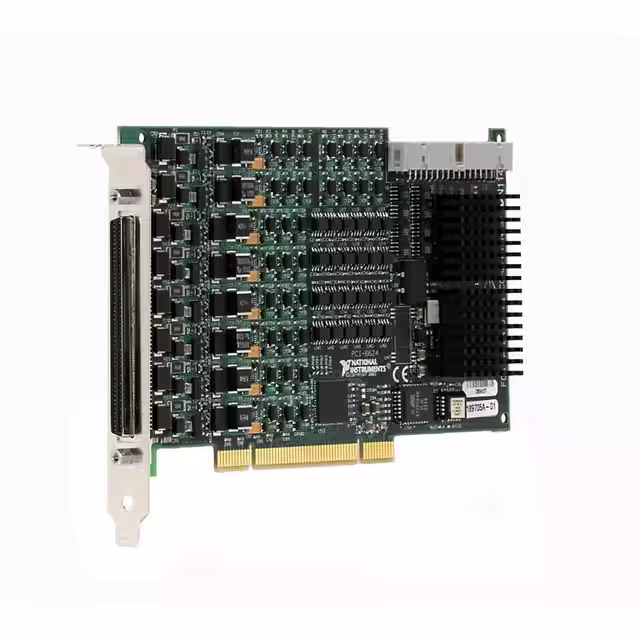

778834-01DAQ DEVICE COUNTER/TIMER PCI |
2,200 |
|
- |
- | Box | Active | Counter/Timer | DAQ Device | PCI | SCSI | 26 - Analog | - | - | 8 - Analog | - | - | - | 8 | - |
|
785814-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4,164 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Differential) | ±11V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 24 | 4 | 500k |
|
780587-75DAQ DEVICE MULTIFUNCT I/O PXIE |
4,764 |
|
- |
- | Box | Active | Multifunction I/O | Module | PXIe | - | 196 - Digital | - | - | - | - | - | - | - | - |
|
782260-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,326 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 8 - Analog (Differential), 16 - Digital | ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1.25M - Simultaneous |
|

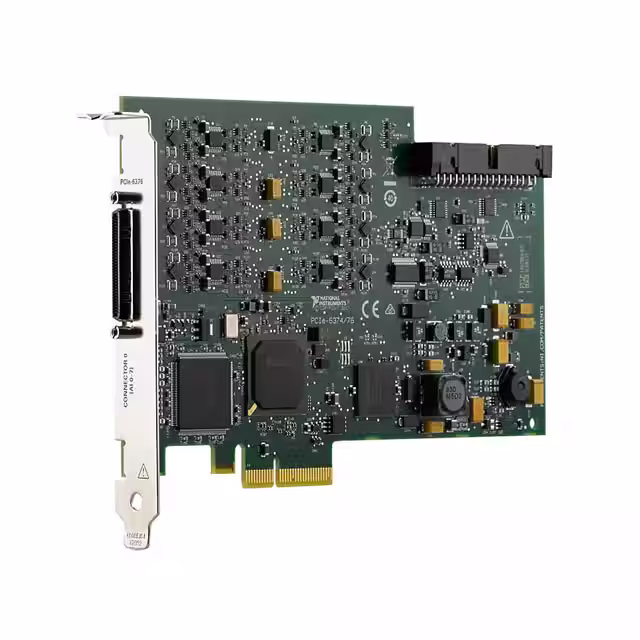

785809-01DAQ DEVICE MULTIFUNCT I/O PCIE |
1,313 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 8 - Analog (Differential) | ±11V | 16 Bits | 2 - Analog | ±10V | 16 Bits | 24 | 4 | 3.57M |
|
|
780587-15MODULE DIGITAL INPUT PXI |
4,339 |
|
- |
- | Box | Active | Digital Input | Module | PXI | - | 35 - Digital | - | - | - | - | - | - | - | - |
|
782261-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1,717 |
|
Datasheet | X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 8 - Analog (Differential), 16 - Digital | ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1.25M - Simultaneous |
|
|
781445-02DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,571 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 2M - Simultaneous |
|
|
781444-02DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2,702 |
|
Datasheet | - | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1.25M - Simultaneous |
