D-Sub Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector | 2nd Connector | Type | Number of Positions | Grade | Qualification | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M05-112MDSCABLE ASSY HD15 SHLD BLK 15.24M |
411 |
|
Datasheet | M05 | Bag | Active | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | - | - | 50.00' (15.24m) | Shielded | Black, Individual (Round) | SVGA Monitor | Gold | - |
|

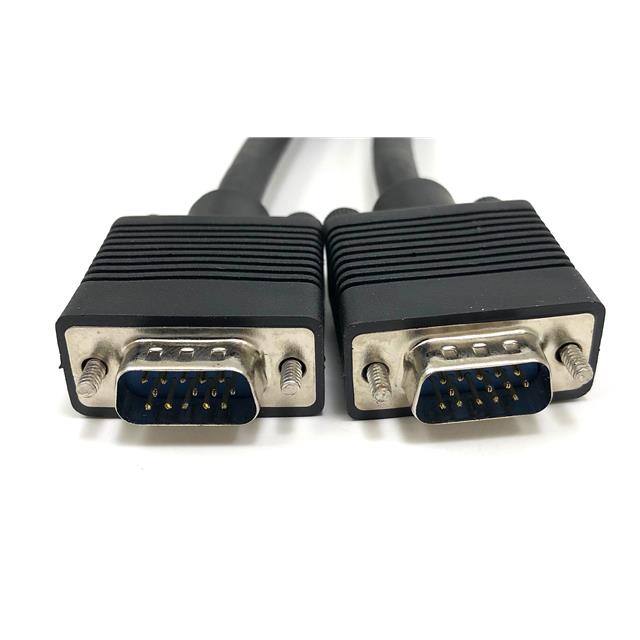

M05-112DS-100CABLE ASSY HD15 SHLD BLK 30.48M |
166 |
|
Datasheet | M05 | Bag | Active | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | - | - | 100.00' (30.48m) | Shielded | Black, Individual (Round) | SVGA Monitor | Gold | - |
|
M05-110KDSCABLE ASSY HD15 SHLD BLK 15.24M |
133 |
|
Datasheet | M05 | Bag | Active | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | - | - | 50.00' (15.24m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | - |
|
M05-1100DSCABLE ASSY HD15 SHLD BLK 30.48M |
4,399 |
|
- |
M05 | Bag | Active | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | - | - | 100.00' (30.48m) | Shielded | Black, Individual (Round) | SVGA Monitor | Gold | - |
|
M02-233CABLE ASSY DB09 SHLD GRAY 3.05M |
1,052 |
|
Datasheet | - | Bag | Active | Receptacle, Female Sockets | Receptacle, Female Sockets | DB9 | 9 | - | - | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | Null Modem | Gold | - |
|
A02-101CABLE ASSY DB25 SHLD GRAY 1.83M |
2,980 |
|
Datasheet | - | Bag | Active | Plug, Male Pins | Receptacle, Female Sockets | DB25 | 25 | - | - | 6.00' (1.83m) | Shielded | Gray, Individual (Round) | Extension, Serial | Gold | - |
|
A02-104CABLE ASSY DB25 SHLD GRAY 3.05M |
3,661 |
|
Datasheet | - | Bag | Active | Plug, Male Pins | Plug, Male Pins | DB25 | 25 | - | - | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | File Transfer | Gold | - |
|
M01-017CABLE ASSY DB25 SHLD GRAY 3.05M |
4,857 |
|
Datasheet | - | Bag | Active | Plug, Male Pins | Receptacle, Female Sockets | DB25 | 25 | - | - | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | IEEE 1284 Bidirectional | Gold | - |
|
M05-103CABLE ASSY DB09 SHLD GRAY 3.05M |
1,172 |
|
Datasheet | - | Bag | Active | Plug, Male Pins | Receptacle, Female Sockets | DB9 | 9 | - | - | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | Extension, Serial | Gold | - |
|
M05-105BCABLE ASSY DB09 SHLD GRAY 3.05M |
4,608 |
|
Datasheet | - | Bag | Active | Plug, Male Pins | Plug, Male Pins | DB9 | 9 | - | - | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | File Transfer | Gold | - |
