Current Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Measuring | Sensor Type | Current - Sensing | Number of Channels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage - Supply | Response Time | Current - Supply (Max) | Operating Temperature | Grade | Qualification | Polarization | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L37S300D15MSENSOR |
157 |
|
Datasheet | L37S D155 | Module | Tray | Active | DC | Hall Effect, Open Loop | 300A | 1 | Ratiometric, Voltage | - | - | ±1% | - | 15V | 3µs | 20mA | -40°C ~ 85°C | - | - | Unidirectional | Chassis Mount | - |
|
LA37S050S05KMCURRENT SENSOR (50A; 5V) -40 105 |
145 |
|
Datasheet | LA37S S05K | Module, Single Pass Through | Tray | Active | DC | Open Loop | 50A | 1 | Analog Voltage | 12.5mV/A | 100kHz | ±0.5% | ±1.8% | 4.5V ~ 5.5V | 3.5µs | 23mA | -40°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
LA37S100S05KMCURRENT SENSOR (100A; 5V) -40 10 |
142 |
|
Datasheet | LA37S S05K | Module, Single Pass Through | Tray | Active | DC | Open Loop | 100A | 1 | Analog Voltage | 6.25mV/A | 100kHz | ±0.5% | ±1.8% | 4.5V ~ 5.5V | 3.5µs | 23mA | -40°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
L34S500D15TCURRENT SENSOR (500A; 15V) |
115 |
|
Datasheet | L34S D15T | Module, Single Pass Through | Tray | Active | AC/DC | Hall Effect, Open Loop | 500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±0.5% | - | ±12V ~ 15V | 5µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Chassis Mount | - |
|
|
L18P050D15-OPCURRENT SENSOR (50A; 15V) |
697 |
|
Datasheet | L18PXXXD15 | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 18mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
|
L18P003D15-OPCURRENT SENSOR (3A; 15V) |
442 |
|
Datasheet | L18PXXXD15 | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 3A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 18mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
|
L18P010D15-OPCURRENT SENSOR (10A; 15V) |
589 |
|
Datasheet | L18PXXXD15 | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 10A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 5µs | 18mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
F02P015S05LSENSOR |
352 |
|
Datasheet | F02P | Module | Tray | Active | AC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.67mV/A | 300kHz | ±1% | ±1.2% | 5V | 0.3µs | 30mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

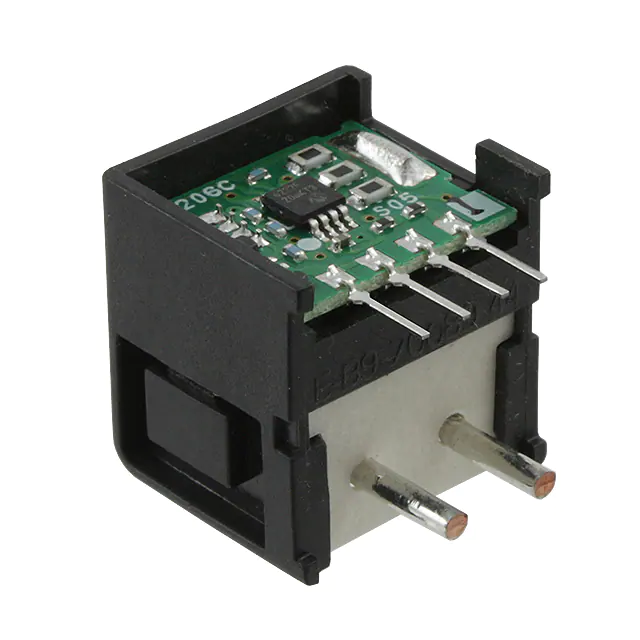

L18P020S05SENSOR CURRENT HALL 20A AC/DC |
211 |
|
Datasheet | L18PXXXS05 | Module | Bulk | Active | AC/DC | Hall Effect, Open Loop | 20A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | 5V | 5µs | 15mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
F03P006S05LSENSOR |
405 |
|
Datasheet | F03P | Module | Tray | Active | AC | Flux Gate, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | - | 4.75V ~ 5.25V | 0.3µs | 25mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
