Current Sensors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | For Measuring | Sensor Type | Current - Sensing | Number of Channels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage - Supply | Response Time | Current - Supply (Max) | Operating Temperature | Grade | Qualification | Polarization | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L03S400D15WJCURRENT SENSOR (400A; 15V) |
1,761 |
|
Datasheet | L03S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 400A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 10µs | 20mA | -10°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
|
S22P015S05SENSOR CURRENT HALL 15A AC/DC |
1,374 |
|
Datasheet | - | Module | Bulk | Obsolete | AC/DC | Hall Effect, Closed Loop | 15A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.2% | - | 5V | 1µs | 12.5mA | -10°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
L03S300D15WMSENSOR |
1,812 |
|
Datasheet | L03S | Module | Tray | Obsolete | AC/DC | Hall Effect, Open Loop | 300A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | 15V | 10µs | 20mA | -10°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
|
|
S23P50/100D15M2CURRENT SENSOR (50A/100A; 15V) |
2,302 |
|
Datasheet | S23P M2 | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 50A, 100A | 1 | Ratiometric, Current | - | - | ±0.15% | ±0.25% | ±12V ~ 15V | 500ns | 16mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
|
S22P025S05SENSOR CURRENT HALL 25A AC/DC |
1,072 |
|
Datasheet | - | Module | Bulk | Obsolete | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.2% | - | 5V | 1µs | 12.5mA | -10°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

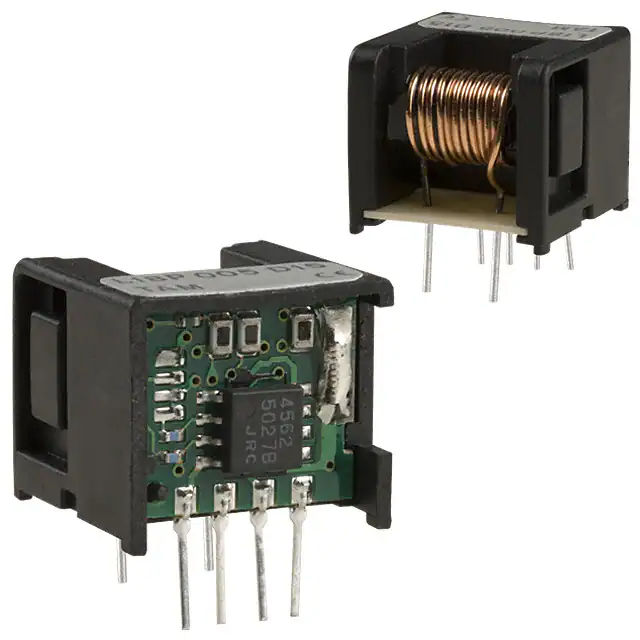

L18P005D15SENSOR CURRENT HALL 5A AC/DC |
2,402 |
|
Datasheet | - | Module | Bulk | Obsolete | AC/DC | Hall Effect, Open Loop | 5A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±1% | - | ±15V | 5µs | 15mA | -30°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|
|
L31S100S05FSSENSOR CURRENT HALL 100A AC/DC |
1,456 |
|
Datasheet | L31SXXXS05S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.5% | - | 5V | 5µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
L03S500D15WJCURRENT SENSOR (500A; 15V) |
2,896 |
|
Datasheet | L03S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 500A | 1 | Ratiometric, Voltage | - | - | ±1% | - | ±12V ~ 15V | 10µs | 20mA | -10°C ~ 80°C | - | - | Bidirectional | Chassis Mount | - |
|
F03P015S05SENSOR CURRENT FLUX GATE 15A AC |
4,876 |
|
Datasheet | F03P | Module | Bulk | Obsolete | AC | Flux Gate, Closed Loop | 15A | 1 | Ratiometric, Voltage | 41.7mV/A | 300kHz | ±1% | ±1.2% | 5V | 0.3µs | 30mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
L31S200S05FSSENSOR CURRENT HALL 200A AC/DC |
1,996 |
|
Datasheet | L31SXXXS05S | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | - | DC ~ 100kHz | ±0.5% | - | 5V | 5µs | 15mA | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
