Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

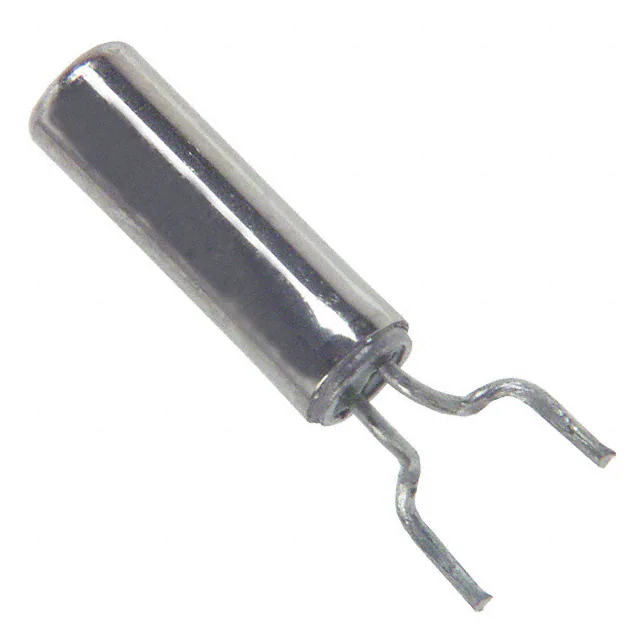

CMR200T32768DZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
36,050 |
|
Datasheet | CMR200T | Cylindrical Can, Radial | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 12.5pF | 50 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.079" (2.00mm) |
|
HCM494000000ABJTCRYSTAL 4.0000MHZ 18PF SMD |
78,471 |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 4 MHz | ±50ppm | ±30ppm | 18pF | 150 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
CFS-20632768HZFBCRYSTAL 32.7680KHZ 12.5PF TH |
22,554 |
|
Datasheet | CFS-206 | Cylindrical Can, Radial | Bulk | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 35 kOhms | Fundamental | -20°C ~ 70°C | - | Through Hole | - | 0.075" Dia (1.90mm) | 0.244" (6.20mm) |
|
CM315D32768EZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
239,166 |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±10ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
CM315D32768HZFTCRYSTAL 32.7680KHZ 12.5PF SMD |
156,565 |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±5ppm | 12.5pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
|
HCM498000000ABJTCRYSTAL 8.0000MHZ 18PF SMD |
88,591 |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 8 MHz | ±50ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
|
HCM4924000000ABJTCRYSTAL 24.0000MHZ 18PF SMD |
35,024 |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 24 MHz | ±50ppm | ±30ppm | 18pF | 50 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
|
HCM497372800ABJTCRYSTAL 7.3728MHZ 18PF SMD |
23,769 |
|
Datasheet | HCM49 | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 7.3728 MHz | ±50ppm | ±30ppm | 18pF | 100 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.169" (4.30mm) |
|
CS325S25000000ABJTCRYSTAL 25.0000MHZ 18PF SMD |
120,132 |
|
Datasheet | CS325S | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 25 MHz | ±50ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -10°C ~ 60°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.024" (0.60mm) |
|
|
CM315D32768DZCTCRYSTAL 32.7680KHZ 9PF SMD |
34,251 |
|
Datasheet | CM315D | 2-SMD, No Lead | Tape & Reel (TR) | Active | kHz Crystal (Tuning Fork) | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
