Crystals
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Load Capacitance | ESR (Equivalent Series Resistance) | Operating Mode | Operating Temperature | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT49S-33.8688MAGQ-THC49 SMD , +/-30PPM , +/-50PPM ( |
1,598 |
|
Datasheet | QT49S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 33.8688 MHz | ±50ppm | ±30ppm | - | 80 Ohms | 3rd Overtone | - | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | - |
|
|
QT49S-11.0592MAGK-THC49 SMD , +/-30PPM , +/-50PPM ( |
1,568 |
|
Datasheet | QT49S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 11.0592 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | - |
|
QT325G-32.000MAHV-T3.2X2.5 XTAL 30PPM 30PPM 8PF |
1,497 |
|
Datasheet | QT325G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 32 MHz | ±30ppm | ±30ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
QT49S-11.2896MAGK-THC49 SMD , +/-30PPM , +/-50PPM ( |
1,457 |
|
Datasheet | QT49S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 11.2896 MHz | ±50ppm | ±30ppm | 20pF | 40 Ohms | Fundamental | - | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | - |
|
QT325G-26.000MEIV-T3.2X2.5 XTAL 10PPM 20PPM 8PF |
1,321 |
|
Datasheet | QT325G | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 26 MHz | ±20ppm | ±10ppm | 8pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
|
QT49S-9.216MAHJ-THC49 XTAL 30PPM 30PPM 18PF |
1,100 |
|
Datasheet | QT49S | HC-49/US | Tape & Reel (TR) | Active | MHz Crystal | 9.216 MHz | ±30ppm | ±30ppm | 18pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.161" (4.10mm) |
|

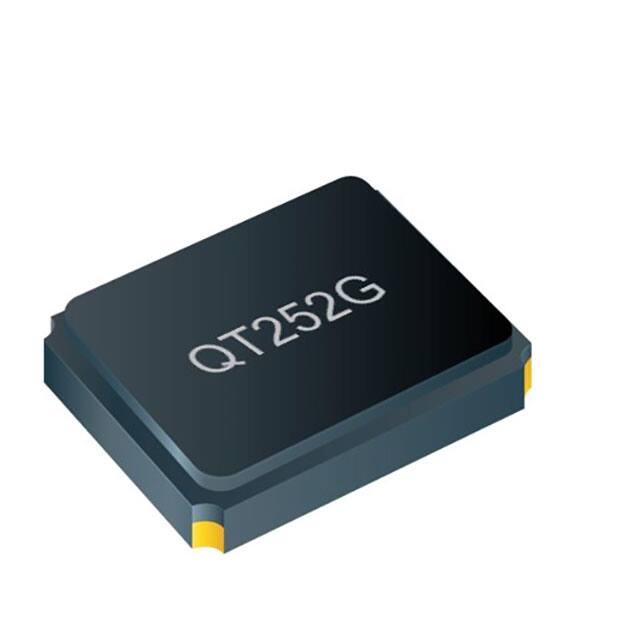

QT252G-24.576MAHE-T2.5X2.0 , +/-30PPM , +/-30PPM (- |
3,949 |
|
Datasheet | 7S | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 24.576 MHz | ±30ppm | ±30ppm | 12pF | 80 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.033" (0.85mm) |
|
|
QT252G-27.000MAHE-T2.5X2.0 , +/-30PPM , +/-30PPM (- |
3,152 |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 27 MHz | ±30ppm | ±30ppm | 12pF | 60 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.033" (0.85mm) |
|
|
QT252G-14.31818MAHE-T2.5X2.0 , +/-30PPM , +/-30PPM (- |
3,014 |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 14.31818 MHz | ±30ppm | ±30ppm | 12pF | 150 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.033" (0.85mm) |
|
QT325S-38.400MAHE-T3.2X2.5 XTAL 30PPM 30PPM 12PF |
6,925 |
|
Datasheet | QT325S | 4-SMD, No Lead | Tape & Reel (TR) | Active | MHz Crystal | 38.4 MHz | ±30ppm | ±30ppm | 12pF | 50 Ohms | Fundamental | -40°C ~ 85°C | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.031" (0.80mm) |
