Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5EC-QR2ABM-808CONTROL TEMP RELAY/VOLT 100-240V |
3,545 |
|
Datasheet | E5EC | Box | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
|
|
E5EC-RX4DBM-008CONTROL TEMP RELAY OUT 24V |
1,779 |
|
Datasheet | E5EC | Box | Active | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (5) | On/Off, Proportional (PID) | RS-485 | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Spring Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
|

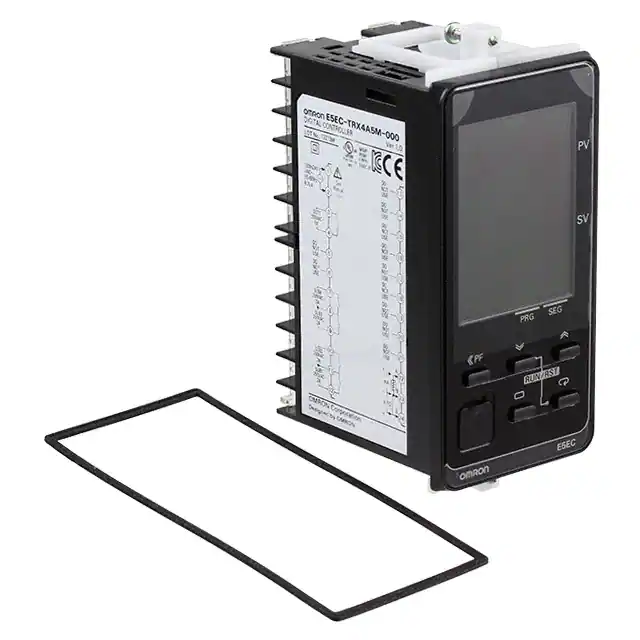

E5EC-TRX4A5M-000CONTROL TEMP/PROCESS 100-240V |
3,166 |
|
Datasheet | E5EC-T | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (5) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.710" (18.00mm), 0.433" (11.00mm), 0.307" (7.80mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
G3PX-260EUNCONTROL PWR 100/110V 200/230V |
3,037 |
|
Datasheet | G3PX, EUN | Bulk | Obsolete | Power Controller | 4 ~ 20mA, 1 ~ 24VDC | - | - | - | - | - | - | 100/110VAC, 200/230VAC | - | Chassis Mount | Screw Terminal | - | - |
|
E5CC-CX3D5M-006CONTROL TEMP/PROC 24V PANEL MT |
2,294 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5CC-CX3A5M-006CONTROL TEMP/PROCESS 100-240V |
1,359 |
|
Datasheet | E5CC | Box | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
E5AC-QQ4A5M-000CONTROL TEMP/PROC RELAY/VOLT OUT |
2,914 |
|
Datasheet | E5AC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4), Voltage (External SSR) (2) | On/Off, Proportional (PID) | - | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.984" (25.00mm), 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-CQ3A5M-006CONTROL TEMP/PROCESS 100-240V |
1,495 |
|
Datasheet | E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5CC-TRX3A5M-003CONTROL TEMP/PROCESS 100-240V |
1,733 |
|
Datasheet | E5CC-T | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
|
|
E5CC-TRX3D5M-003CONTROL TEMP/PROC RELAY OUT 24V |
3,181 |
|
Datasheet | E5CC-T | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Heater Fault Detection |
