Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5CC-QX0DUM-000CONTROL TEMP/PROC VOLT OUT 24V |
3,736 |
|
Datasheet | E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
|
E5CC-QX1DUM-000CONTROL TEMP/PROC 24V PANEL MT |
4,963 |
|
Datasheet | E5CC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.600" (15.20mm), 0.280" (7.10mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant | - |
|
E5DC-QX0ABM-015CNTRL TEMP SSR OUT 100-240VAC |
4,610 |
|
Datasheet | E5DC | Bulk | Active | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | 0.334" (8.50mm), 0.314" (8.00mm) | 100 ~ 240VAC | - | DIN Rail | Spring Terminal | IP20 | - |
|
|
E5GN-Q03TC-FLK AC/DC24CONTROL TEMP VOLTAGE OUT 24V |
2,822 |
|
Datasheet | E5GN | Bulk | Obsolete | Temperature Controller (Type B, E, J, K, L, N, R, S, T, U) | -200°C ~ 1800°C, 0 ~ 50mV | Voltage (External SSR) | On/Off, Proportional (PID) | RS-485 (CompoWay/F, Modbus) | 4, 4 | LCD - Dual Color Characters, Backlight | - | 24VAC/DC | Rectangular - 45.00mm x 22.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5AZ-C3T AC100-240CONTROL TEMP 100-240V PANEL MT |
3,417 |
|
Datasheet | E5AZ | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U) | -200°C ~ 1800°C, 0 ~ 50mV | Analog, Relay (3) | On/Off, Proportional (PID) | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.590" (15.00mm), 0.374" (9.50mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
E5CSV-R1T AC100-240CONTROL TEMP RELAY OUT 100-240V |
4,354 |
|
Datasheet | E5CSV | Bulk | Last Time Buy | Temperature Controller (RTD, Type J, K, L, N, R, T, U) | -99°C ~ 1700°C | Relay (2) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|

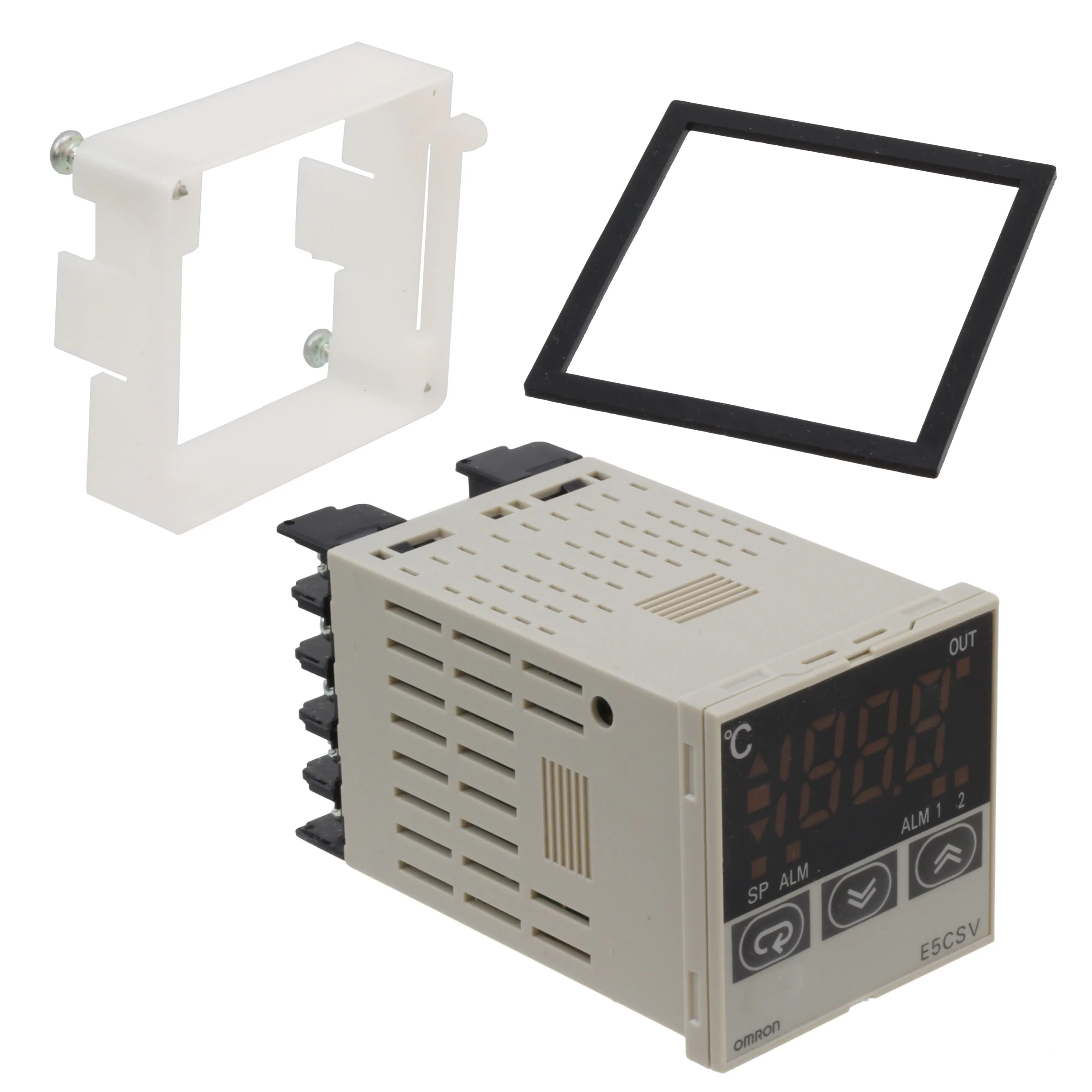

E5CSV-Q1KJ-W AC100-240CONTROL TEMP 100-240V PANEL MT |
2,851 |
|
Datasheet | E5CSV | Bulk | Last Time Buy | Temperature Controller (Type J, K, L) | 0°C ~ 999°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
|
E5CSV-Q1P-W AC100-240CONTROL TEMP 100-240V PANEL MT |
4,194 |
|
Datasheet | E5CSV | Bulk | Last Time Buy | Temperature Controller (RTD) | -50°C ~ 400°C | Relay, Voltage (External SSR) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
|
E5CSV-R1G-F AC100-240CONTROL TEMP RELAY OUT 100-240V |
3,417 |
|
Datasheet | E5CSV | Bulk | Active | Temperature Controller (Thermistor, NTC) | -50°C ~ 300°C | Relay (2) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
|
E5CSV-R1P-W AC100-240CONTROL TEMP RELAY OUT 100-240V |
3,505 |
|
Datasheet | E5CSV | Bulk | Last Time Buy | Temperature Controller (RTD) | -50°C ~ 400°C | Relay (2) | On/Off, Proportional (PID) | - | 3.5 | LED - Red Characters | 0.531" (13.50mm) | 100 ~ 240VAC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Sensor Fault Detection |
