Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

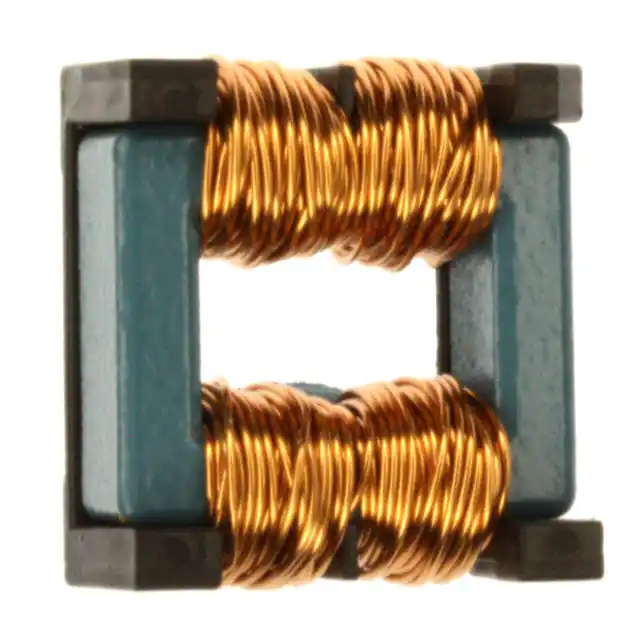

B82733F2192B001CMC 15MH 1.9A 2LN TH |
3,847 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.9A | 279mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82732R2901B030CMC 27MH 900MA 2LN TH |
12,487 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 900mA | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82733F2142B001CMC 27MH 1.4A 2LN TH |
1,193 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82730U3451A020CMC 10MH 450MA 2LN TH |
8,696 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 450mA | 1.75Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
B82730G3401A020CMC 15MH 400MA 2LN TH |
1,283 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 2.4Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
B82730G3262A020CMC 330UH 2.6A 2LN TH |
680 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 2.6A | 60mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
B82730U3951A020CMC 2.2MH 950MA 2LN TH |
851 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 950mA | 410mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
B82731M2351A030CMC 100MH 350MA 2LN TH |
5,024 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 350mA | 4.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

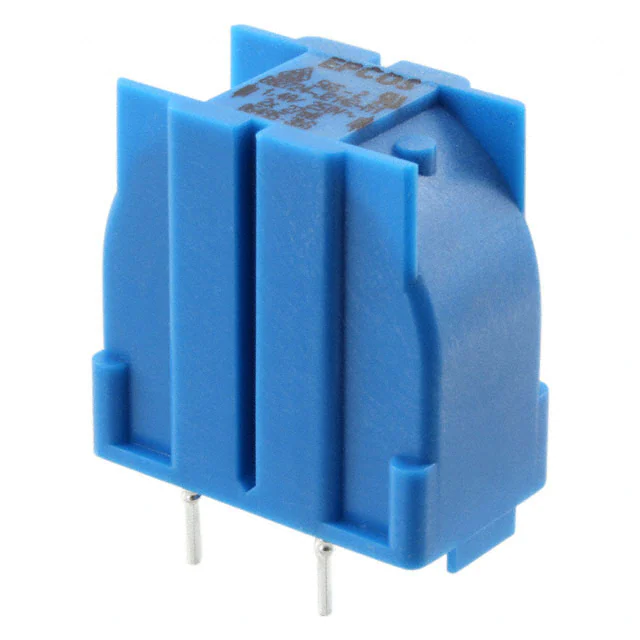

B82724J2142N001CMC 27MH 1.4A 2LN TH |
791 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2501U031CMC 280UH 500MA 2LN TH |
380 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 280 µH @ 10 kHz | 500mA | 1.14Ohm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
