Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

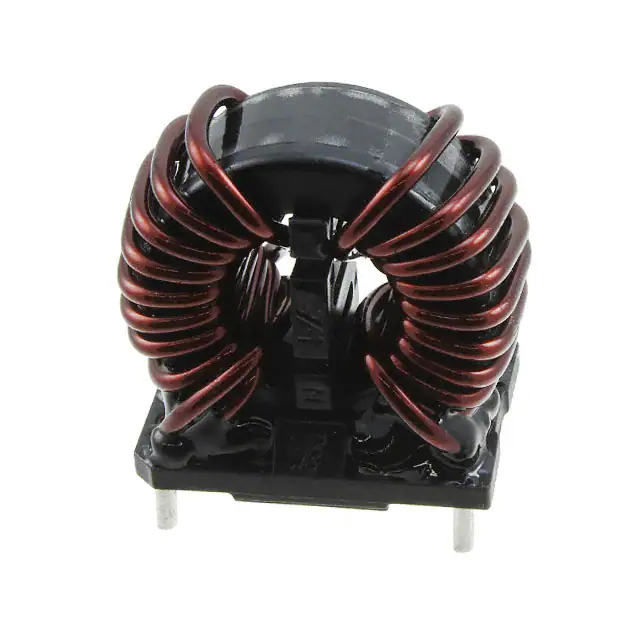

7448052502CMC 2.5MH 25A 2LN TH |
131 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 25A | 2.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

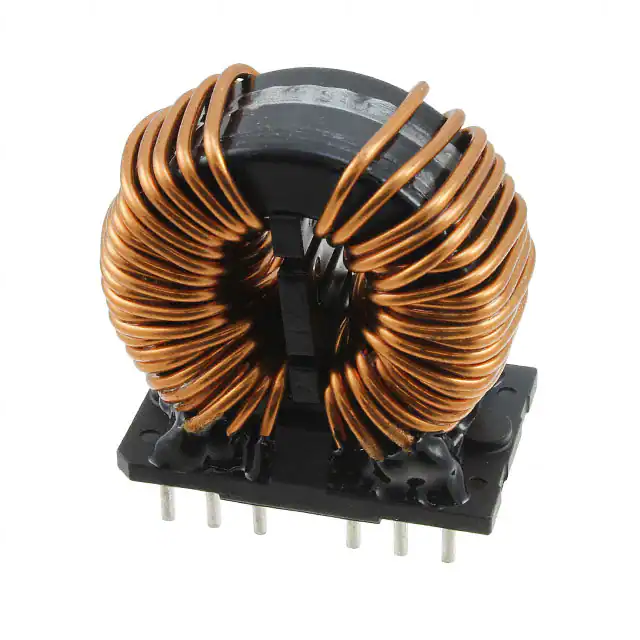

7448063801CMC 1.5MH 38A 2LN TH |
229 |
|
Datasheet | Vertical, 12 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 38A | 2.3mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
784231371CMC 280MA 2LN 370OHM SMD AECQ200 |
1,620 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
.jpg)
|
744231061CMC 400MA 2LN 67OHM SMD AEC-Q200 |
4,132 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744231261CMC 300MA 2LN 260OHM SMD AECQ200 |
1,024 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744230450CMC 650MA 2LN 45OHM SMD AEC-Q200 |
5,332 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 650mA | 110mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
.jpg)
|
744232601CMC 260MA 2LN 600OHM SMD AECQ200 |
4,103 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232161CMC 340MA 2LN 160OHM SMD AECQ200 |
3,691 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232261CMC 310MA 2LN 260OHM SMD AECQ200 |
1,766 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744233900CMC 280MA 2LN 90OHM SMD AEC-Q200 |
7,838 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
