Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750341634CMC 10MH 1A 2LN TH |
1,739 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 10 kHz | 1A | 510mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
744795080CMC 80UH 500MA 2LN 1.34 OHM TH |
3,740 |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 1.34 Ohms @ 100 MHz | 80 µH @ 1 kHz | 500mA | 60mOhm | 80V | - | -40°C ~ 85°C | - | - | - | - | - |
|

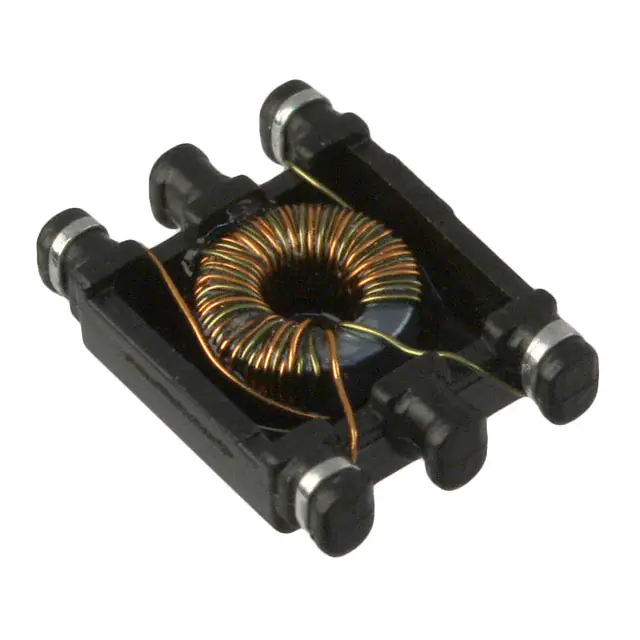

750040299CMC 47UH 3LN SMD |
2,178 |
|
Datasheet | Horizontal, 4 PC Pad | - | 3 | - | 47 µH @ 100 kHz | - | 500mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

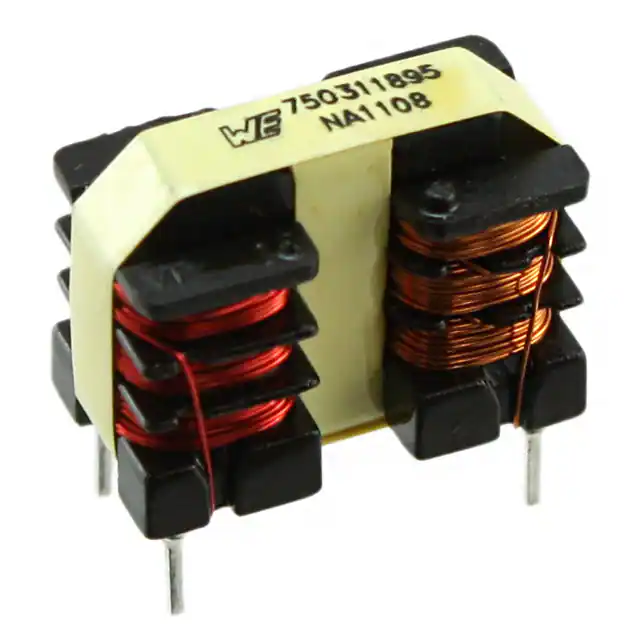

750311895CMC 6MH 450MA 2LN TH |
4,611 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 6 mH @ 10 kHz | 450mA | 1.6Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

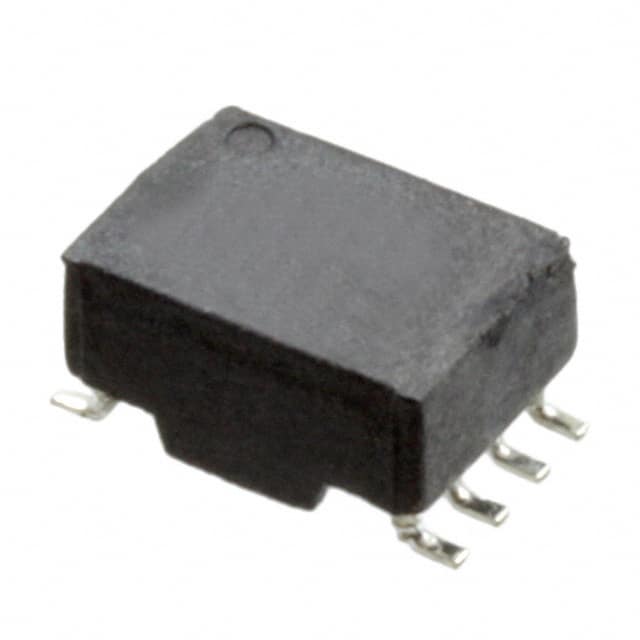

750510303CMC 20UH 4LN SMD |
4,456 |
|
Datasheet | 8-SOIC (0.280", 7.11mm Width) | - | 4 | - | 20 µH @ 100 kHz | - | 350mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

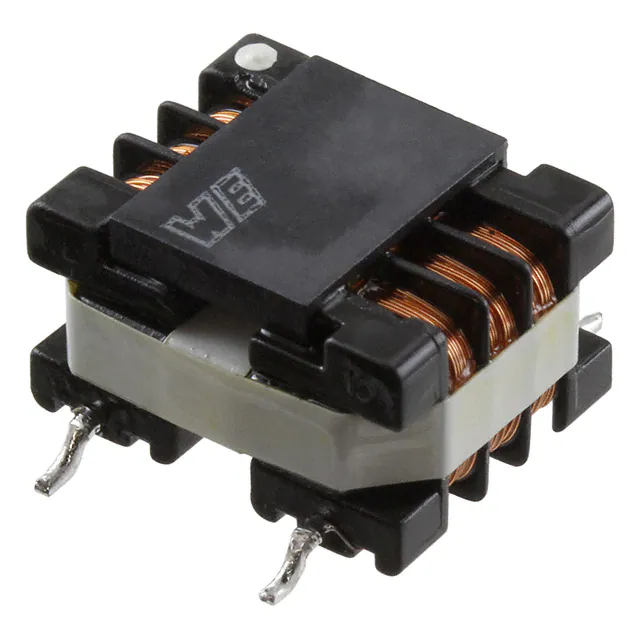

750315740CMC 6MH 450MA 2LN SMD |
1,776 |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 6 mH @ 10 kHz | 450mA | 1.6Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315742CMC 24MH 240MA 2LN SMD |
1,814 |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 24 mH @ 10 kHz | 240mA | 6.3Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315743CMC 45MH 180MA 2LN SMD |
2,744 |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 45 mH @ 10 kHz | 180mA | 10.05Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315744CMC 57MH 160MA 2LN SMD |
3,278 |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 57 mH @ 10 kHz | 160mA | 15.7Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
750315745CMC 140MH 90MA 2LN SMD |
3,160 |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 140 mH @ 10 kHz | 90mA | 39Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
