Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

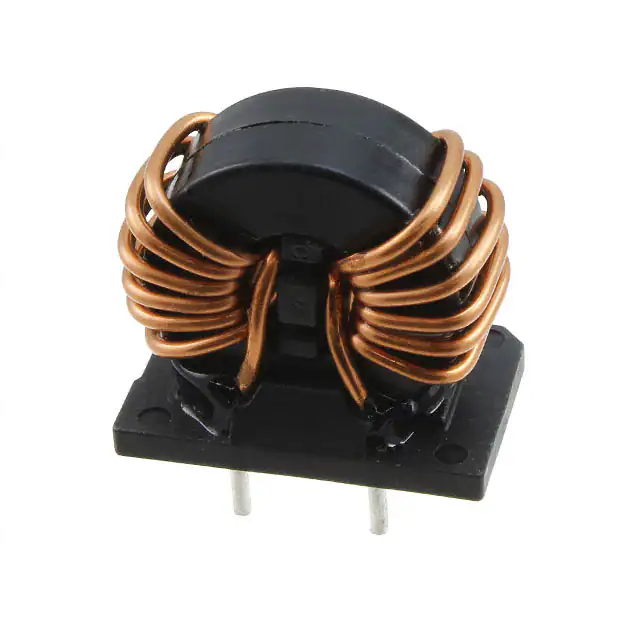

7448041502CMC 2MH 15A 2LN TH |
188 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 15A | 5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
748032455CMC 245 PH 300MA 2LN 1.6 OHM SMD |
2,000 |
|
Datasheet | 0504 (1210 Metric), 6 PC Pad | Signal Line | 2 | 1.6 Ohms @ 100 MHz | 245 pH @ 100 MHz | 300mA | 2.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
784231091CMC 370MA 2LN 90OHM SMD AEC-Q200 |
1,309 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
.jpg)
|
744231181CMC 330MA 2LN 180OHM SMD AECQ200 |
3,794 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744230181CMC 400MA 2LN 180OHM SMD AECQ200 |
3,250 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 400mA | 210mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|

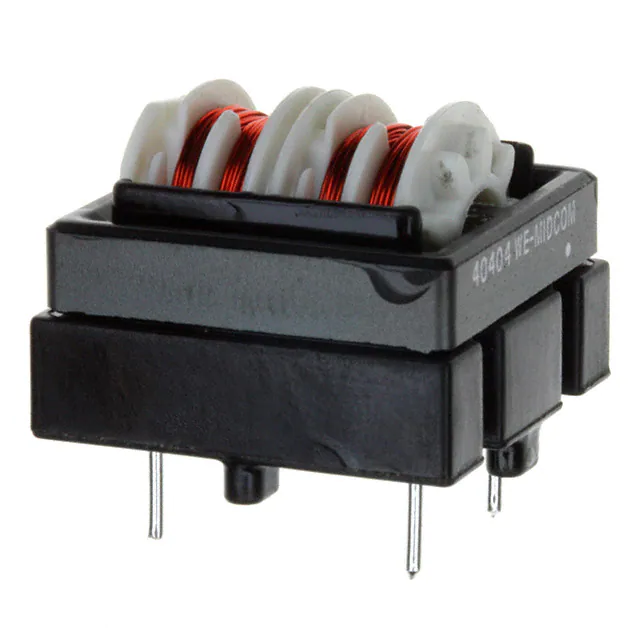

7448640404CMC 22MH 400MA 2LN TH |
369 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 400mA | 1.61Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640417CMC 22MH 400MA 2LN TH |
304 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 10 kHz | 520mA | 1.87Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640395CMC 820UH 2A 2LN TH |
249 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 820 µH @ 10 kHz | 2A | 70mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640412CMC 3.9MH 1A 2LN TH |
155 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 1A | 270mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448640401CMC 6.8MH 800MA 2LN TH |
120 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 800mA | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
