Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

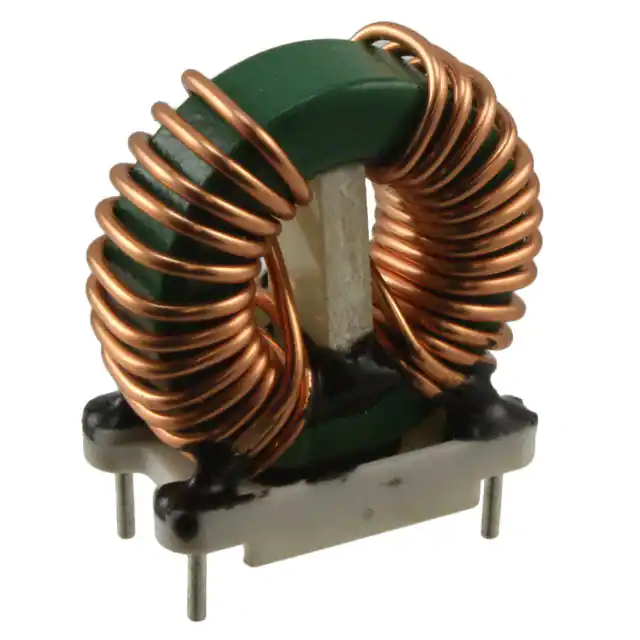

CMT-8108CMC 1MH 10A 2LN TH ESD |
1,576 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

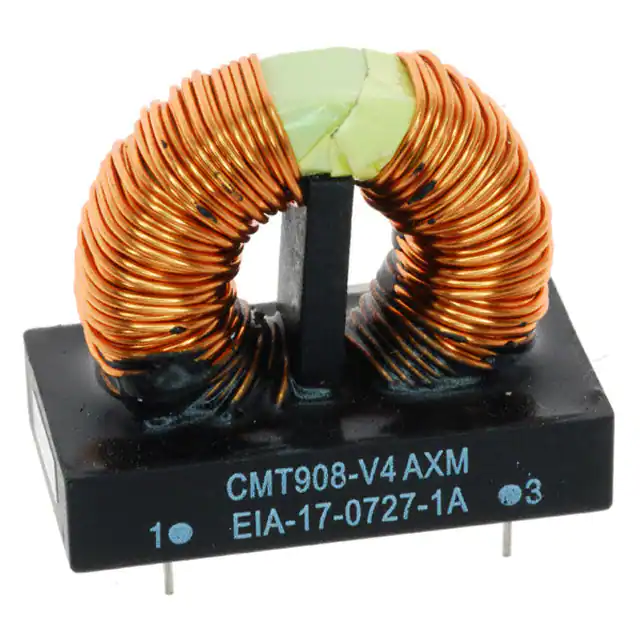

CMT908-V4CMC 16MH 2.6A 2LN TH ESD |
3,849 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 2.6A | 160mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8121CMC 1MH 20A 2LN TH ESD |
1,850 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

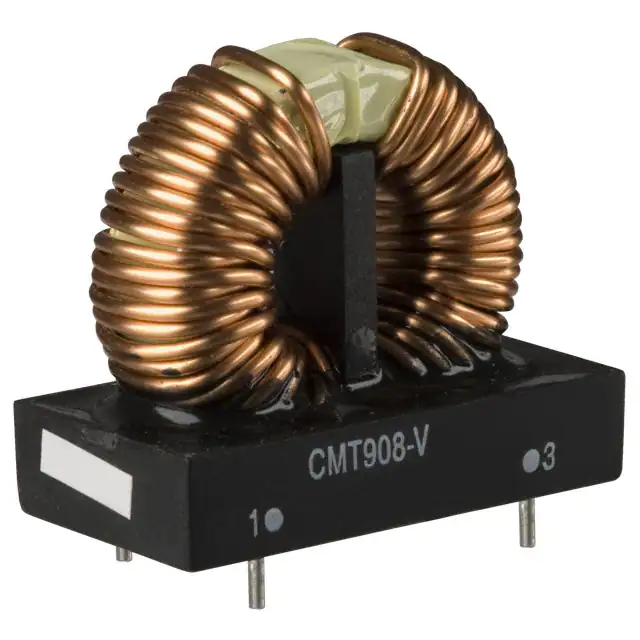

CMT908-V1CMC 2MH 7.5A 2LN TH ESD |
4,677 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|

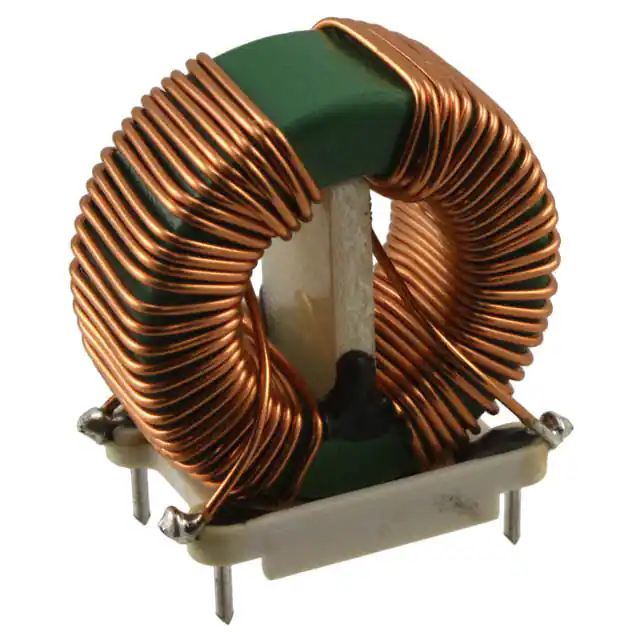

CMT-8112CMC 8MH 5.6A 2LN TH ESD |
4,286 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT-8119CMC 4MH 14.5A 2LN TH ESD |
6,312 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|

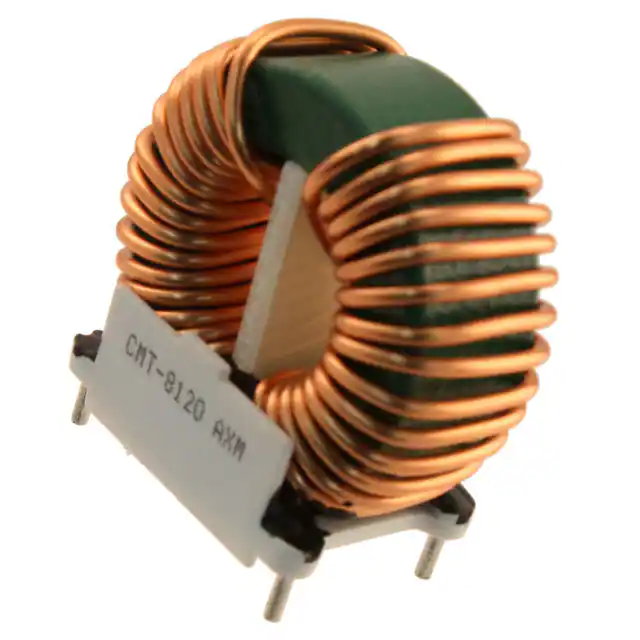

CMT-8120CMC 2.4MH 17A 2LN TH ESD |
2,649 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

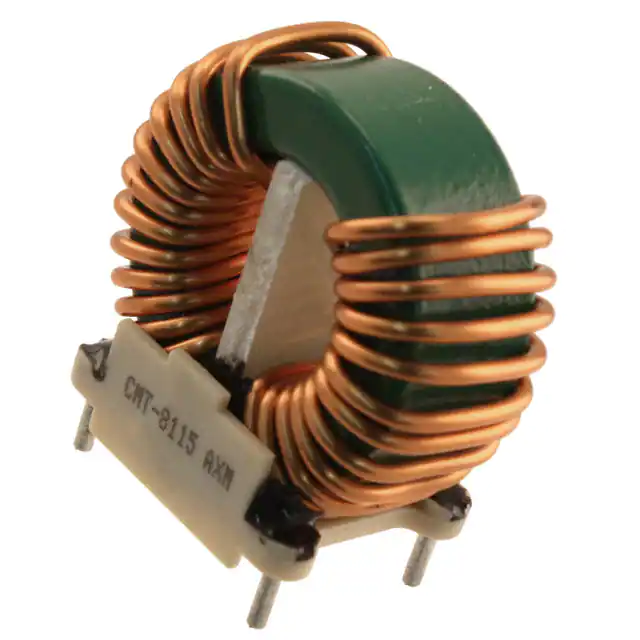

CMT-8115CMC 1.2MH 16A 2LN TH ESD |
359 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

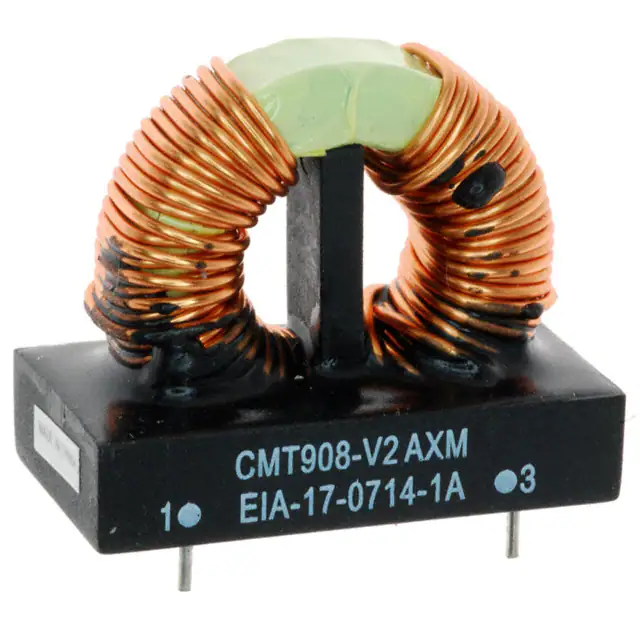

CMT908-V2CMC 4MH 5.2A 2LN TH ESD |
329 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|

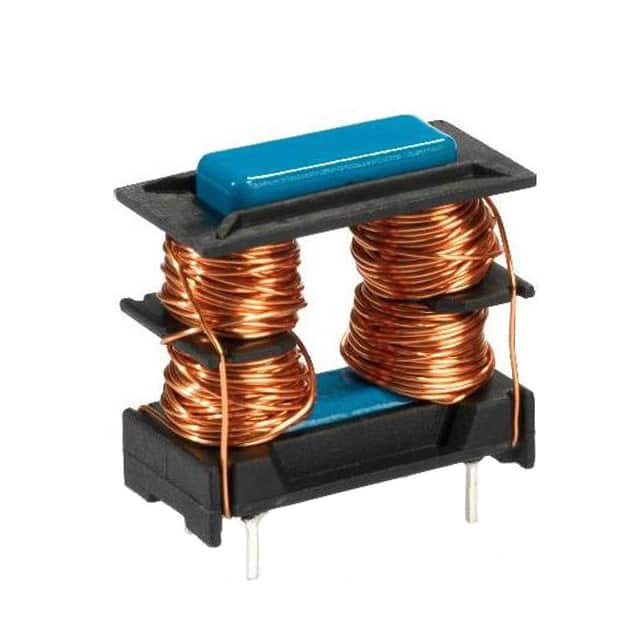

CMF23V-103231CMC 10MH 2.3A 2LN TH |
290 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.3A | 206mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
