Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

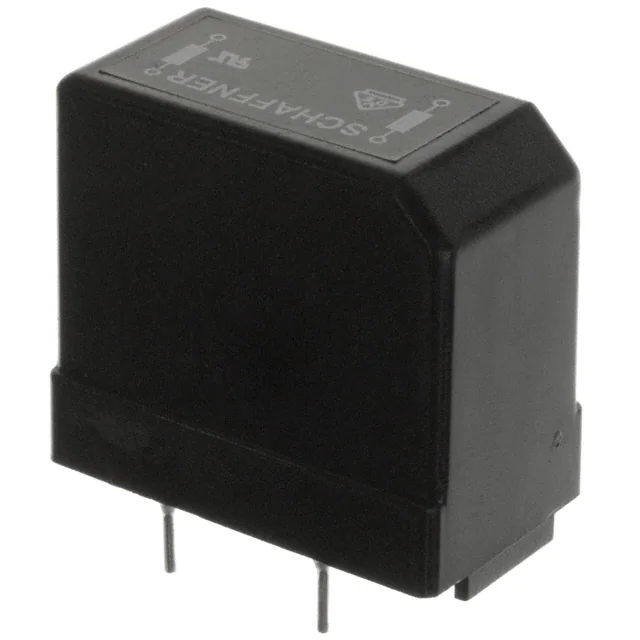

RN242-1-02CMC 33MH 1A 2LN TH |
4,438 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 1A (Typ) | 810mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-2-02CMC 6.8MH 2A 2LN TH |
3,199 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A (Typ) | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-4-02CMC 3.3MH 4A 2LN TH |
1,684 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 4A (Typ) | 66mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
RN242-6-02CMC 1.8MH 6A 2LN TH |
1,823 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN232-0.6-02COMMON MODE CHOKE 47MH 600MA |
3,063 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1.6-02COMMON MODE CHOKE 10MH 1.6A |
4,845 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-1-02COMMON MODE CHOKE 18MH 1A |
2,038 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-2.5-02COMMON MODE CHOKE 5.6MH 2.5A |
2,653 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RN232-4-02COMMON MODE CHOKE 3.3MH 4A |
2,154 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RN122-0.5-2-56CMC 56MH 500MA 2LN TH |
2,255 |
|
- |
Horizontal, 4 PC Pin | Power Line | 2 | - | 56 mH @ 10 kHz | 500mA | 1.8Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
