Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD6137-16-1M5CMC 1.5MH 16A 3LN TH |
2,541 |
|
Datasheet | - | Power Line | 3 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

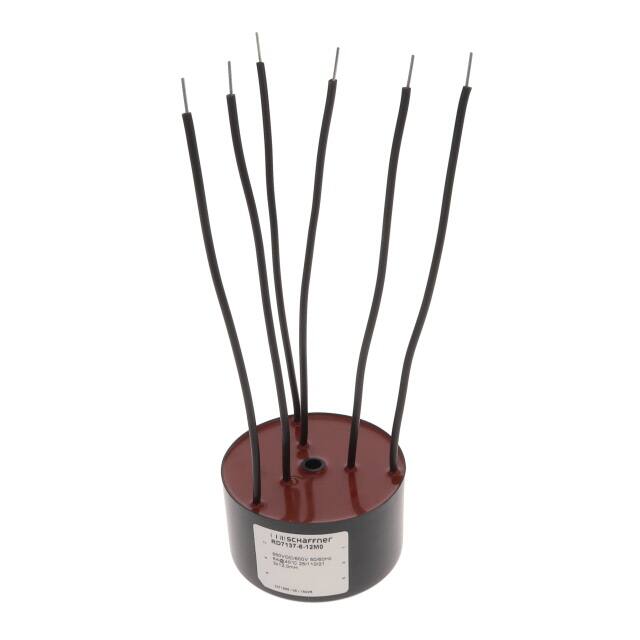

RD7127-6-25M0CMC 25MH 6A 2LN TH |
4,997 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 400 Hz | 6A (Typ) | 84.2mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-6-12M0CMC 12MH 6A 3LN TH |
1,750 |
|
Datasheet | - | Power Line | 3 | - | 12 mH @ 1 kHz | 6A (Typ) | 60.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-10-6M6CMC 6.6MH 10A 3LN TH |
1,107 |
|
Datasheet | - | Power Line | 3 | - | 6.6 mH @ 400 Hz | 10A (Typ) | 21.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-36-0M5CMC 500UH 36A 3LN TH |
3,287 |
|
Datasheet | - | Power Line | 3 | - | 500 µH @ 400 Hz | 36A (Typ) | 2.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-16-1M5CMC 1.5MH 16A 4LN TH |
4,113 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-25-0M7CMC 700UH 25A 4LN TH |
4,905 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 700 µH @ 1 kHz | 25A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-36-0M2CMC 200UH 36A 4LN TH |
1,704 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 200 µH @ 400 Hz | 36A (Typ) | 2.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8137-50-0M6CMC 600UH 50A 3LN TH |
4,535 |
|
Datasheet | - | Power Line | 3 | - | 600 µH @ 400 Hz | 50A (Typ) | 2.15mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8147-16-3M0CMC 3MH 16A 4LN TH |
3,962 |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 3 mH @ 400 Hz | 16A (Typ) | 9.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
